Chapter3 Mounting
F3SJ-E/B
User’s Manual
Wiring/Installation

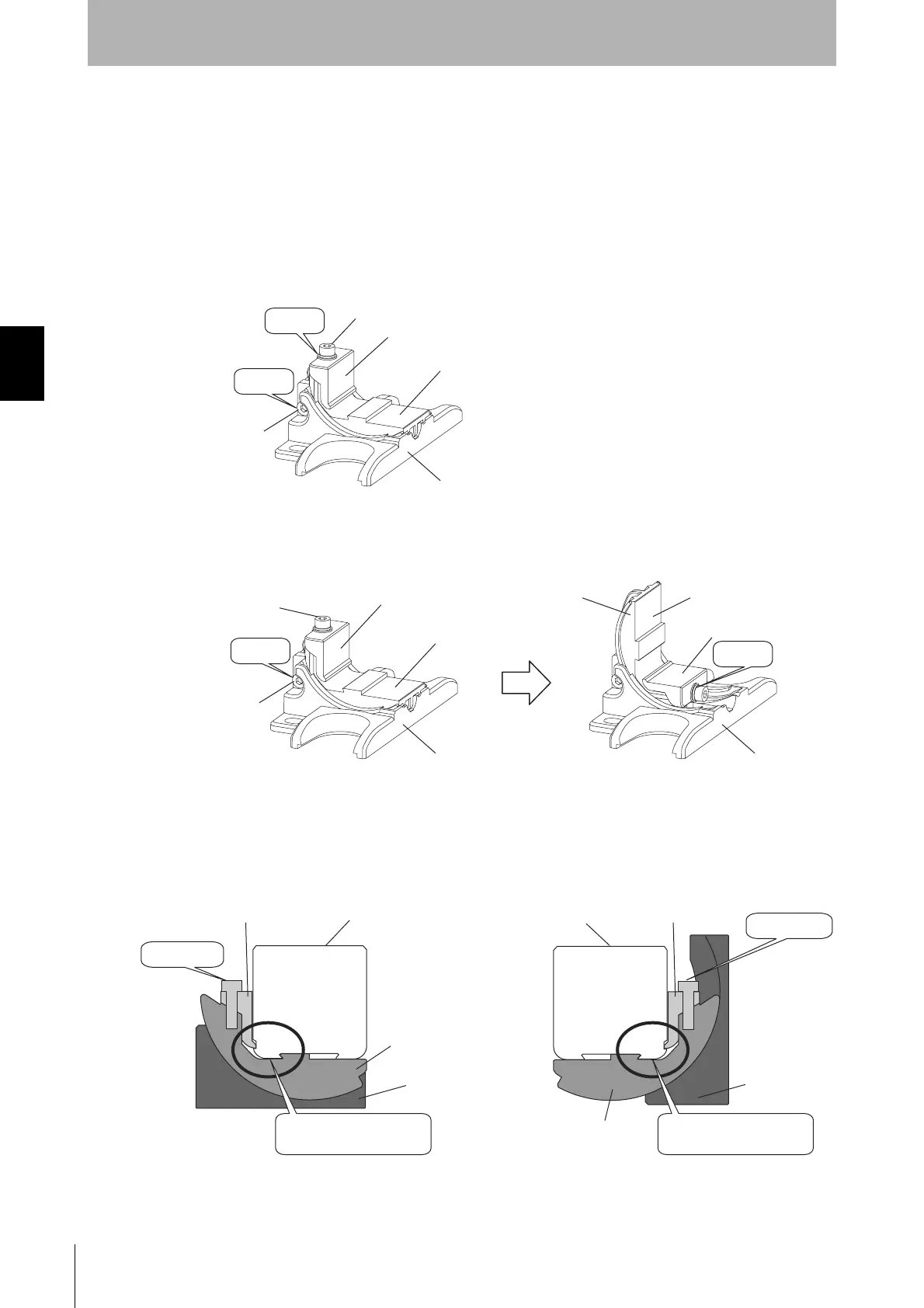

 When using Intermediate Bracket (Free-Location Mounting)
1. Loosen the hexagon socket head cap screws (M3 x 18) of Intermediate Bracket (3) and change the
direction of Intermediate Bracket (2) according to its mounting direction. (Figure 15 and 16)
Next, loosen the hexagon socket head cap screws (M3 x 12) of Intermediate Bracket (1) so that it can
be mounted to the case of the sensor.
For side mounting, the direction of Intermediate Bracket (2) that is inserted into Intermediate Bracket
(3) can be left-right in reverse.
2. Mount the Intermediate Bracket to the case, and lightly tighten the hexagon socket head cap screws
(M3 x 12) of Intermediate Bracket (1). (Figure 17)
Intermediate Bracket (1)
Hexagon socket head
cap screw (M3 x 12)
Hexagon socket head
cap screw (M3 x 18)
Loosen
Intermediate Bracket (2)
Intermediate Bracket (3)
Loosen
Backside mounting
Figure 15
Hexagon socket head
cap screw (M3 x 18)
Hexagon socket head
cap screw (M3 x 12)
Intermediate Bracket (1)
Loosen
Intermediate Bracket (2)
Intermediate Bracket (3)
Intermediate Bracket (1)
Loosen
Intermediate
Bracket (2)
Change the direction of
Intermediate Bracket (2) and insert it
into Intermediate Bracket (3).
Intermediate Bracket (3)
Side mounting
Figure 16
Intermediate Bracket (1) Intermediate Bracket (1)
Tighten lightly
Intermediate
Bracket (2)
Intermediate Bracket (2)
Intermediate
Bracket (3)
Intermediate
Bracket (3)
Sensor is secured by
Intermediate Brackets.
Sensor is secured by
Intermediate Brackets.
Side mountingBackside mounting
Optical surface
Optical surface
Tighten lightly
Figure 17
