Omron fh series Hardware Manual

3 Configuration
3 - 6
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

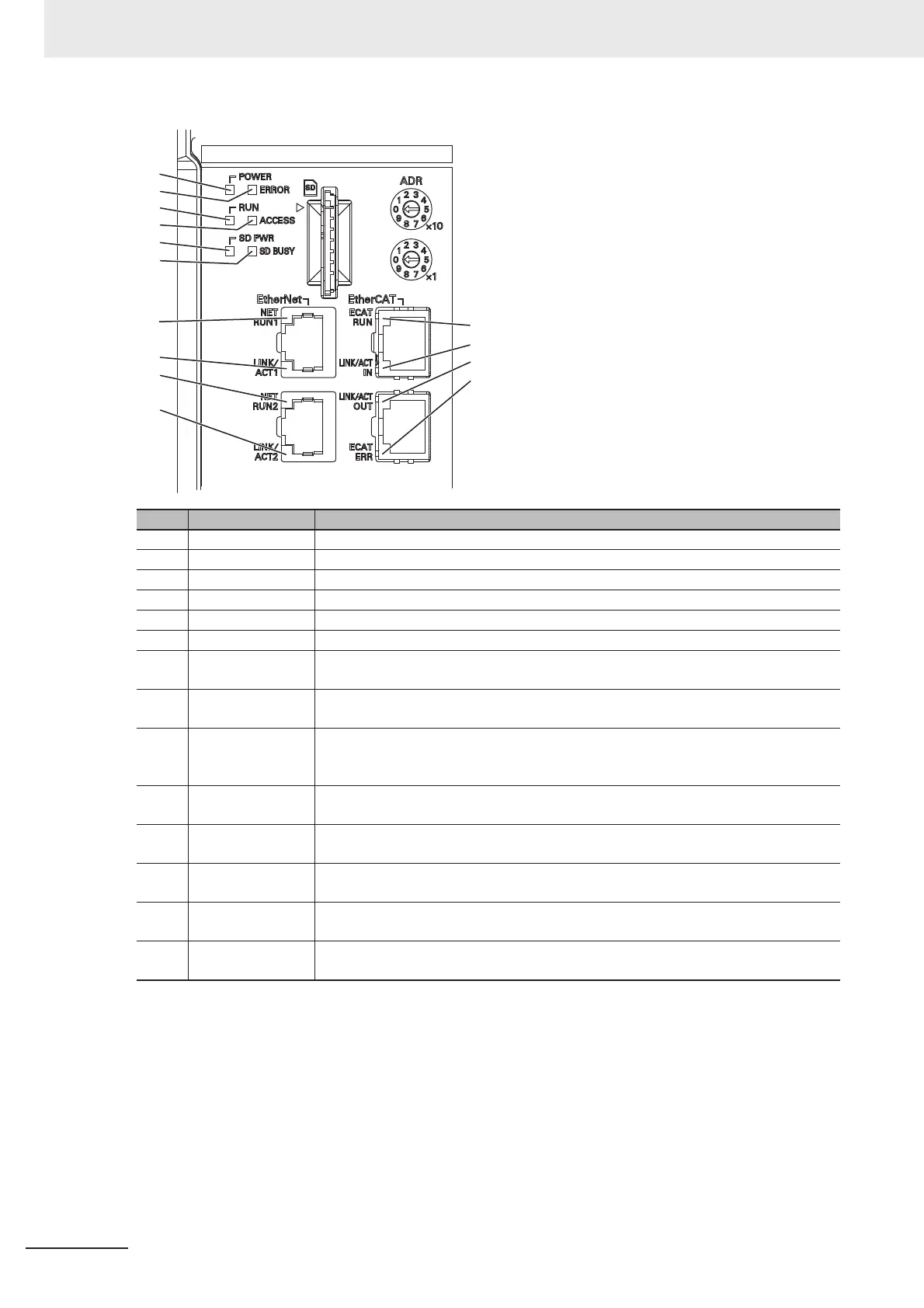

LED name Description
(A) POWER LED Lit while power is ON.
(B) ERROR LED Lit when an error has occurred.
(C) RUN LED Lit while the layout turned on output setting is displayed.
(D) ACCESS LED Blinks while the internal nonvolatile memory is accessed.
(E) SD POWER LED Lit while power is supplied to the SD memory card and the card is usable.
(F) SD BUSY LED Blinks while the SD memory card is accessed.
(G) EtherCAT RUN
LED
Lit while EtherCAT communications are usable.
(H) EtherCAT
LINK/ACT IN LED
Lit when connected with an EtherCAT device, and blinks while performing commu-
nications.
(I) EtherCAT
LINK/ACT OUT
LED
Lit when connected with an EtherCAT device, and blinks while performing commu-
nications.
(J) EtherCAT ERR
LED
Lit when EtherCAT communications have become abnormal.
(K) Ethernet NET
RUN1 LED
Lit while Ethernet communications are usable.
(L) Ethernet NET
LINK/ACK1
Lit when connected with an Ethernet device, and blinks while performing communi-
cations.
(M) Ethernet NET
RUN2 LED
Lit when Ethernet communications are usable.
(N) Ethernet NET
LINK/ACK2 LED
Lit when connected with an Ethernet device, and blinks while performing communi-
cations.
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(K)
(L)
(M)
(N)

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
