Additional Information
The Sysmac Studio cannot connect online to an NJ/NX-series CPU Unit in the following type of
configuration.
• If the built-in EtherNet/IP port is not used, you cannot connect to an NJ/NX-series CPU Unit
on an EtherNet/IP network.

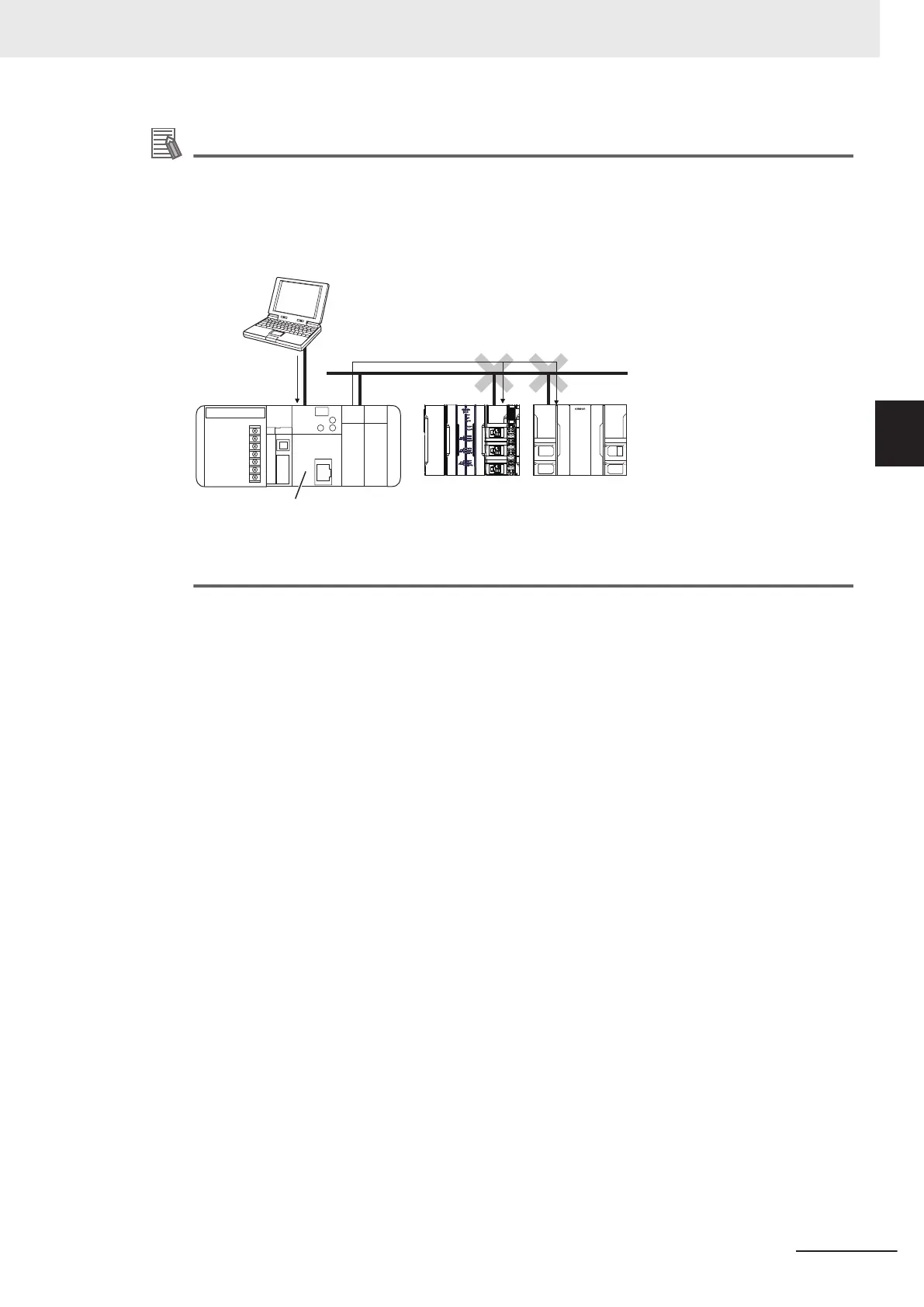

Example: Connection to NJ/NX-series CPU Unit Routing through an EtherNet/IP Unit or Built-in
EtherNet/IP Port
Sysmac Studio
USB
EtherNet/IP
CS1W-EIP21, CJ1W-EIP21, CJ2
Built-in EtherNet/IP port, or
CJ2M Built-in EtherNet/IP port
POWER
PORT2
• You cannot route through any networks other than EtherNet/IP networks.
3 Configuration Units
3-19
NX-series NX502 CPU Unit Hardware User's Manual (W629)
3-6 Sysmac Studio
3
3-6-2 Connection
