Omron NX Series Hardware User Manual

1)
2
)
l
Using CLIPFIX 35 (Phoenix Contact)

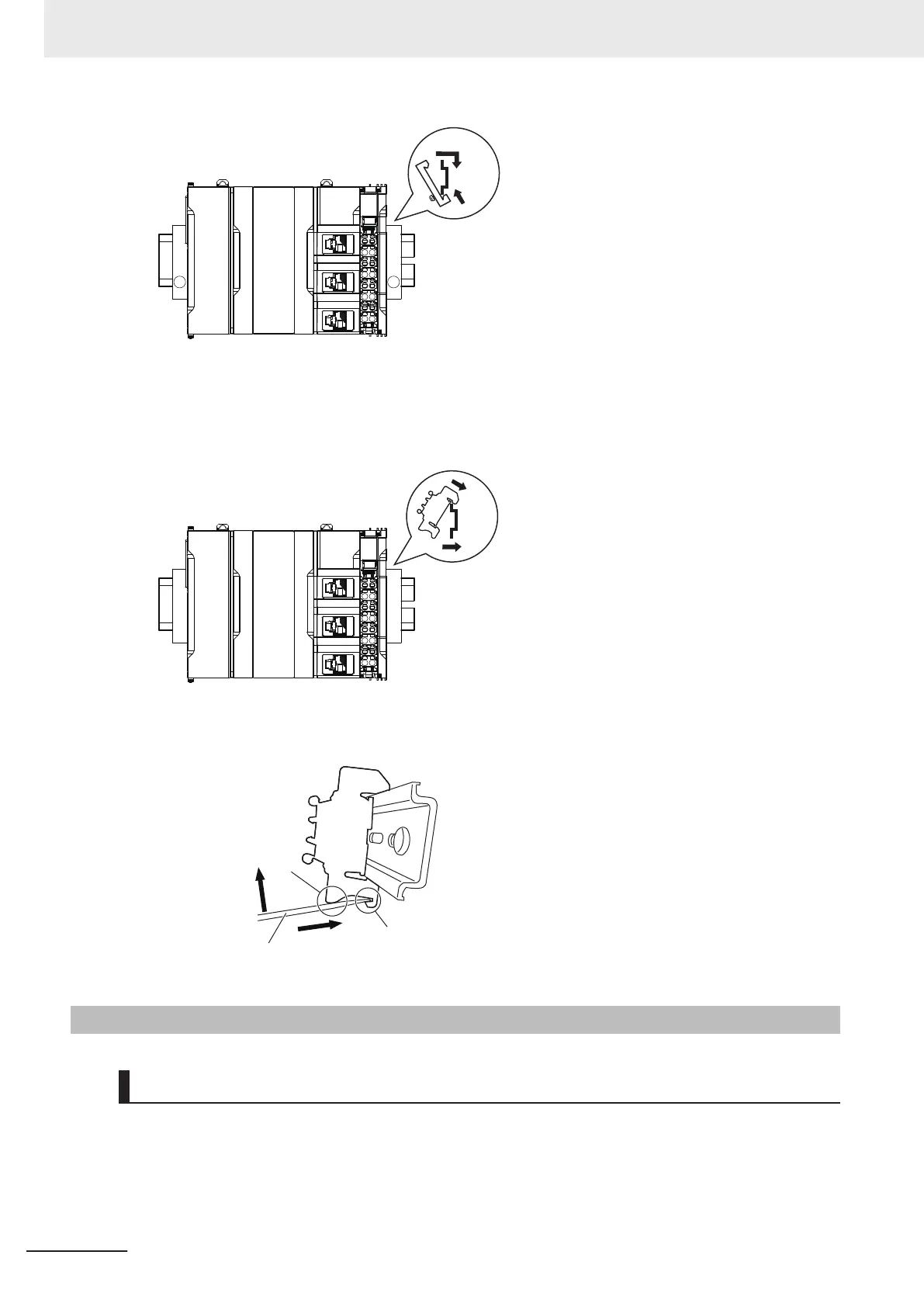

To mount an End Plate, 1) hook the top of it on the top of the DIN Track and 2) rotate the Plate to
hook the bottom of it on the bottom of the DIN Track. Press in until you hear the End Plate lock into
place.
1)
2)
To remove an End Plate 1) insert the tip of a flat-blade screwdriver into groove “a” and 2) use “b” as
a fulcrum and lift the end of the screwdriver, as shown in the following diagram.
a
b
Flat-blade screwdriver
1)
2
)
5-3-9
Installing and Removing the SD Memory Card
Before Using an SD Memory Card
• Keep the following precautions because an SD Memory Card may become unusable.
a) Do not turn OFF the power supply to the Controller while the SD BUSY indicator is lit (i.e., while
SD Memory Card access is in progress).
The SD BUSY indicator is lit when the SD Memory Card is accessed from the user program or
from a computer through FTP
.
5 Installation and Wiring
5-24
NX-series NX502 CPU Unit Hardware User's Manual (W629)
