Sysmac Studio
The Sysmac Studio is a Support Software package that provides an integrated development environ-
ment to design, program, debug, and maintain NJ/NX-series Controllers.
This section describes the models and connecting methods of the Sysmac Studio.
3-6-1
Model Numbers
The model numbers of the Sysmac Studio are given in the following table. The model numbers are
different for the media and licenses.
Product Configuration software Media
Number of
user licens-
es
Model
Sysmac Studio
Standard Edition
Sysmac Studio
The following Support Software is also
included.
Network Configurator
CX-Integrator
CX-Protocol
CX-Designer
DVD --- SYSMAC-SE200D
Licenses 1 SYSMAC-SE201L
3 SYSMAC-SE203L
10 SYSMAC-SE210L
3-6-2
Connection

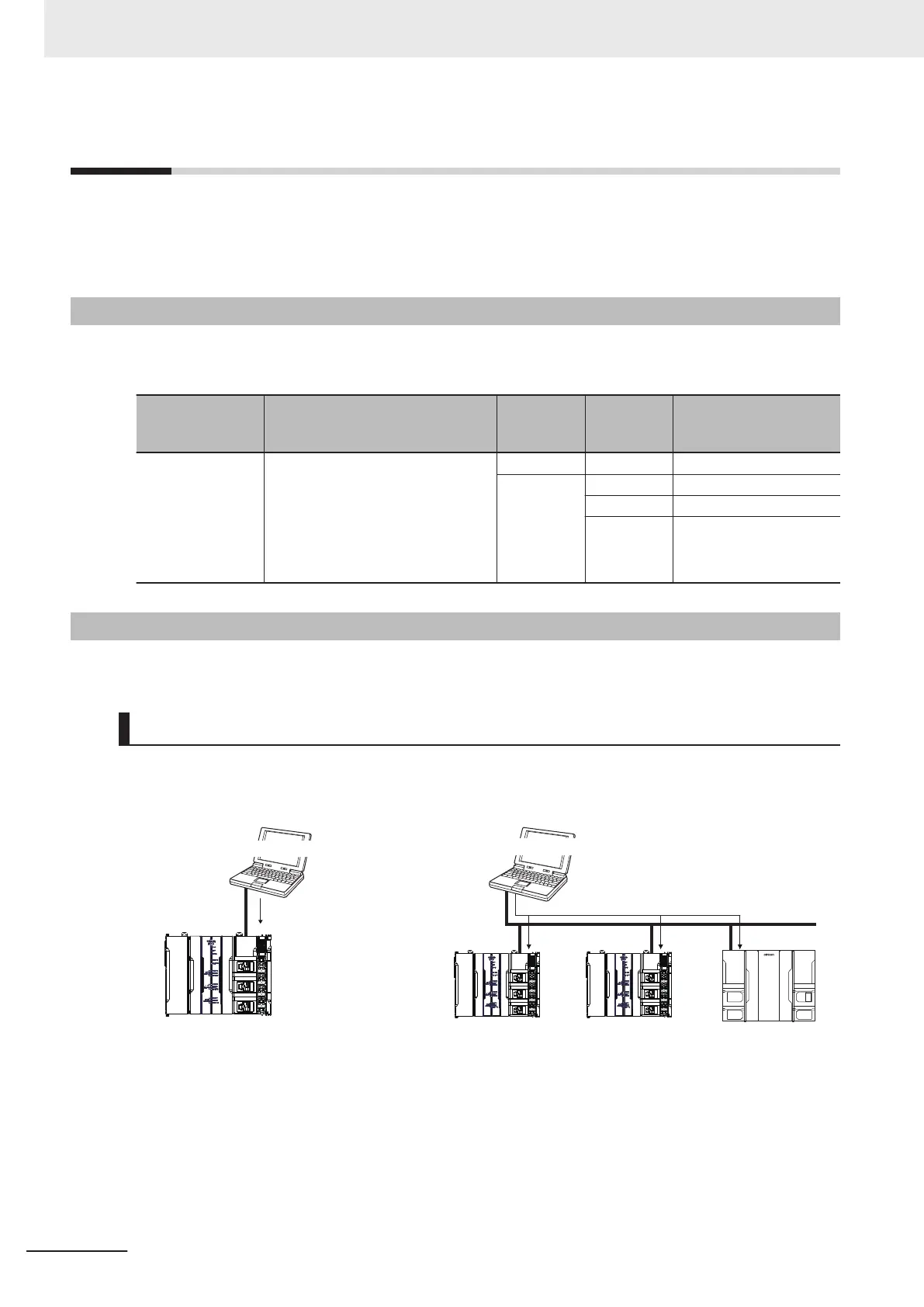

With an NX502 CPU Unit, you can connect the Sysmac Studio online in the following ways.
Configuration
l
Connection with EtherNet/IP
• 1:1 Connection • 1:N Connection
EtherNet/IP
Sysmac Studio
POWER
PORT2
EtherNet/IP
Sysmac Studio
POWER
PORT2
POWER
PORT2
• A direct connection is made from the com-
puter that runs Sysmac Studio. Y
ou do not
need to specify the IP address or connec-
tion device.
*1
• Y
ou can make the connection whether or
not an Ethernet switch is used.
• Support for Auto-MDI enables the use of
cross cables or straight cables if a direct
connection is made.
• Directly specify the IP address of the remote device.
• It is also possible to connect via NX-series EtherNet/IP Units.
*1. This function is available only when you connect Sysmac Studio to the built-in EtherNet/IP port (PORT1).
3 Configuration Units
3-18
NX-series NX502 CPU Unit Hardware User's Manual (W629)
