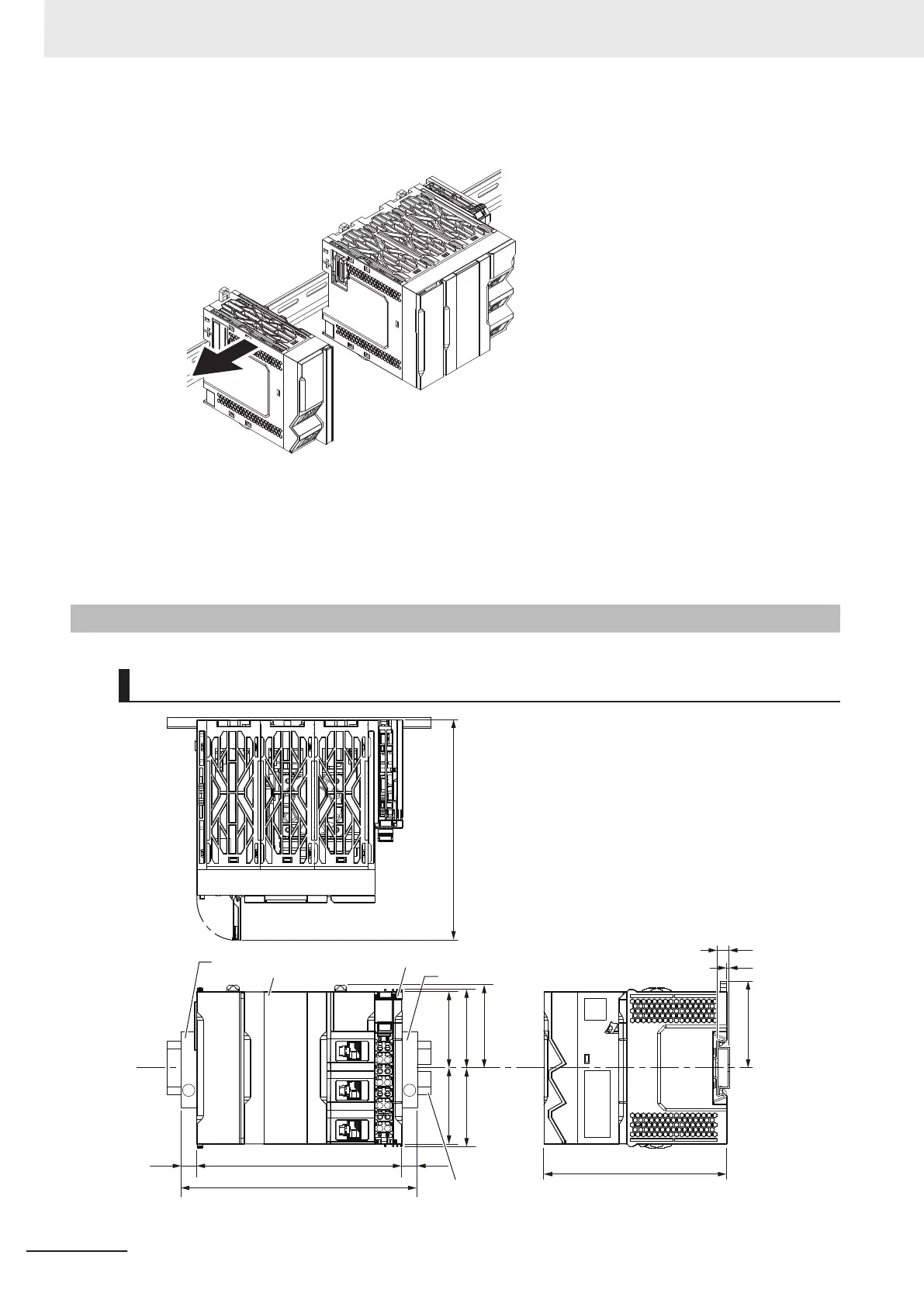

2 Slide the Unit to the left on the DIN Track to remove it.
3 Remove the Unit from the DIN Track.
Tilt the Unit diagonally upwards and pull it up slightly
, then pull it out to remove. Be careful not
to drop it.
5-3-14
Assembled Appearance and Dimensions
Installation Dimensions
Approx. 145
(Memory Card cover maximum range
of motion)
End Plate
CPU Unit End Plate
End Cover
135+(C)+(C)
135
(C)
(C)
54.5
51.5
51.5
5050
DIN Track
Center
line
of DIN
Track
(A)
(B)
56.9
(When DIN Track
mounting hook is
unlocked)
120
Unit: (mm)
5 Installation and Wiring
5-32
NX-series NX502 CPU Unit Hardware User's Manual (W629)
