Precautions for Safe Use
The End Cover has a metal portion and is heavier than it looks. Be careful not to drop it when
handling.
Precautions for Correct Use
Always mount an End Cover to the end of the CPU Rack to protect the last Unit on the CPU
Rack. Not mounting the End Cover may result in malfunction or failure of the CPU Unit.

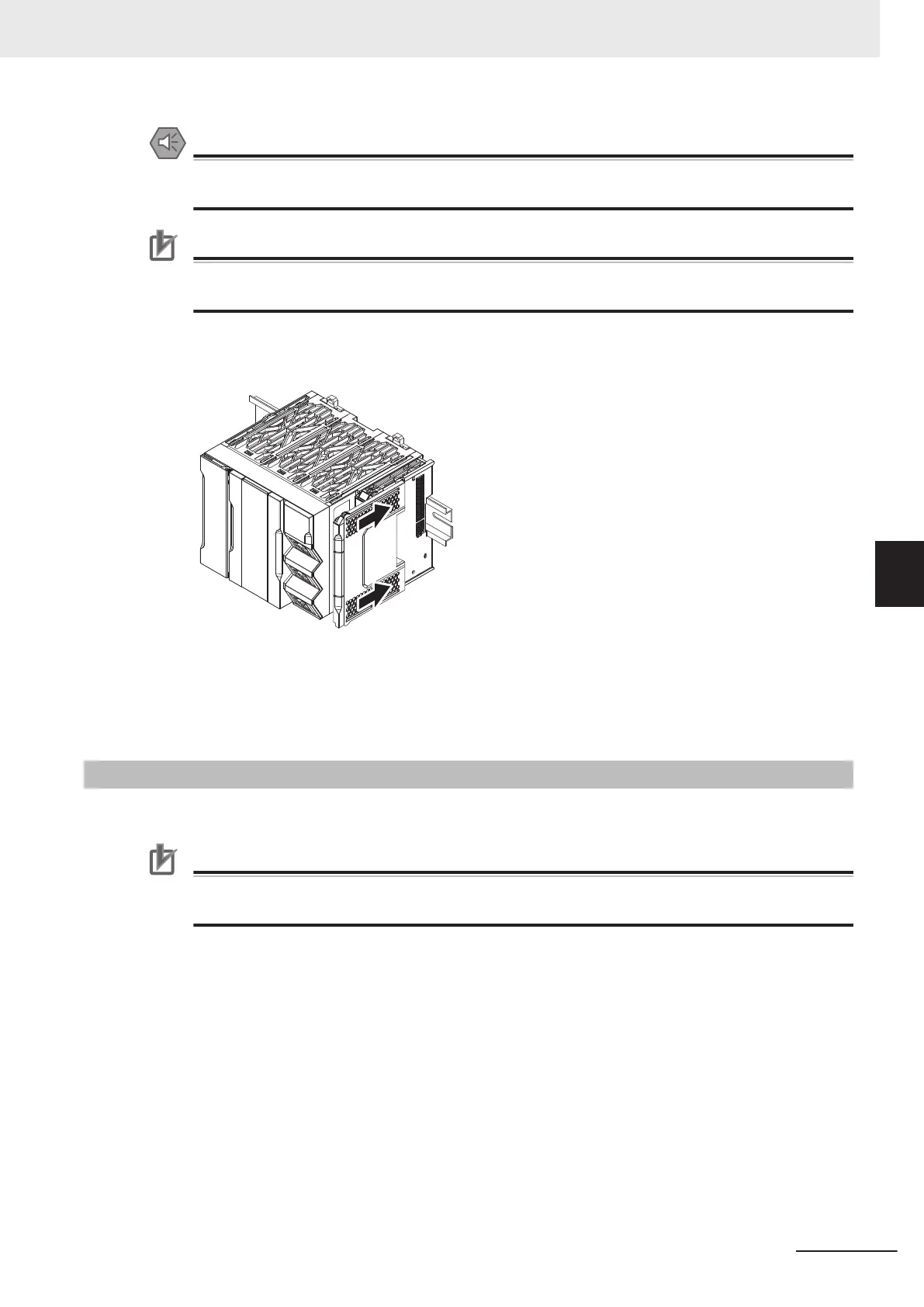

1 From the front of the rightmost Unit, slide the End Cover along the Unit hookup guides on the
rightmost Unit on the CPU Rack.
2 Press the End Cover firmly against the DIN Track until you hear it lock into place on the DIN
T
rack.
After you mount the End Cover
, make sure that it is securely mounted on the DIN Track.
5-3-8
Mounting the End Plates
After you mount the End Cover, always secure the Unit with End Plates at both sides.
Precautions for Correct Use
After you mount the Unit on the DIN Track, always secure it with End Plates at both sides. If you
do not secure it, the Unit may be damaged or malfunction.
l
Using PFP-M (OMRON)
To mount an End Plate, 1) hook the bottom of it on the bottom of the DIN Track and 2) rotate the
End Plate to hook the top of it on the top of the DIN T
rack.
Then tighten the screw to lock the End Plate in place.
5 Installation and Wiring
5-23
NX-series NX502 CPU Unit Hardware User's Manual (W629)
5-3 Mounting and Removing Units
5
5-3-8 Mounting the End Plates
