Omron NX Series - A-2 Dimensions; A-2-1 NX-Series NX502 CPU Unit; NX-Series NX502 CPU Unit

A-2
Dimensions

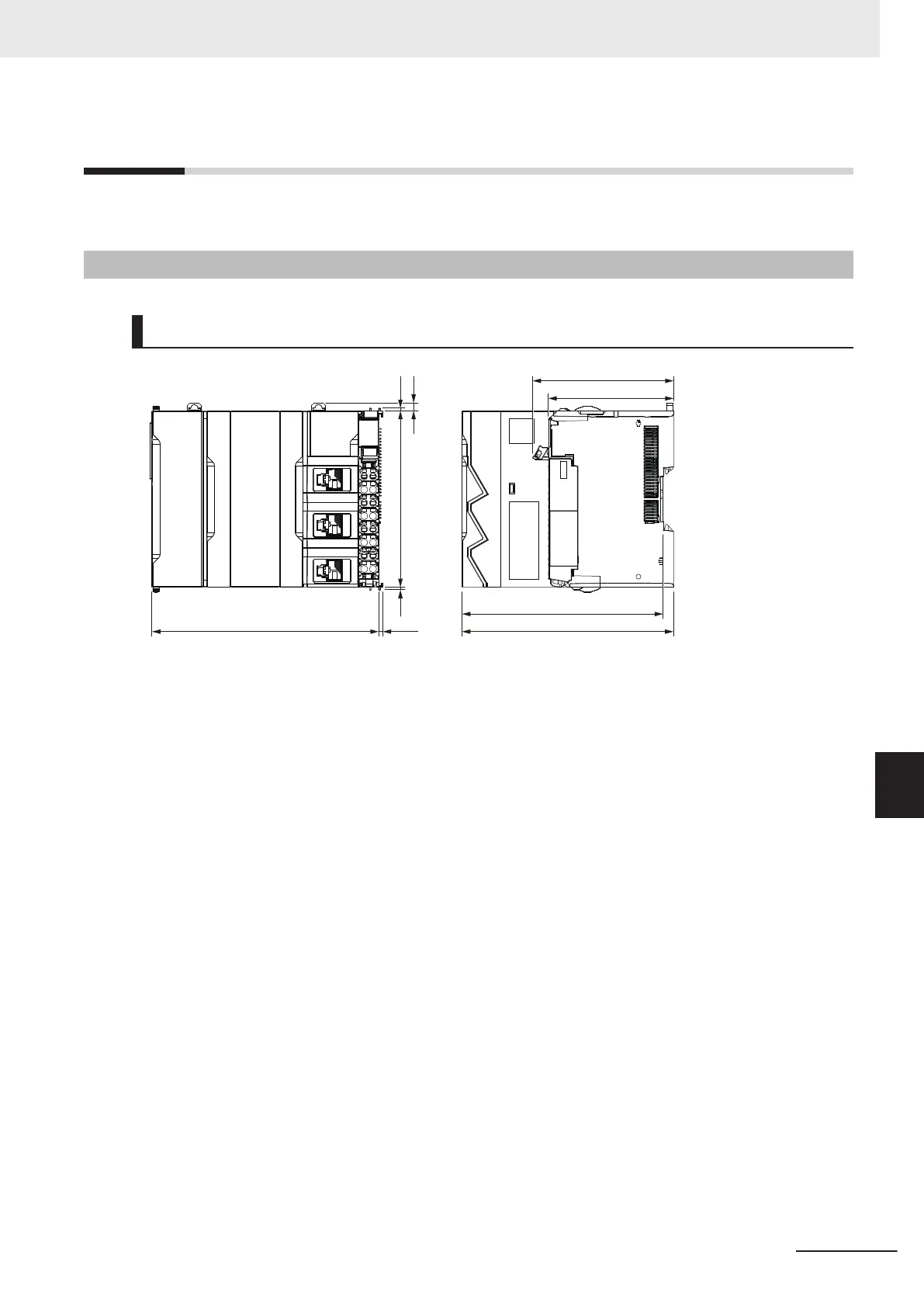

Dimensions of the Units are shown as follows. The unit of dimension is millimeter.
A-2-1
NX-series NX502 CPU Unit
NX502-££££
128.5
100
Unit: (mm)
4.5 1.5
1.5
2.45
80
*1
71
114.2
*
2
120
*1. The dimension from the terminal block lock lever to the back surface of the CPU Unit.
*2. The dimension from the attachment surface of the DIN Track to the front surface of the CPU Unit.
For dimensions after attaching the communications cables, refer to 5-3-14 Assembled Appearance
and Dimensions on page 5-32.
