Markers
The marker attachment locations on the NX Units depend on the type of external connection termi-
nals. Refer to the user
’
s manual for the NX Units that you will use for the marker attachment locations.
l
Installation Method

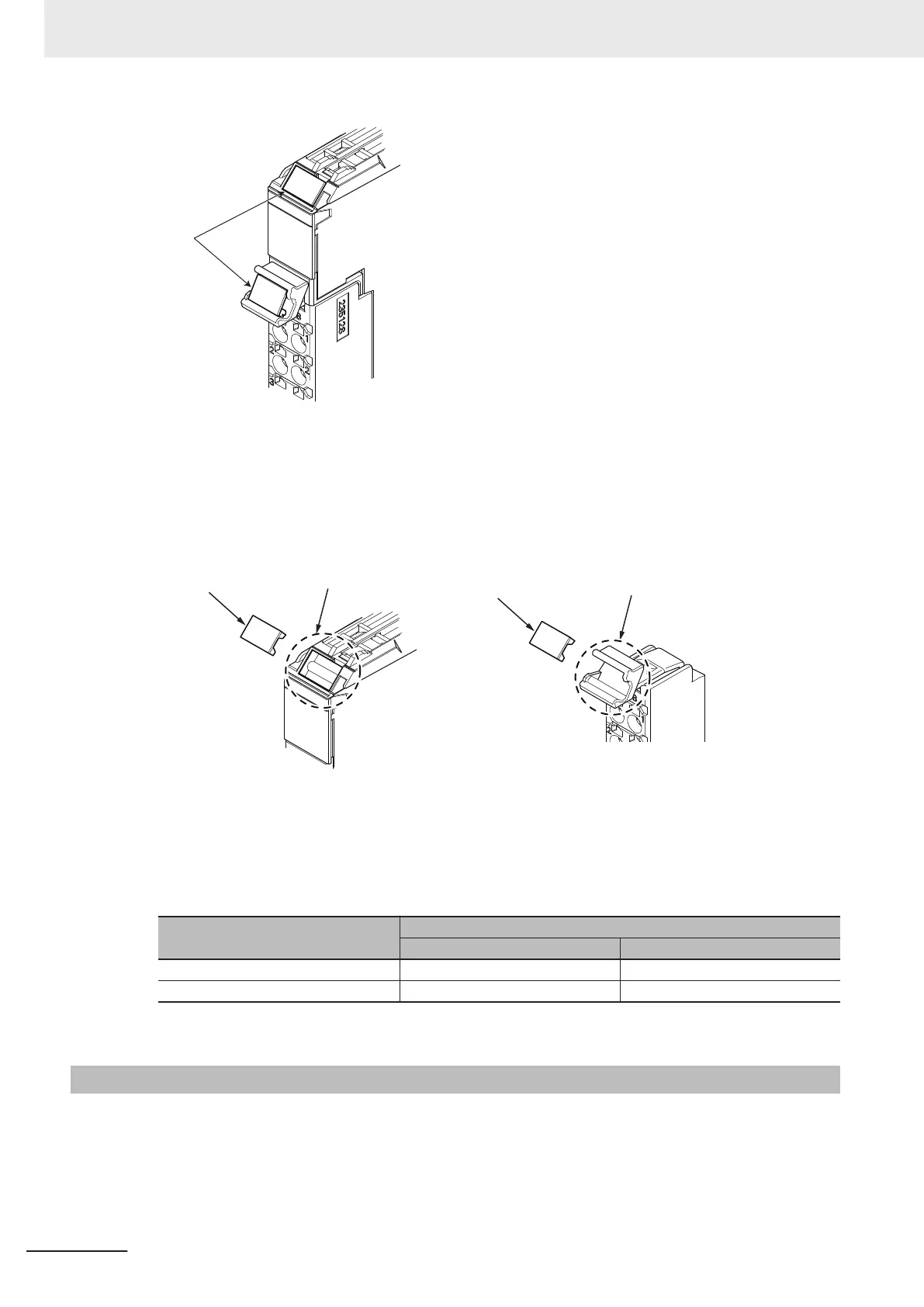

Insert the protrusions on the markers into the marker attachment locations on the NX Units and ter-
minal blocks on NX Units.
Marker
Marker
Marker attachment location
Marker attachment location
<Terminal block><Unit>
l
Commercially Available Markers
Commercially available markers are made of plastic and can be printed on with a special printer.
To use commercially available markers, purchase the following products.
Product name
Model number
Manufactured by Phoenix Contact Manufactured by Weidmuller
Markers UC1-TMF8 DEK 5/8
Special marker printer UM EN BLUEMARK X1 PrintJet PRO
The markers made by OMRON cannot be printed on with commercially available special printers.
5-3-5
Installing and Connecting NX Units
This section describes how to mount NX Units to the CPU Unit and how to connect NX Units to each
other.
