Omron NX1P2 series Hardware User Manual

Connecting/Removing Wires
This section describes how to connect and remove wires.
l

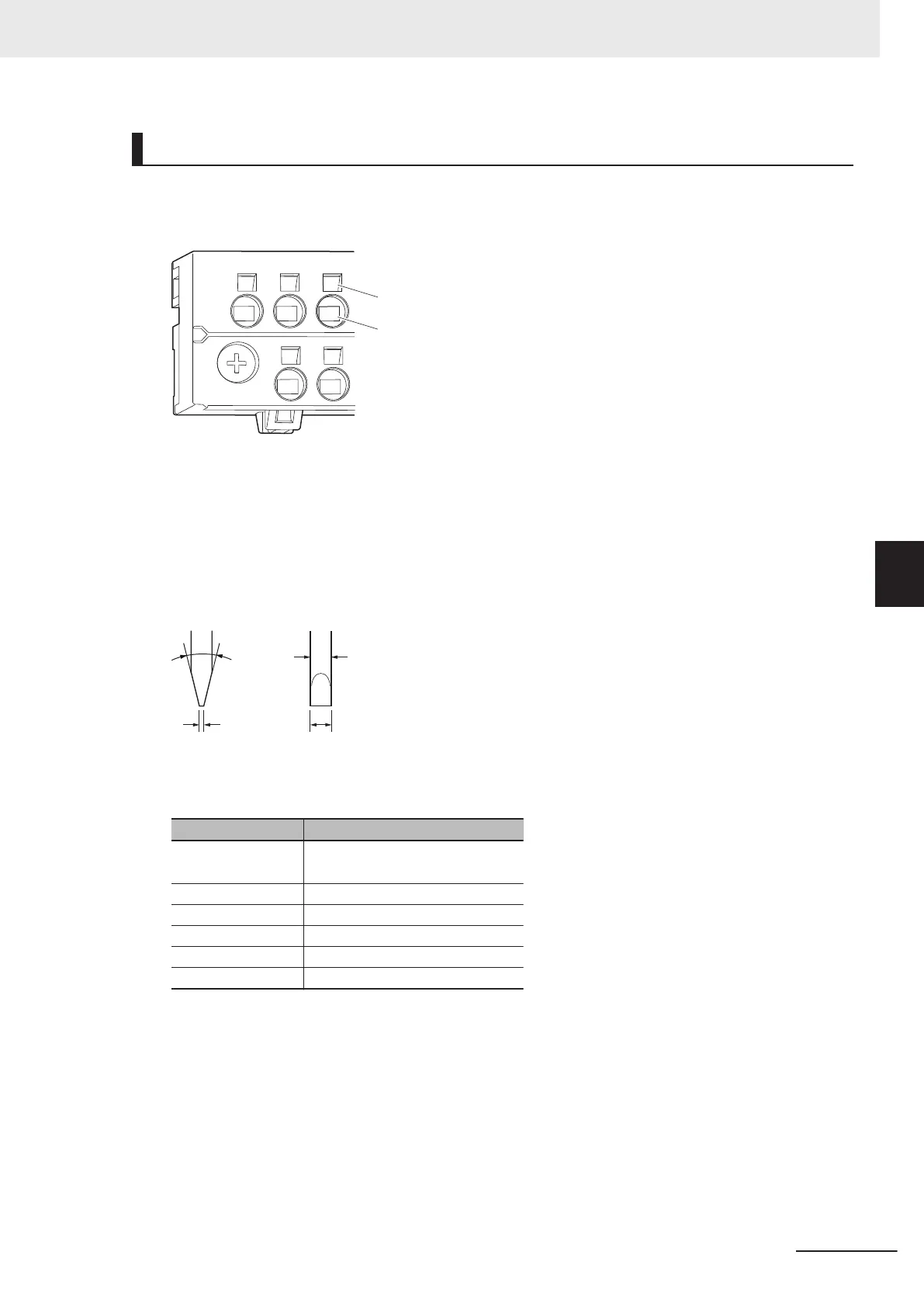

Terminal Block Parts and Names
Release hole
Terminal hole
The above figure shows the output terminal block at the bottom. For the input terminal block, turn it
upside down.
l
Required Tools
Use a flat-blade screwdriver to connect and remove wires.
Use the following flat-blade screwdriver.
2.5 mm
0.4 mm
Front view
8 to 12°
Side view
2.5-mm dia.
Recommended screwdriver model
Model Manufacturer
SZS 0,4×2,5
SZF 0-0,4×2,5
*1
Phoenix Contact
ESD 0.40×2.5 Wera
0,4×2,5×75 302 Wiha
AEF.2,5×75 Facom
210-719 Wago
SDI 0.4×2.5×75 Weidmuller
*1. You can purchase the SZF 0-0,4×2,5 screwdriver (manufactured by Phoenix Contact) from OMRON by specifying the
OMRON's model number (XW4Z-00B).
5 Installation and Wiring
5-55
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-4 Wiring
5
5-4-8 Wiring to the CPU Unit Terminal Block

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
