STC-MBS122BPOE / STC-MCS122BPOE
Product Specifications and User’s Guide

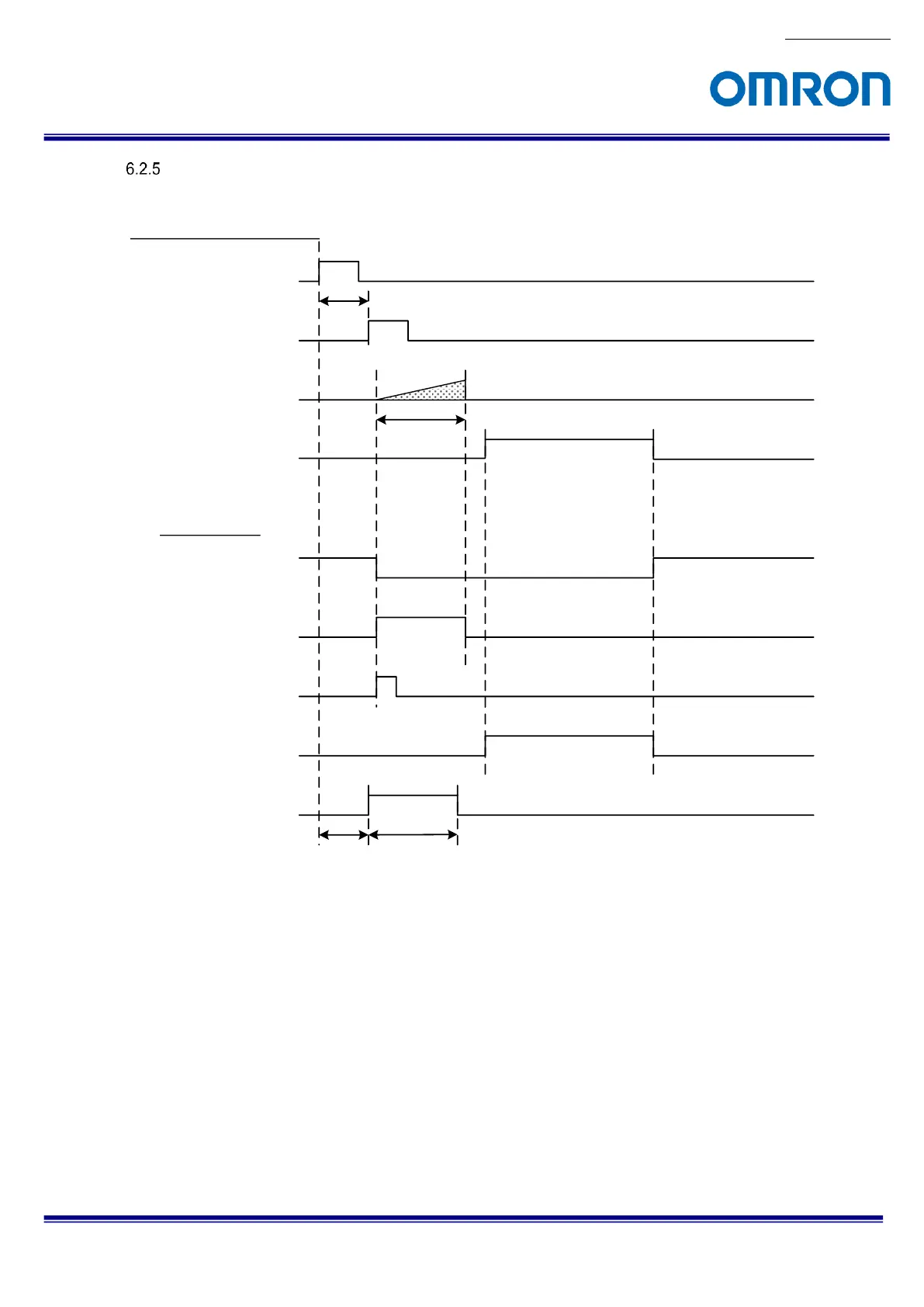

Input and Output Signal Timing (Software Trigger)
Case of “Software Trigger”, “Timed Exposure Mode” and “Positive Edge Trigger”
Software trigger
Trigger delay
Exposure
Image out
Camera internal processing
Output signals
FrameTriggerWait
ExposureActive
FramTriggerInternal
SensorReadOut
Timer0
Parameter 󳆟ExposureTime󳆠 on GenICam
Parameter 󳆟TriggerDelay󳆠 on GenICam
Parameter 󳆟TimerDelay󳆠 on GenICam
Parameter 󳆟TimerDuration󳆠 on GenICam
