STC-MBS122BPOE / STC-MCS122BPOE
Product Specifications and User’s Guide

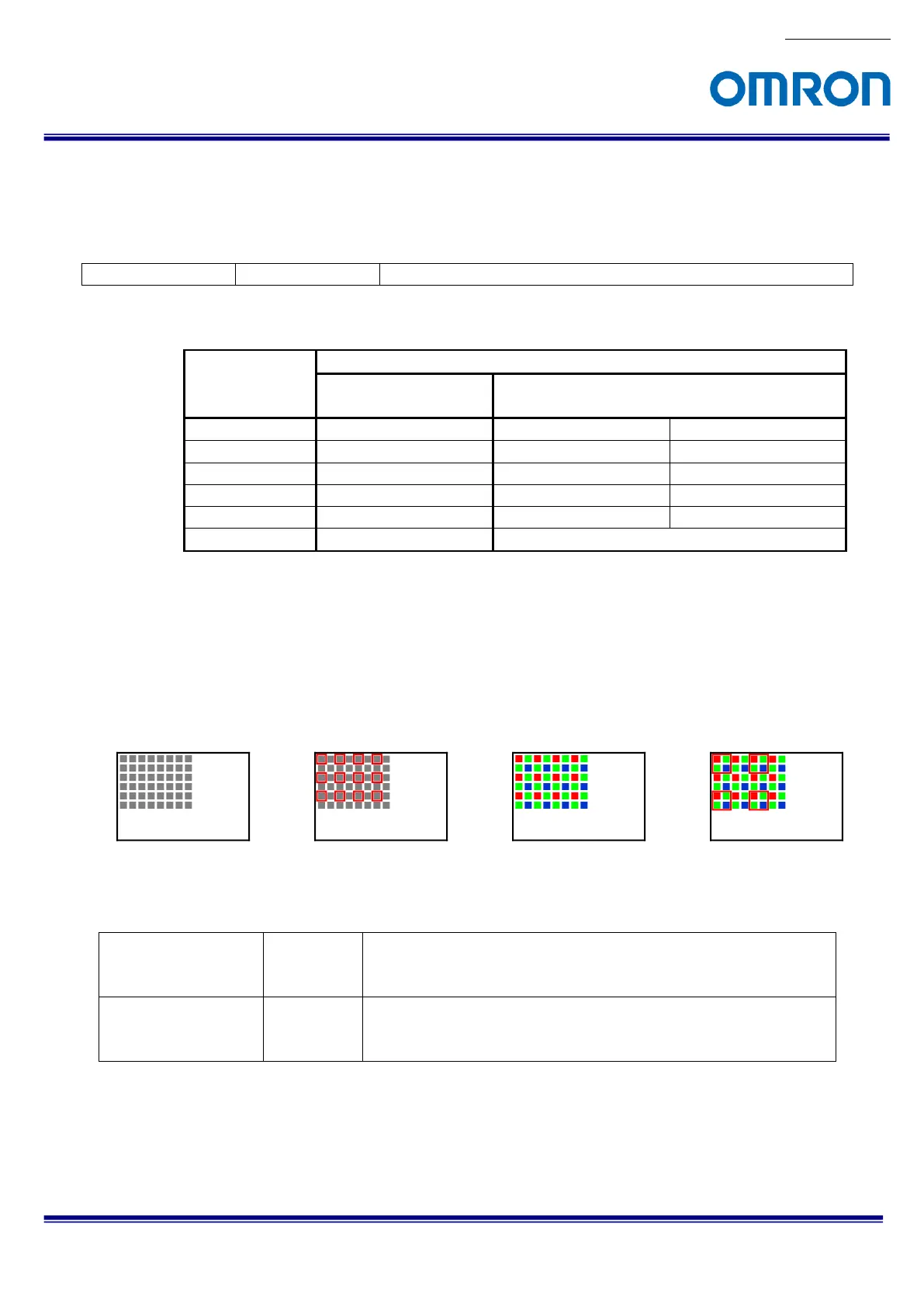

10.10 Pixel Format
The image format from camera can be set on PixelFormat.
GenICam Parameters
PixelFormat
IEnumeration Type
Pixel Format
The following chart shows the available Pixel Formats on camera:
Output Bits
Pixel Format
Monochrome Camera
STC-MBS122BPOE
Color Camera
STC-MCS122BPOE
8bits
Mono8
Mono8
BayerRG8
10bits
Mono10
Mono10
BayerRG10
10bits Packed
Mono10Packed
Mono10Packed
BayerRG10Packed
12bits
Mono12
Mono12
BayerRG12
12bits Packed
Mono12Packed
Mono12Packed
BayerRG12Packed
8bits x 3
N/A
RGB8
Each format specified on GenICam PFNC (Pixel Format Naming Convention).
10.11 Decimation
When using Decimation mode, the decimated image can be output.
The images below show decimated pixels (red squares) where they are output.
＜STC-MBS122BPOE＞ ＜STC-MCS122BPOE＞
Decimation X (OFF), Y (OFF) Decimation X (OFF), Y (OFF)Decimation X (ON), Y (ON) Decimation X (ON), Y (ON)
GenICam Parameter
DecimationHorizontal
IInteger Type
Sets decimation on horizontal direction
Selection: 1: Disable Decimation, 2: Decimate one of two pixels
Default: Disable Decimation
DecimationVertical
IInteger Type
Sets decimation on vertical direction
Selection: 1: Disable Decimation, 2: Decimate one of two pixels
Default: Disable Decimation
(*1) Decimation cannot change horizontal only or vertical only. Selection applies for horizontal and vertical.
(*2) It is necessary to change exposure time (to shorten exposure time), to increase frame rate when using
Decimation.
