9.3 Edge Preset Trigger Mode
In this trigger mode with positive polarity, the expose starts at rising edge of trigger signal. The exposure duration
time is based on preset exposure setting stored by camera setting communication.
In this trigger mode with negative polarity, the expose starts at falling edge of trigger signal. The exposure duration
time is based on preset exposure setting stored by camera setting communication.

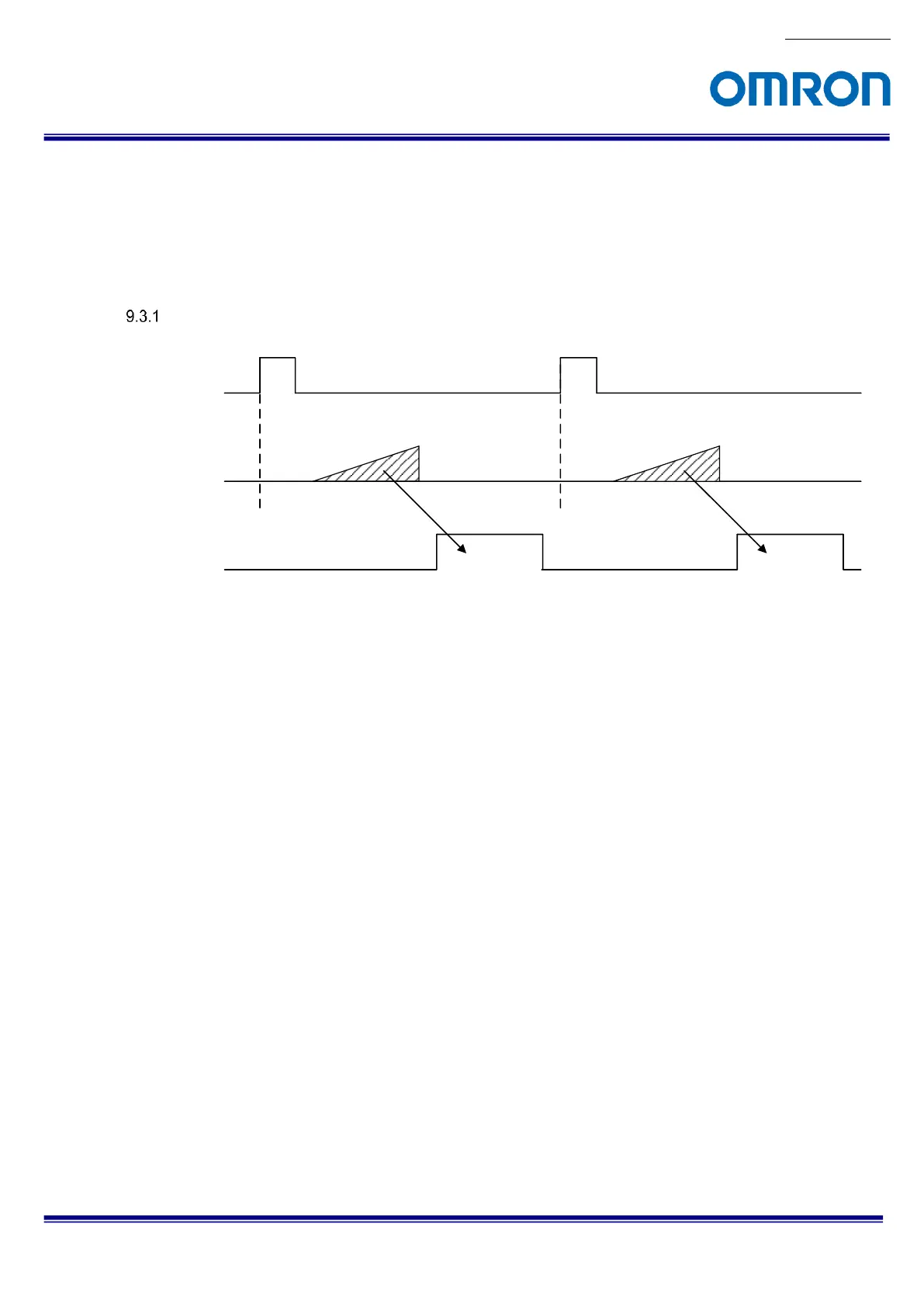

Timing
Expose
Image out
Trigger signal
(Positive polarity)
Note: The exposure time is “Exposure Time” on GenICam setting.
