Appendix BSpecifications
104
are not isolated from each other. If a dielectric strength test is conducted at 50 VDC or higher, internal
components such as capacitors will be damaged. If a short-circuit test must be conducted, use a device
such as a tester.
3.
Acceleration (G)
Amplitude
0.075 mm
Frequency (Hz)
1
10 57 150

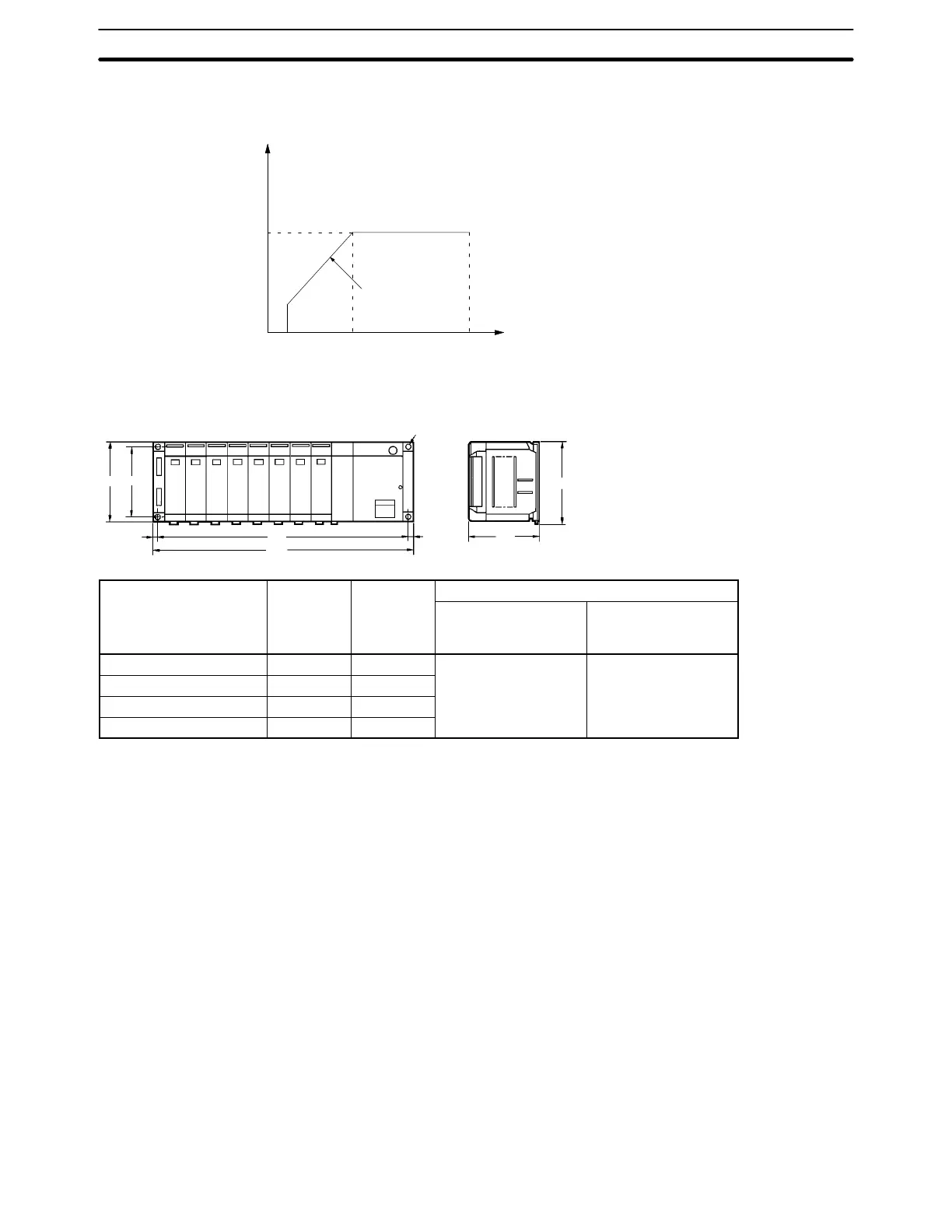

C200HS Dimensions
130 118
6.5 A
W
7.5
(135)
D
M 4
Backplane A W D
CPU01-E/CPU01-EC/
CPU03-E
CPU21-E/CPU21-EC/
CPU23-E/CPU31-E/
CPU33-E
C200H-BC031-V2 246 260 118 143
C200H-BC051-V2 316 330
C200H-BC081-V2 421 435
C200H-BC101-V2 491 505
Note 1. All units are in millimeters.
2. For dimensions of individual units and Backplane, refer to page 193 onward.
