2-2-3 Power Supply

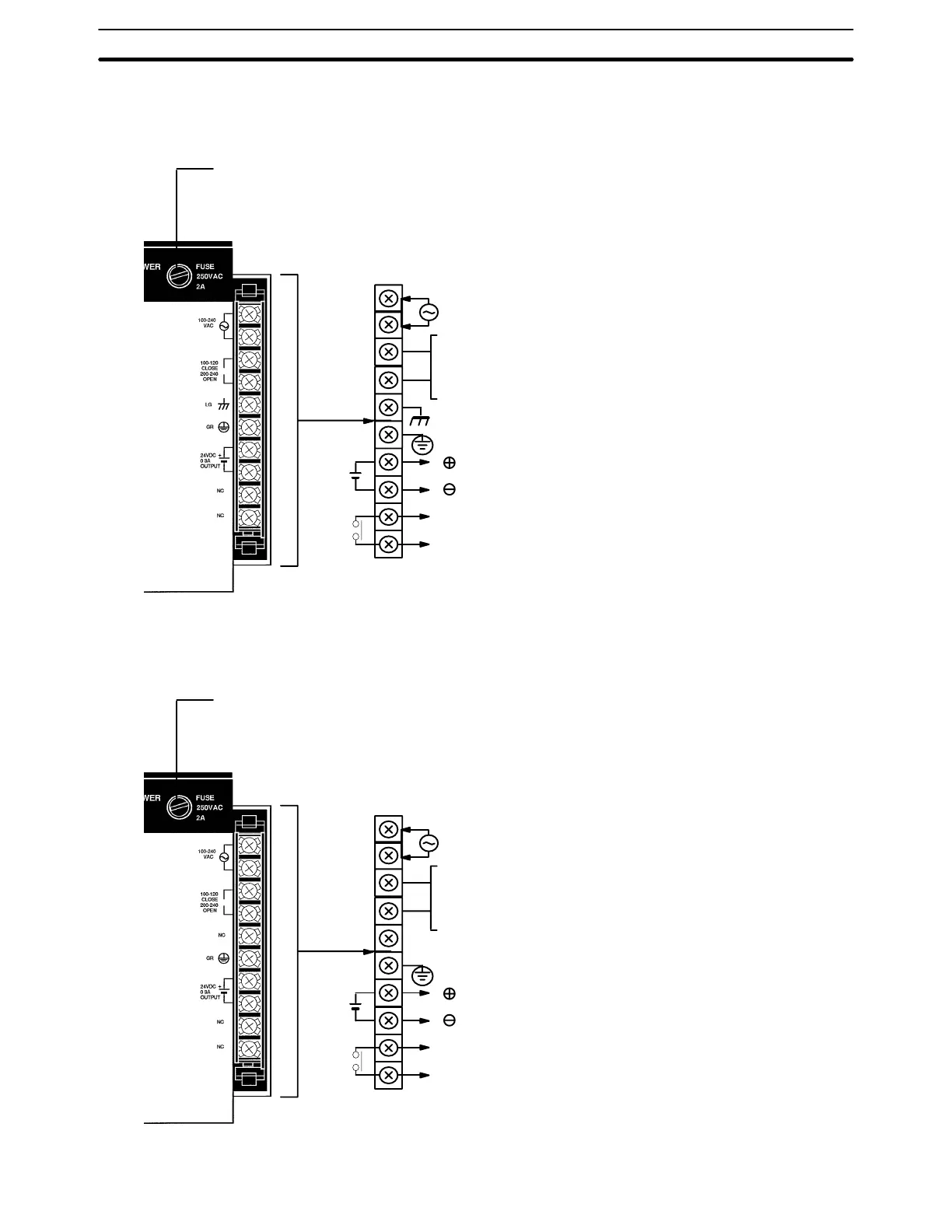

AC Power Supplies: C200HS-CPU01-E/CPU21-E/CPU31-E
Power fuse:
2 A, 250 V
(5.2-dia. x 20) MF51NR
Voltage selector terminals
Short: 100 to 120 VAC
Open: 200 to 240 VAC
Terminals
for exter-
nal con-
nections
GR: Ground to 100 Ω or less to protect against shock.
LG: Ground to 100 Ω or less to increase noise resistance
and protect against shock.
AC Input: Connect to 100 to 120 VAC or 200 to 240 VAC.
+
24 VDC, 0.3 A output: Use to supply power to DC
Input Units
RUN output: ON when PC is operating.
C200HS-CPU01-EC/CPU21-EC
Conforms to EC directives.
Power fuse:
2 A, 250 V
(5.2-dia. x 20) MF51NR
Voltage selector terminals
Short: 100 to 120 VAC
Open: 200 to 240 VAC
Terminals
for exter-
nal con-
nections
GR: Ground to 100 Ω or less to protect against shock.
AC Input: Connect to 100 to 120 VAC or 200 to 240 VAC.
+
24 VDC, 0.3 A output: Use to supply power to DC
Input Units
RUN output: ON when PC is operating.
