5-1-1 Nomenclature
The front panel of the Programming Console is shown below, taking the
C200H-PRO27-E as an example.

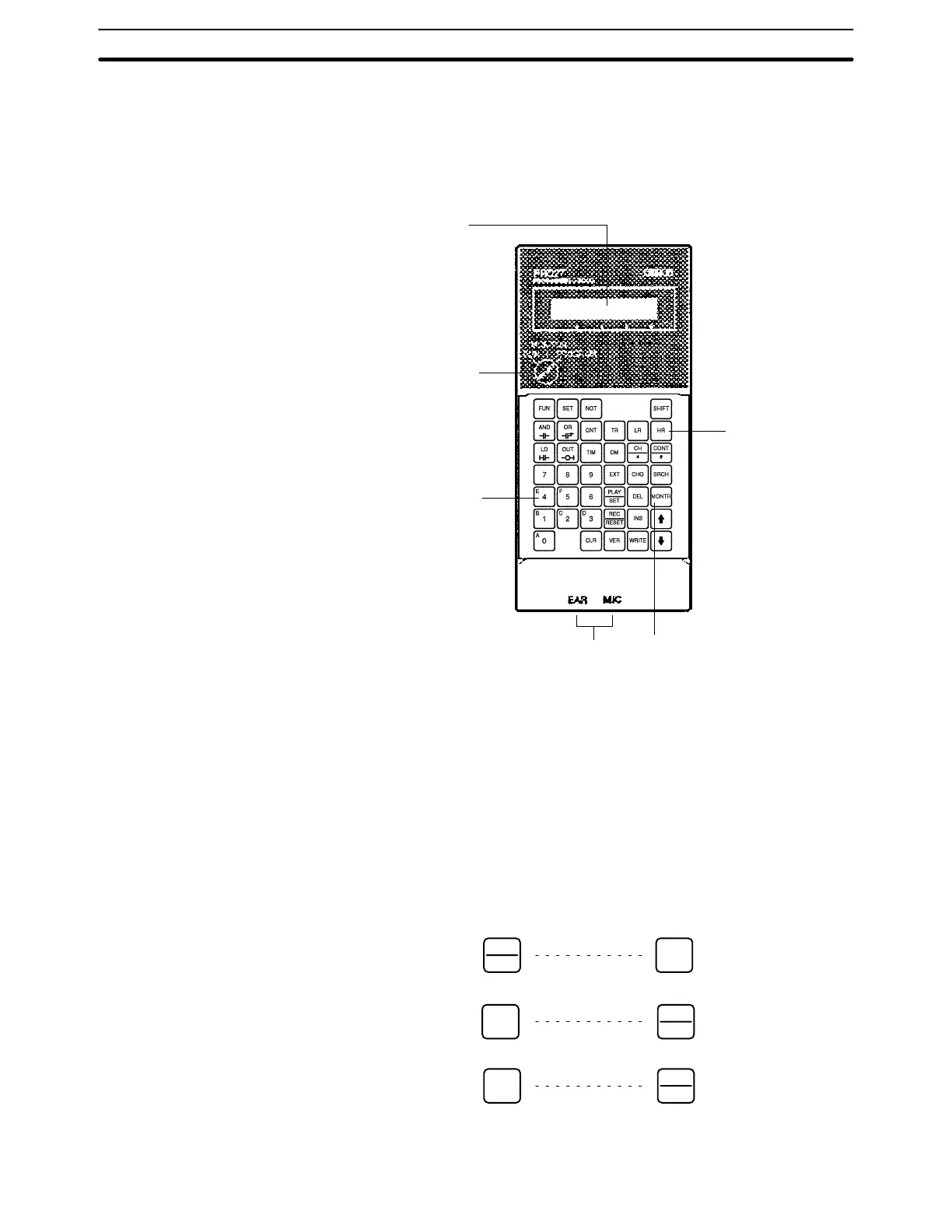

C200H-PRO27-E Programming Console
LCD area
Mode selector switch
Numeric keys
Instruction keys
Operation keys
Cassette jacks
LCD Area This window displays the program contents and monitor status.
Mode Selector Switch PROGRAM MODE: Used for creating programs.
RUN MODE: Used for executing the programs.
MONITOR MODE: Used for monitoring C200HS status.
Keys Instruction, numeric, and operation keys are used for inputting the program and
data.
Note 1. The operations of C200H-PRO27-E and CQM1-PRO01-E Programming
Consoles are the same.
2. The following keys look different but have the same functions.
AR
HR
HR
SET
RESET
PLAY
SET
REC
RESET
3. The cassette jacks are not used by the C200HS.
