73

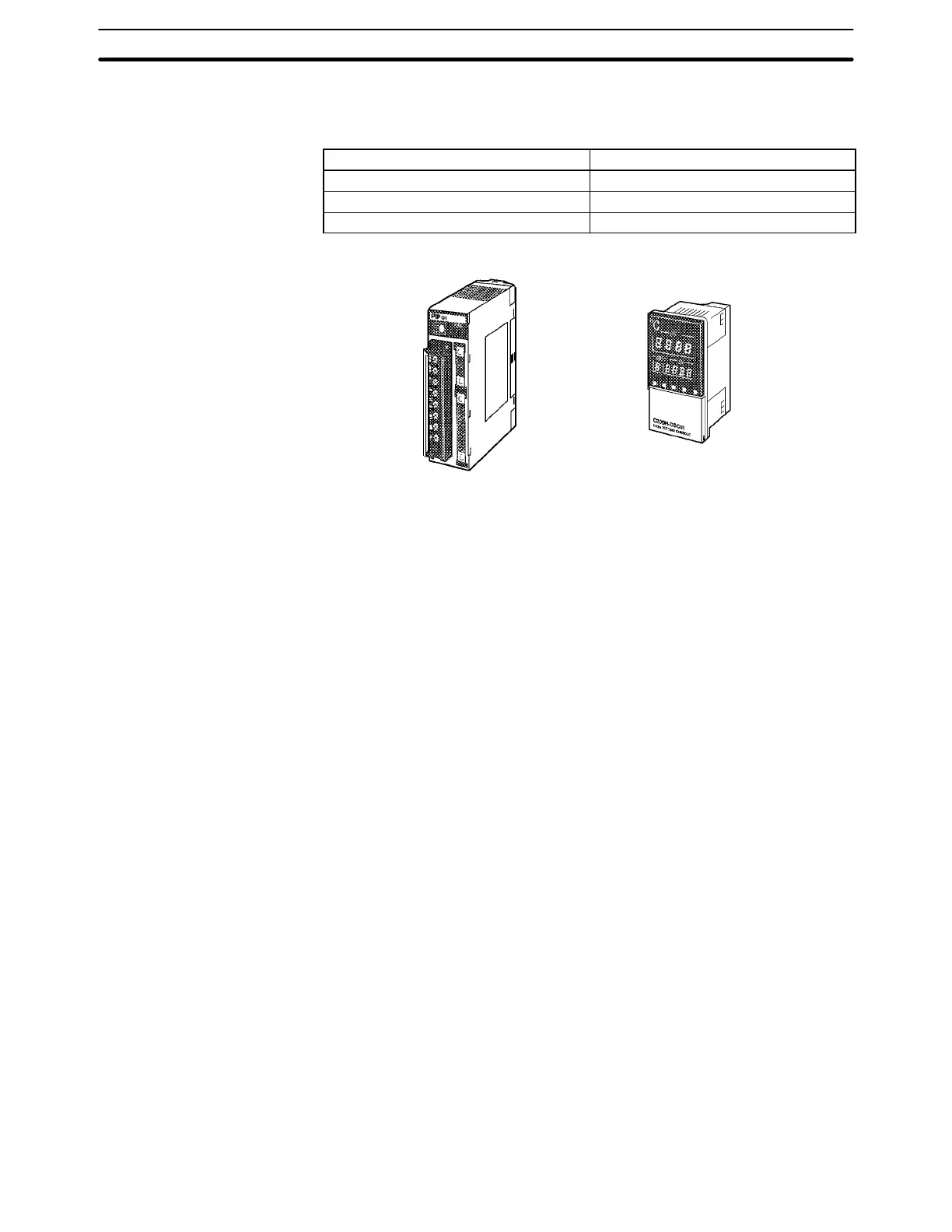

PID Control Unit The PID Control Unit scales inputs from connected sensors and then carries out
PID control according to preset control mode.
Select the control output of the PID Control Unit from the following.
Model Control output
C200H-PID01 Transistor output
C200H-PID02 Voltage output
C200H-PID03 Current output
PID Control Unit Data Setting Console
5-5 Ladder Support Software (LSS)
The LSS is a powerful support software package for the OMRON C-series Pro-
grammable Controllers (PCs). The LSS runs on an IBM PC/AT or compatible
personal computer, and can be use to program, monitor and control PCs. While
some PCs require a SYSMAC NET Link Unit, Host Link Unit, or Peripheral Inter-
face Unit to connect the computer running LSS, the C200HS can be connected
directly to the LSS via it’s peripheral or RS-232C port.
The LSS provides displays of various useful lists when the computer is operated
offline and can be used to monitor operating conditions of the PC, and to read
and write PC data. PC programs can be developed in a mnemonic or ladder dia-
gram form.
When working in ladder diagram form, not only the program is displayed but also
other information such as I/O, block, and instruction comments can be input and
displayed. Moreover, the LSS allows more than one PC to be connected to and
monitored using a single computer. The monitoring speed can be accelerated if
the optional S3200-NSB11-E SYSMAC NET NSB is used.
For details concerning LSS, refer to the Ladder Support Software Operation
Manual (W237).
5-6 SYSMAC Support Software (SSS)
The SSS is an advanced software application that runs on IBM PC/AT or compa-
tibles and is used to program, monitor, and otherwise control OMRON SYSMAC
C-series PCs and SYSMAC CVM1 PCs. The C200HS can be connected directly
to a computer running the SSS in exactly the same way as for the LSS.
The SSS can be used with any of the CVM1 PCs and with all of the many C-se-
ries PCs. The SSS automatically switches programming styles and other opera-
tions between the various PCs when a PC model is set in the SSS’s System Set-
up.
All programs written on the Ladder Support Software or on the CV Support Soft-
ware can be read and used by the SSS. Programs created for the C2000H or
C200HS families of PCs can be converted for use with CVM1 PCs so that exist-
ing programs can be used with the newer PCs.
SYSMAC Support Software (SSS) Section 5-6
