Omron SYSMAC C200HS Installation Guide

26

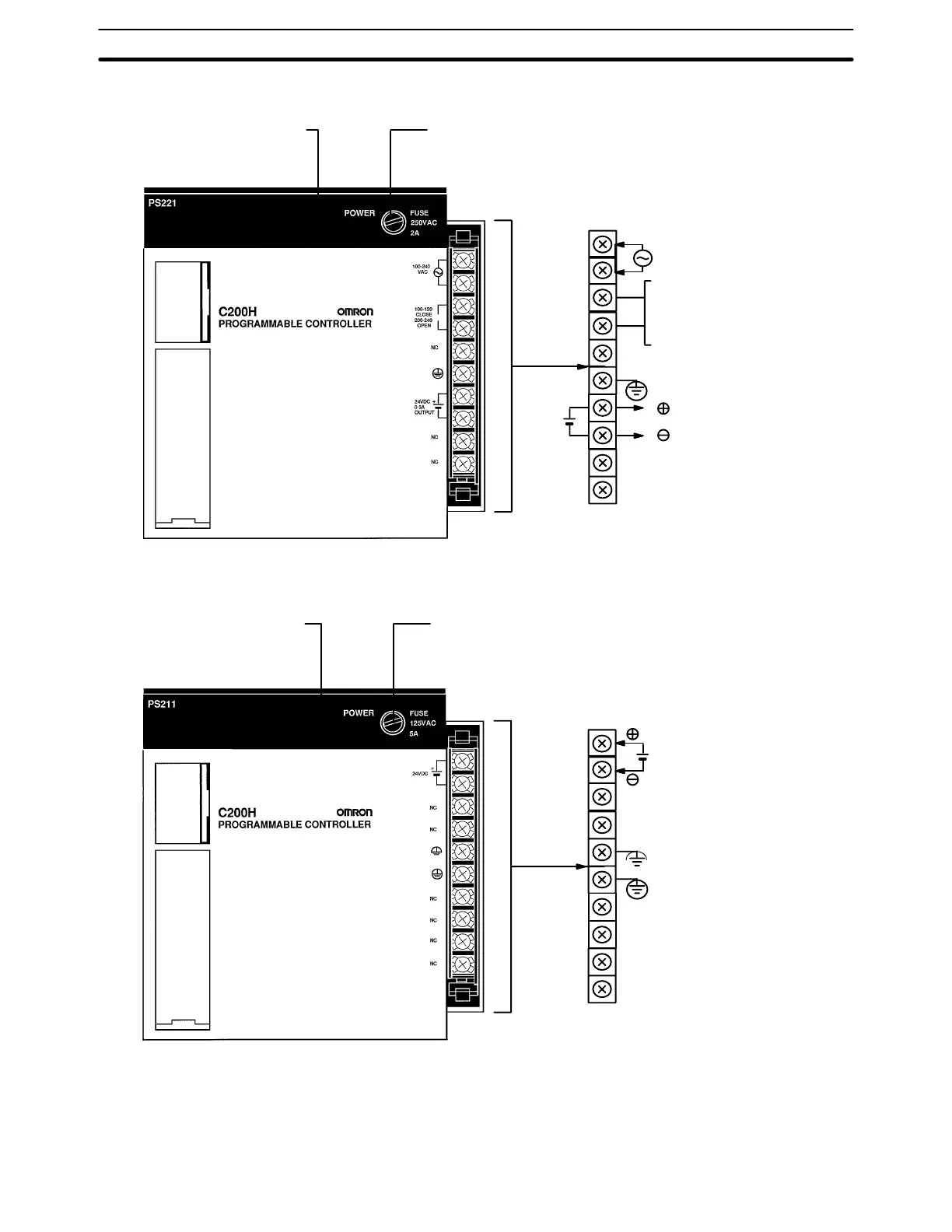

C200H-PS221-C
Conforms to EC directives.
POWER indicator (green):
Lights when power is
supplied to Power Supply
Power fuse:
2 A, 250 V
(5.2-dia. x 20) MF51NR
Voltage selector terminals
Short: 100 to 120 VAC
Open: 200 to 240 VAC
Terminals
for exter-
nal con-
nections
NC
NC
AC Input
+
24 VDC, 0.3
A output
NC
DC Power Supply Unit C200H-PS211
Units with lot numbers jjZ5 (Dec. 1995) or later conform to EC directives.
Terminals
for exter-
nal con-
nections
POWER indicator (green):
Lights when power is
supplied to Power Supply
Power fuse:
5 A, 125 V
(5.2-dia. x 20) MF51NR
NC
NC
24 VDC
NC
NC
NC
NC
+
2-5 I/O Units
I/O Units are divided into three groups based on the way that I/O words they use
are allocated. Standard I/O Units are allocated I/O words according to the Unit’s
I/O Units Section 2-5
