5-1 Programming Console
There are two Programming Console models that can be used with the C200HS:
the C200H-PRO27-E and the CQM1-PRO01-E. The following illustration shows

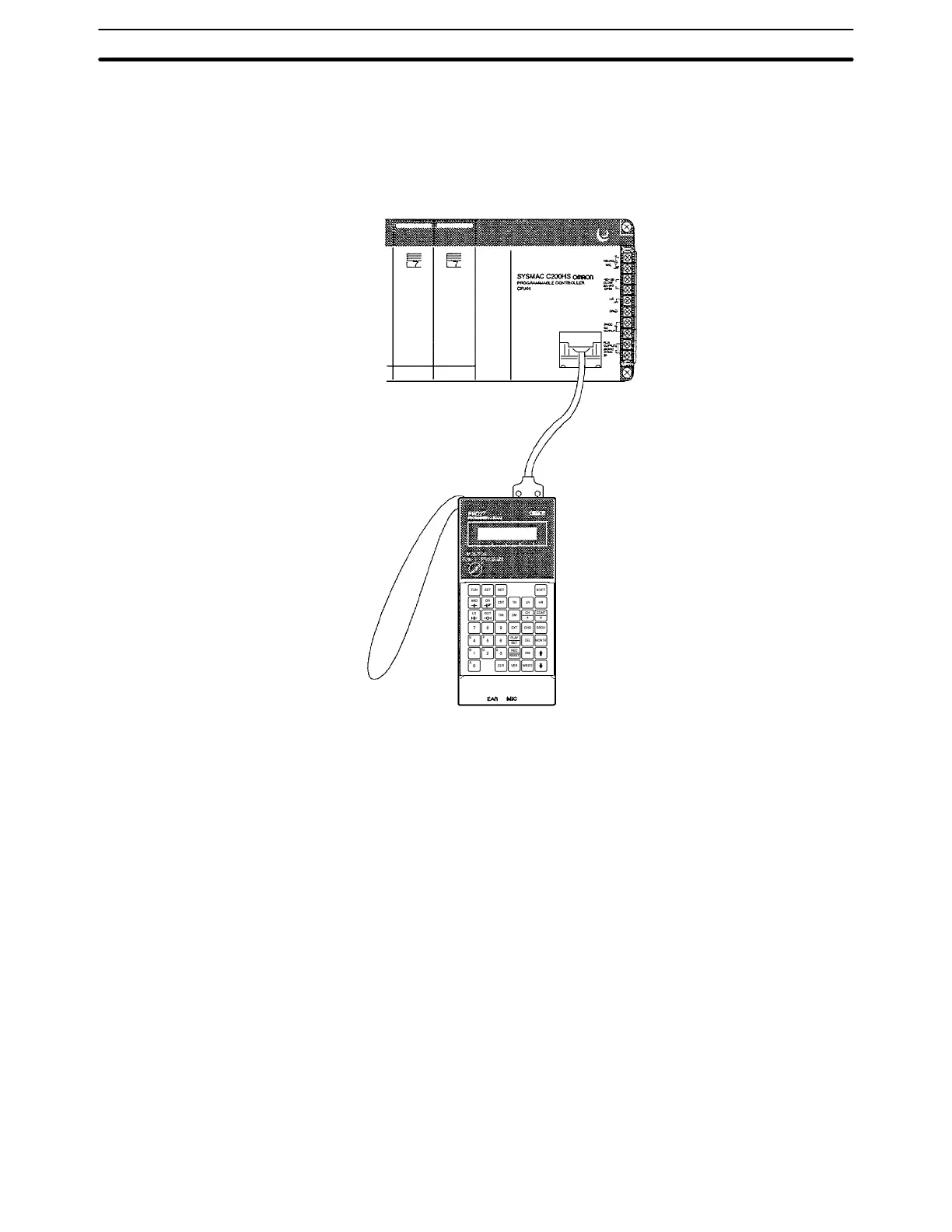

how a Programming Console (a C200H-PRO27-E in this case) connects to the
C200HS CPU.
C200H-CN222, C200H-CN422,
C200HS-CN222, or C200HS-CN422
Connecting Cable
C200H-PRO27-E Programming Console
As indicated in the illustration, the C200H-PRO27-E Programming Console
connects to the C200HS CPU with C200H-CN222, C200H-CN422,
C200HS-CN222, or C200HS-CN422 Connecting Cable which must be pur-
chased separately. The C200HS-CN222 and C200HS-CN422 Connecting
Cables conform to EC directives.
An anti-static cover is provided for the C200HS-CN222/CN422 over the connec-
tor on the CPU side.
The CQM1-PRO01-E Programming Console comes with 2 m of Connecting
Cable.
Programming Console Section 5-1
To Next Page
