Omron SYSMAC C200HS Installation Guide

21

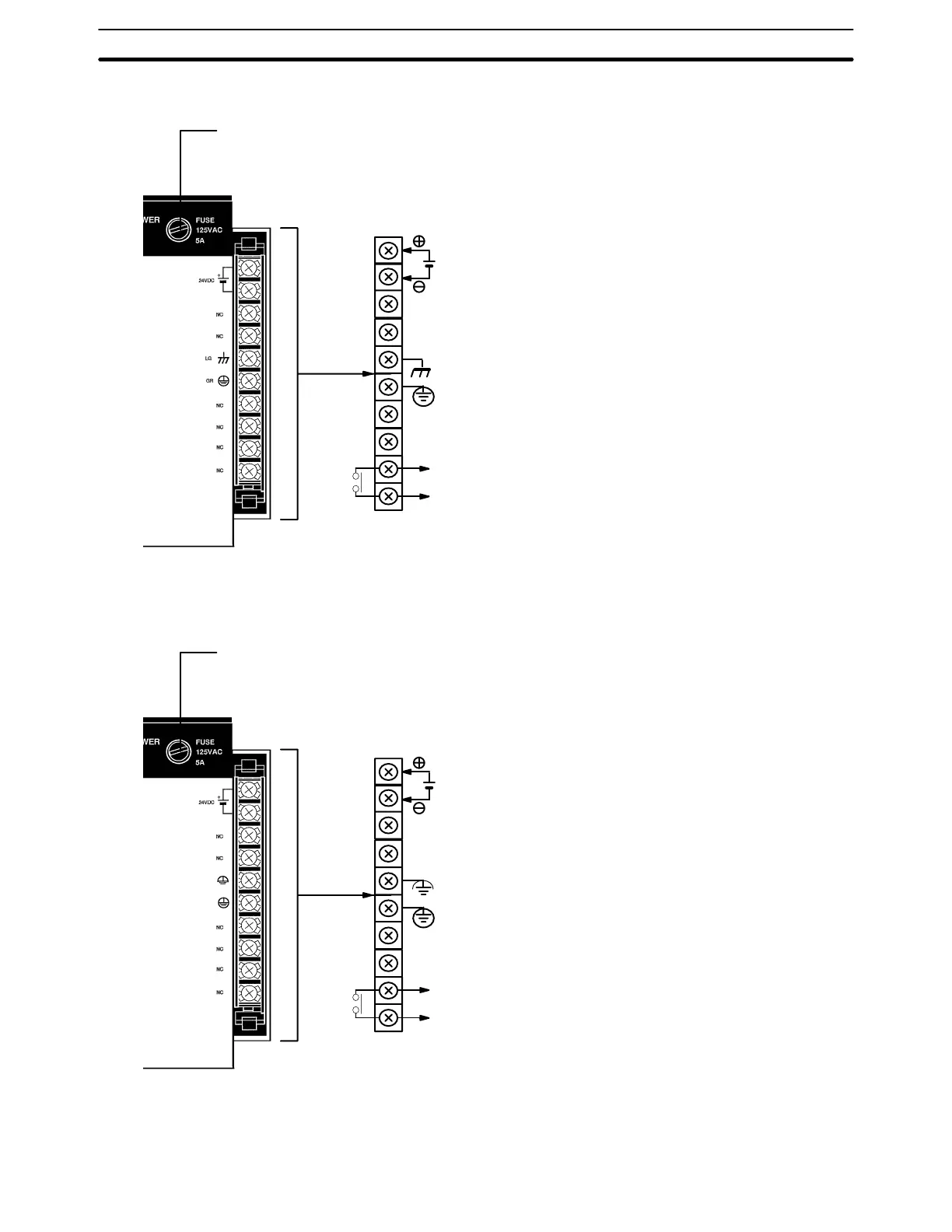

DC Power Supplies: C200HS-CPU23-E/CPU33-E
Terminals
for exter-
nal con-
nections
Power fuse:
5 A, 125 V
(5.2-dia. x 20) MF51NR
NC
NC
24 VDC input: Connect to 24 VDC.
NC
NC
+
GR: Ground to 100 Ω or less to protect against shock.
LG: Ground to 100 Ω or less to increase noise resistance
and protect against shock.
RUN output: ON when PC is operating.
C200HS-CPU03-E
CPUs with lot numbers jjZ5 (Dec. 1995) or later conform to EC directives.
Terminals
for exter-
nal con-
nections
Power fuse:
5 A, 125 V
(5.2-dia. x 20) MF51NR
NC
NC
24 VDC input: Connect to 24 VDC. (See note below)
NC
NC
+
Ground to 100 Ω or less to protect against shock.
Ground to 100 Ω or less to increase noise resistance and
protect against shock.
RUN output: ON when PC is operating. (See note below)
Note Use a 24-VDC power supply with reinforced insulation or double insulation if the
EC directives (low-voltage directives) must be satisfied.
CPUs Section 2-2
