Omron SYSMAC C200HS Installation Guide

Appendix BSpecifications
110

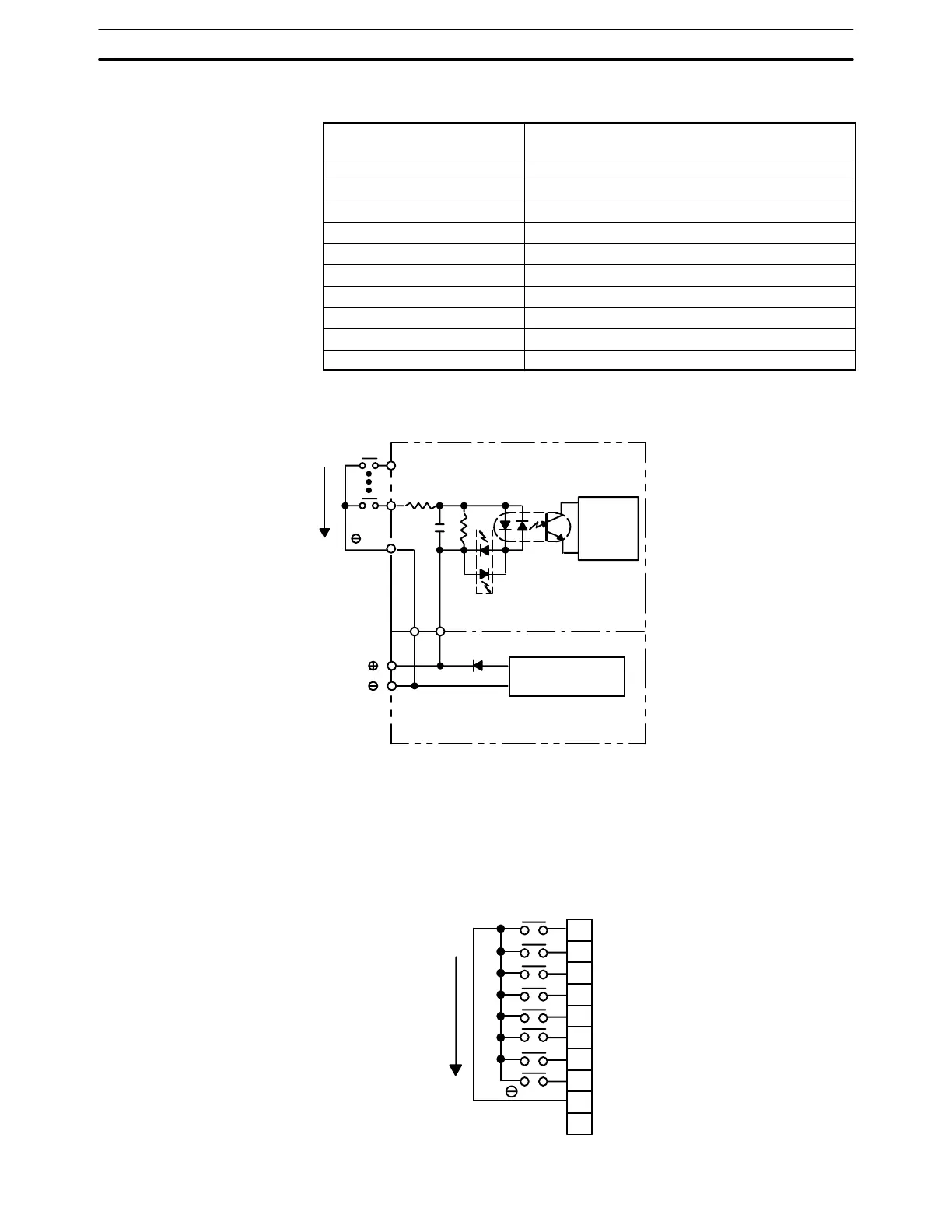

No-Voltage Contact Input Unit C200H-ID001
Input Voltage No-voltage contact/NPN output type (negative
common)
Input Impedance
3 kW
Input Current 7 mA typical
ON Voltage (14.4 VDC min.)
OFF Voltage (5.0 VDC max.)
ON Response Time 1.5 ms max. (no-voltage contact, at 25°C)
OFF Response Time 1.5 ms max. (no-voltage contact, at 25°C)
No. of Circuits 1 (8 points/common)
Internal Current Consumption 10 mA 5 VDC max.
Weight 200 g max.
Dimensions A-shape
Circuit Configuration
Internal 24-VDC
power supply
+
–
IN
IN
COM
Internal
Circuit
3 kW
0.01
mF
Input indicator
1.8
k
W
0.3 A
24 VDC
Power
supply
CPU, Expansion I/O Power Supply,
Remote I/O Slave Unit
Current
Note The power is supplied to the Input Units from the 24 VDC output of the Power Supply of the CPU, Expansion
I/O Unit, or Remote I/O Unit. Never connect 24 VDC output terminals to the input terminals or COM termi-
nals.
Terminal Connections
COM
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
NC
Current
(NPN output)
