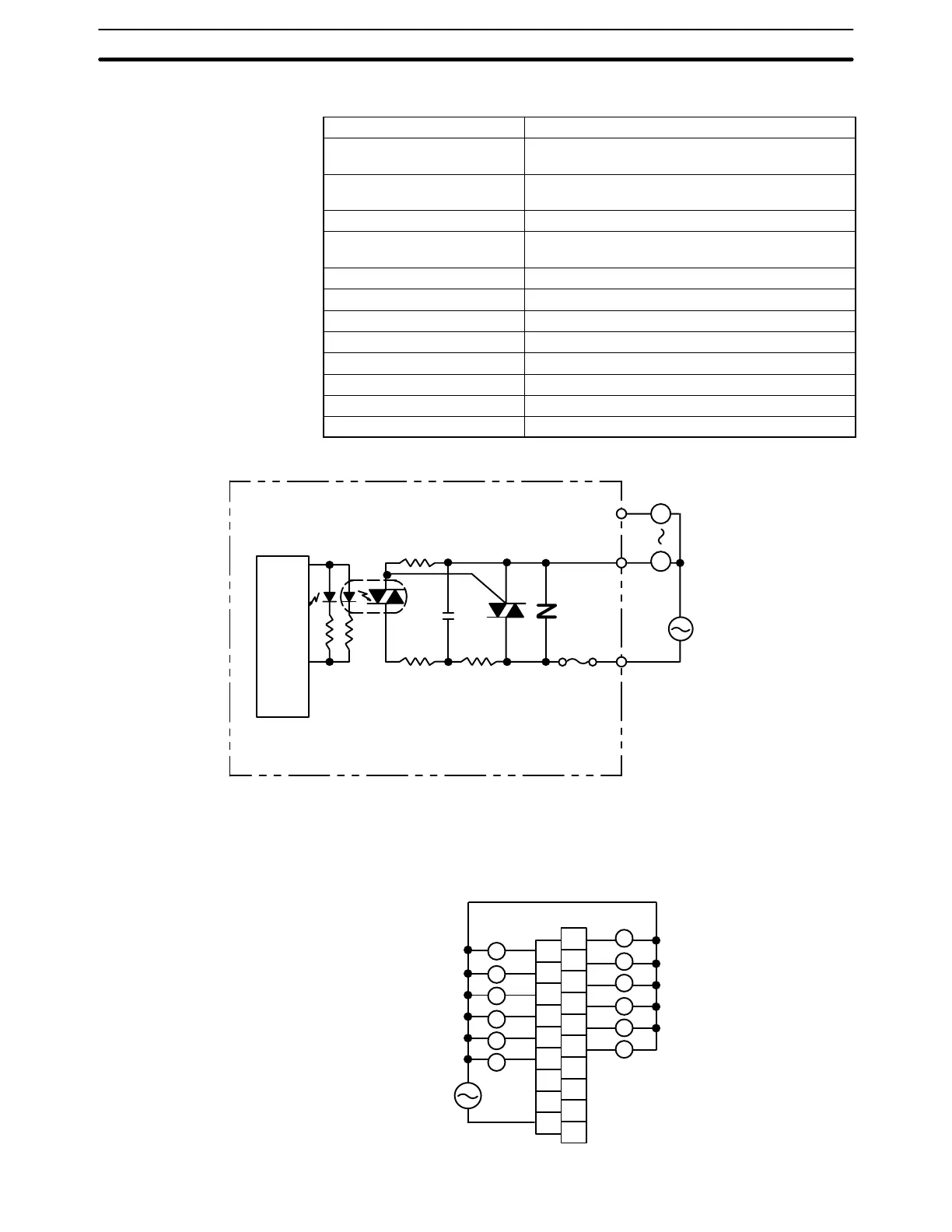

Appendix BSpecifications
120
Triac Output Unit C200H-OA224
Max. Switching Capacity 0.5 A 250 VAC, 50/60 Hz (2 A/Unit)
Max. Inrush current 10 A (pulse width: 100ms)
20 A (pulse width: 10 ms)
Min. Switching Capacity 100 mA 10 VAC/50 mA 24 VAC/10 mA 100 VAC
min.
Leakage Current 1.5 mA (120 VAC) max./3 mA (240 VAC) max.
Residual Voltage 1.5 VAC max. (50 to 500 mA)/5 VAC max. (10 to
50 mA)
ON Response Time 1 ms max.
OFF Response Time 1/2 of load frequency + 1 ms or less.
No. of Circuits 1 (12 points/common)
Internal Current Consumption 270 mA 5 VDC max.
Fuse Rating 3.15 A 250 V (5.2-dia.x20)
Power for External Supply N/A
Weight 300 g max.
Dimensions B-shape
Circuit Configuration
L
Internal
Circuit
OUT
COM
OUT
Output indicator
L
250 VAC max.
Fuse: 3.15 A 250 V (5.2-dia.x20) MT4 (SOC)
Fuse
Note 1. No blown fuse detector circuit is provided.
2. Check the fuse when there is no output.
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
1
3
5
7
9
11
NC
0
2
4
6
8
10
NC
NC
NC
NC
250 VAC max.
(0.5 A max., 2 A/Unit)
L
L
L
L
L
L
L
L
L
L
L
L
NC
