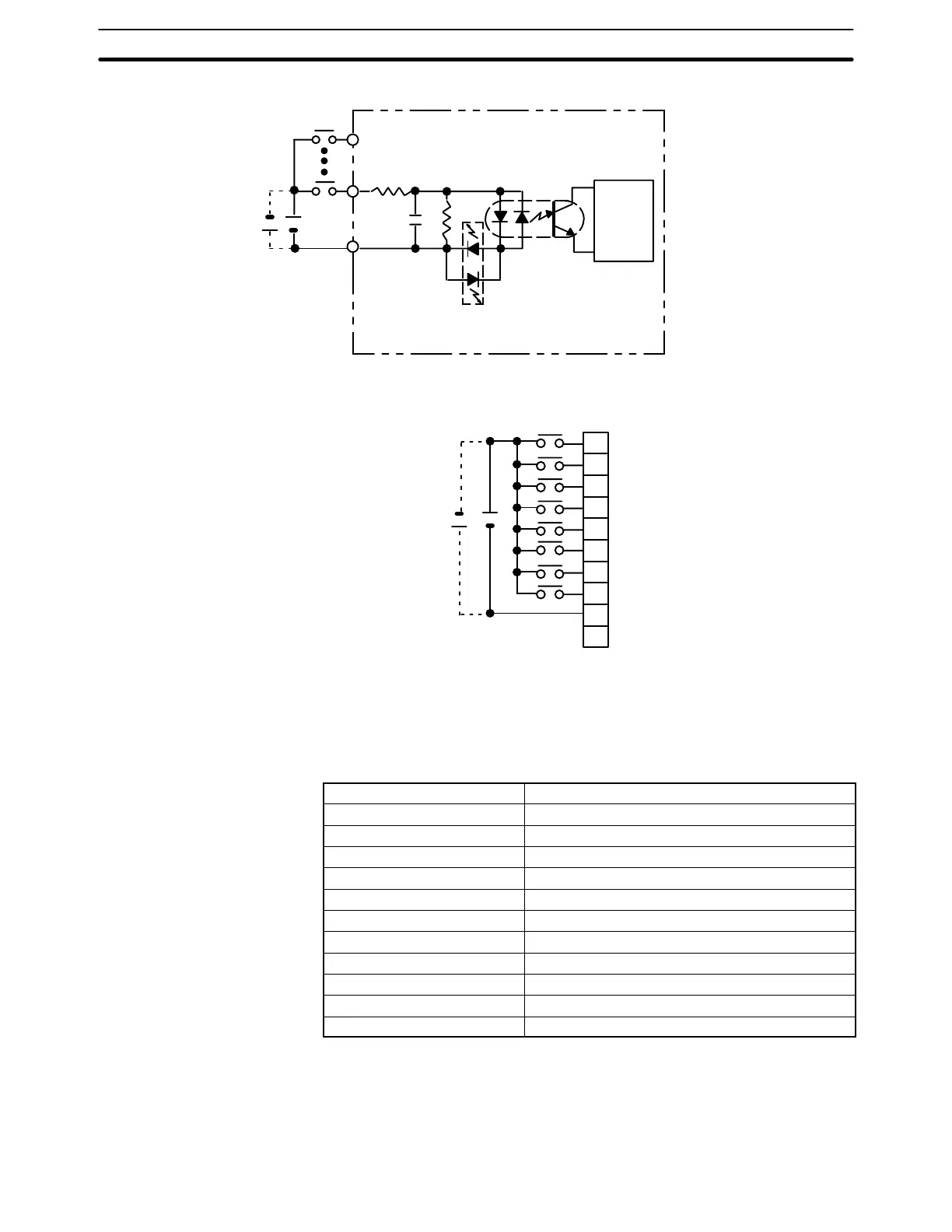

Circuit Configuration
IN
IN
COM
Internal
Circuit
12 to 24 VDC
2 kW
0.01
mF
Input indicator
1.8
k
W
Either plus or minus can be used for the input power supply.
Terminal Connections
COM
12 to 24 VDC
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
NC
Group-2 High-density I/O Units
In the following diagrams, “m” is the first word allocated to the Unit in PC memory.
DC Input Unit C200H-ID111 (64 Points)
Rated Input Voltage 12 VDC
+10%
/
–15%
Operating Input Voltage 10.2 to 13.2 VDC
Input Impedance
2.7 kW
Input Current 4.1 mA (at 12 VDC)
ON Voltage 8.0 VDC min.
OFF Voltage 3.0 VDC max.
ON Response Time 1.0 ms max.
OFF Response Time 1.0 ms max.
No. of Circuits 2 (32 points/common)
Internal Current Consumption 120 mA 5 VDC max.
Weight 250 g max.
Dimensions D-shape
