2. The power can be supplied in either polarity, but the same polarity must be used for all COM terminals in
each connector. Connect power supply wiring to every COM terminal, even though the COM terminals in
each connector are connected internally.
DC Input Unit C200H-ID216 (32 Points)
Rated Input Voltage 24 VDC
Operating Input Voltage 20.4 to 26.4 VDC
Input Impedance
5.6 kW
Input Current 4.1 mA (at 24 VDC)
ON Voltage 14.4 VDC min.
OFF Voltage 5.0 VDC max.
ON Response Time 1.0 ms max.
OFF Response Time 1.0 ms max.
No. of Circuits 1 (32 points/common)
All 32 points cannot be turned ON simultaneously
at high temperatures. Refer to the following graph.
Internal Current Consumption 100 mA 5 VDC max.
Weight 180 g max.
Dimensions C-shape

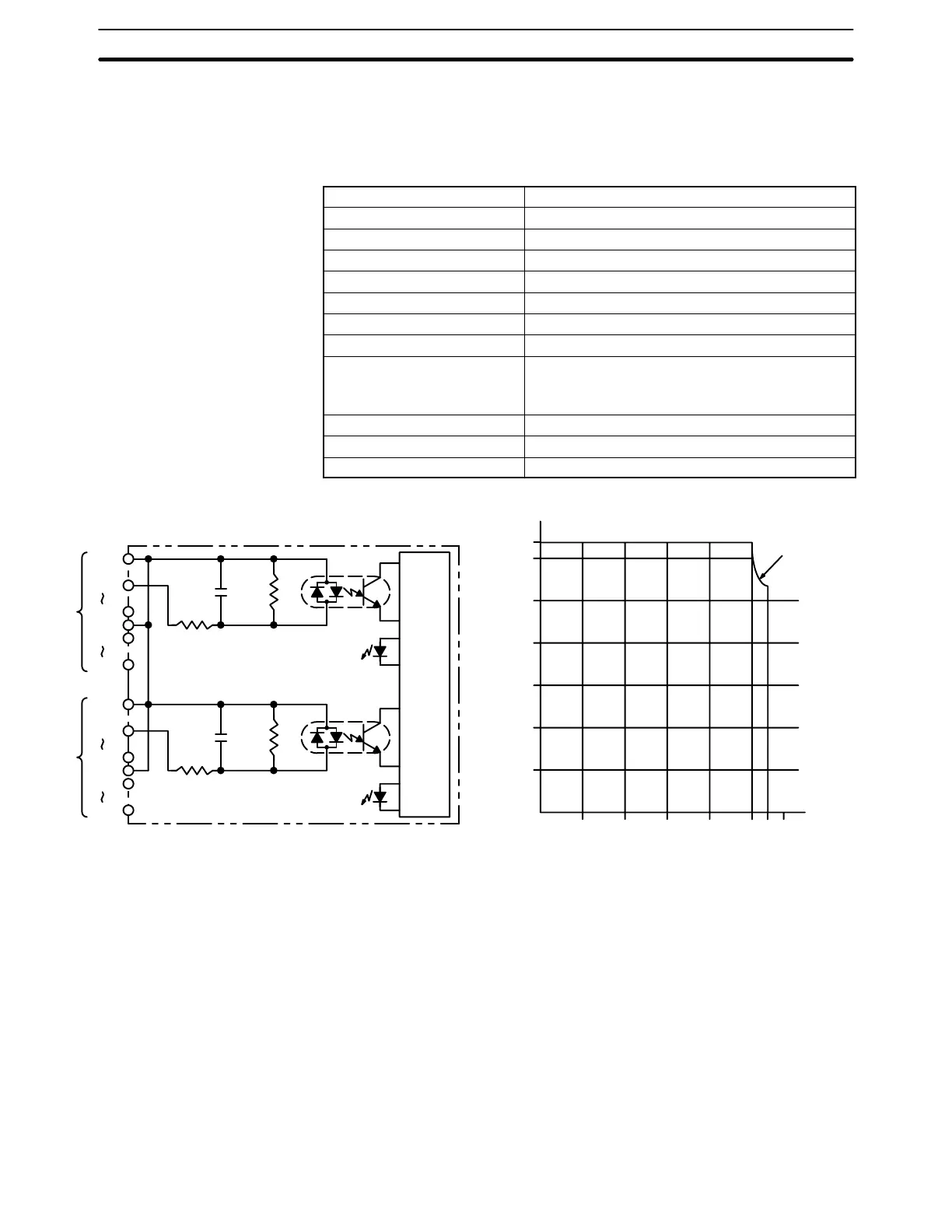

Circuit Configuration and Simultaneously Usable Points
Input indicator
Input indicator
Input Voltage: 26.4 VDC
Ambient Temperature (°C)
Simultaneously Usable Points
0 10203040505560
0
5
10
15
20
25
30
32
1000 pF
680 W
5.6 kW
COM
IN00
IN07
COM
IN08
IN15
A
Internal
Circuit
COM
IN00
IN07
COM
IN08
IN15
B
1000 pF
680 W
5.6 kW
