Appendix BSpecifications
169

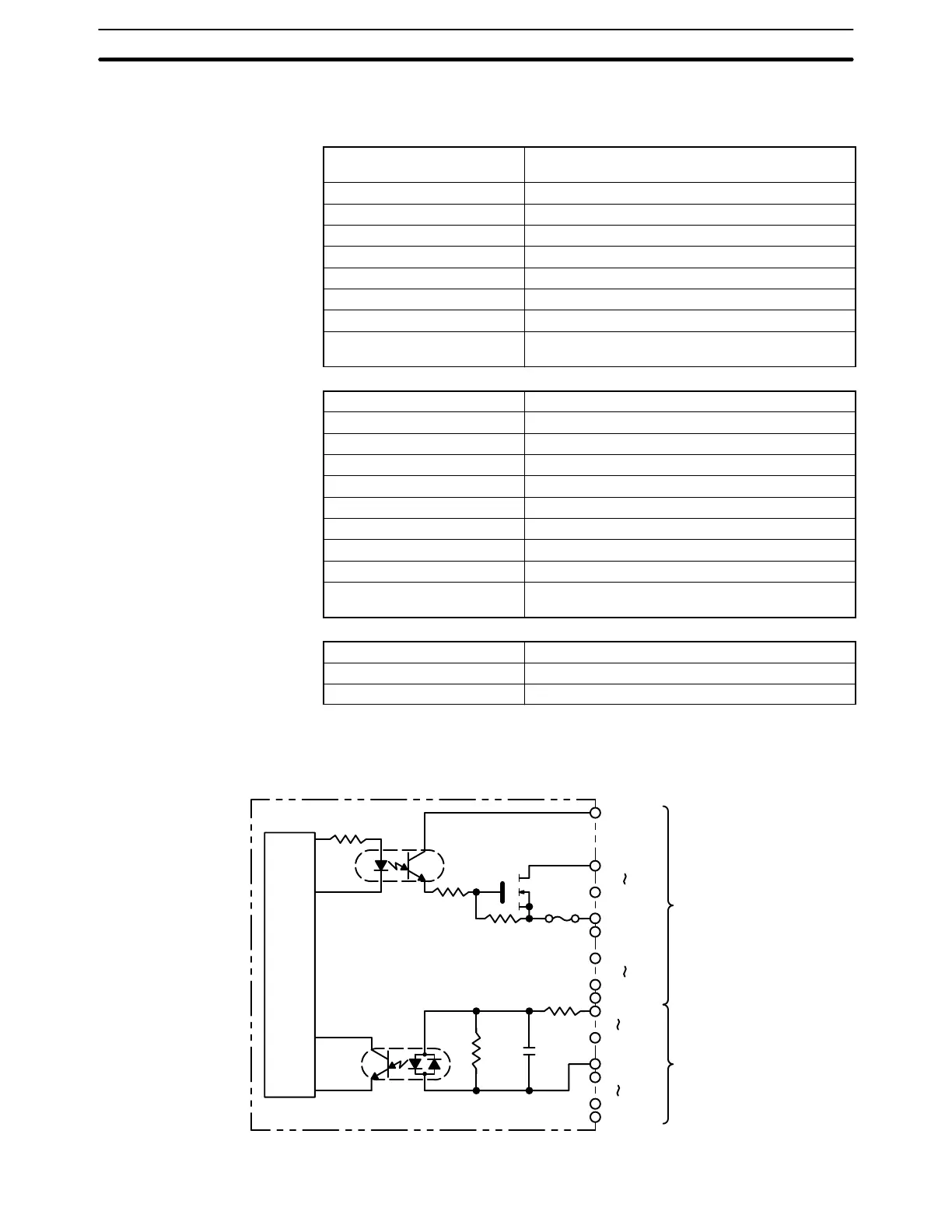

24 VDC Input/Transistor Output Unit C200H-MD215
(Used as I/O Unit with 16 Inputs and 16 Outputs)
Max. Switching Capacity 16 mA 4.5 VDC to 100 mA 26.4 VDC (see page
172), 800 mA/common, 1.6 A/Unit
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.7 V max.
ON Response Time 0.2 ms max.
OFF Response Time 0.6 ms max.
No. of Circuits 2 (8 points/common)
Fuses 2 (1 fuse/common; fuses are not user-replacable.)
Power for External Supply
45 mA 5 to 24 VDC10% min.
(2.8 mA × number of ON outputs)
Rated Input Voltage 24 VDC
Operating Input Voltage 20.4 to 26.4 VDC
Input Impedance
5.6 kW
Input Current 4.1 mA (at 24 VDC)
ON Voltage 14.4.0 VDC min.
OFF Voltage 5.0 VDC max.
ON Response Time 2.5 ms/15 ms max. (switchable)
OFF Response Time 2.5 ms/15 ms max. (switchable)
No. of Circuits 2 (8 points/common)
High-speed Inputs 8 points (connector 2 terminals 8 to 15, when set)
Pulse width: 1 ms/4 ms min. (switchable)
Internal Current Consumption 180 mA 5 VDC max.
Weight 300 g max.
Dimensions 130×34.5×100.5 (H×W×D, in millimeters)
Circuit Configuration
OUT00
OUT07
COM0
OUT08
OUT15
COM1
COM2
IN08
IN15
COM3
IN00
IN07
Internal
Circuit
Fuse
CN1
4.5 to
26.4 VDC
4.5 to
26.4 VDC
CN2
Output Specifications
(Connector 1)
Input Specifications
(Connector 2)
General Specifications
