Omron SYSMAC C200HS Installation Guide

Appendix BSpecifications
203

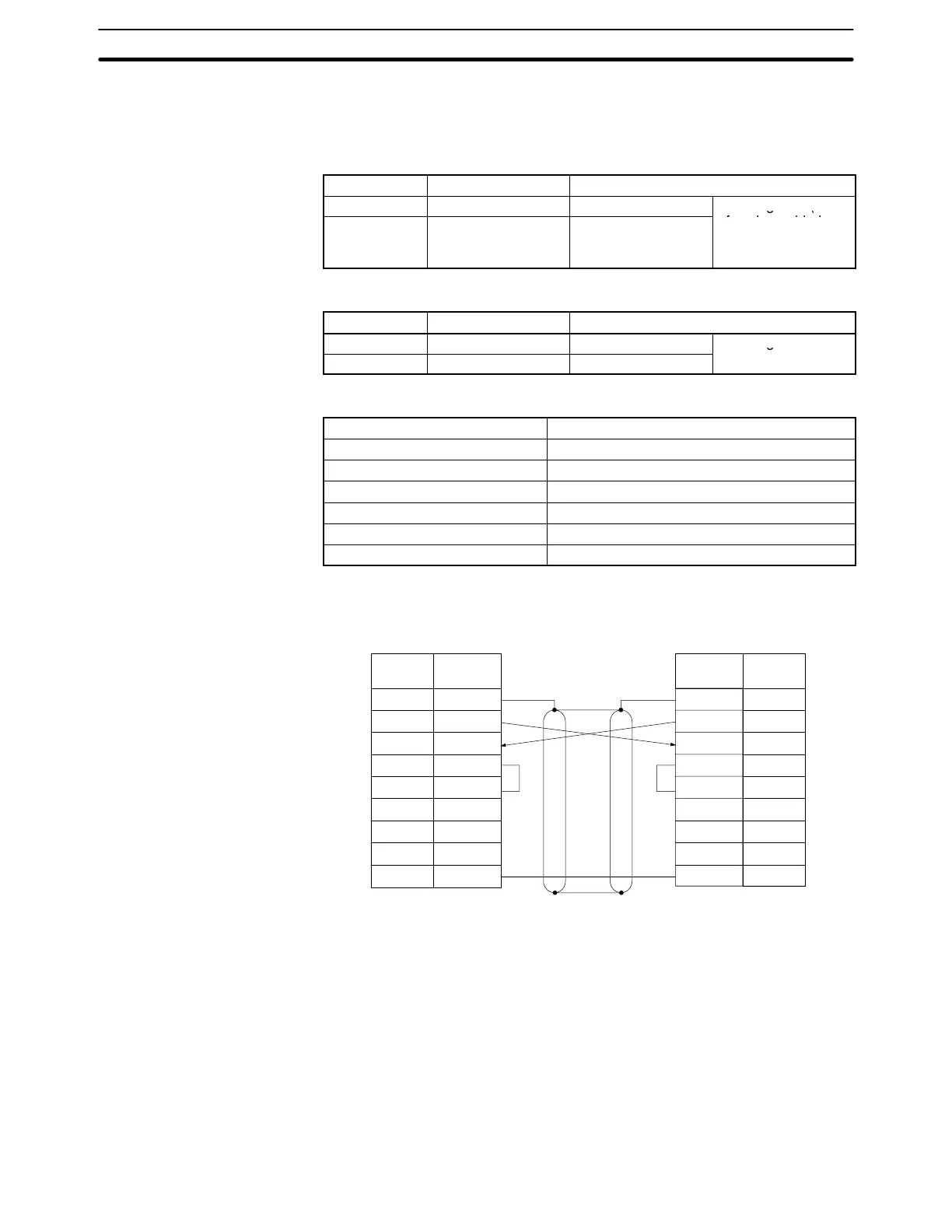

Applicable Connectors
The following connectors are applicable. One plug and one hood are included
with the CPU.
CPU Unit Connector
Item Model Specifications
Plug XM2A-0901 9-pin male
Used together (One
fh idd
Hood XM2S-0911-E 9-pin, millimeter
screws,
static-resistant
g(
of each provided
with CPU Unit.)
Personal Computer Connector
Item Model Specifications
Plug XM2D-0901 9-pin female
Used together
Hood XM2S-0913 9-pin, inch screws
g
Port Specifications
Item Specification
Communications method Half duplex
Sync Start-stop
Baud rate 1,200, 2,400, 4,800, 9,600, or 19,200 bps
Transmission method Point to point
Transmission distance 15 m max.
Interface EIA RS-232C
One-to-one Link Connections The RS-232C port on the C200HS can be connected to the same port on anoth-
er C200HS. Wire the cable as shown in the diagram below.
1
2
3
4
5
6
FG
SD
RD
RS
CS
–
–
–
SG
7
8
9
1
2
3
4
5
6
7
8
9
FG
SD
RD
RS
CS
–
–
SG
9
C200HS C200HS
Signal
Abb.
Pin
No.
Signal
Abb.
Pin
No.
–
XM2A–0901 XM2A–0901
Ground the FG terminals of C200HS Units at a resistance of less than 100 Ω.
