66
Note Refer to the SYSMAC NET Link System Manual (W178) for further information.

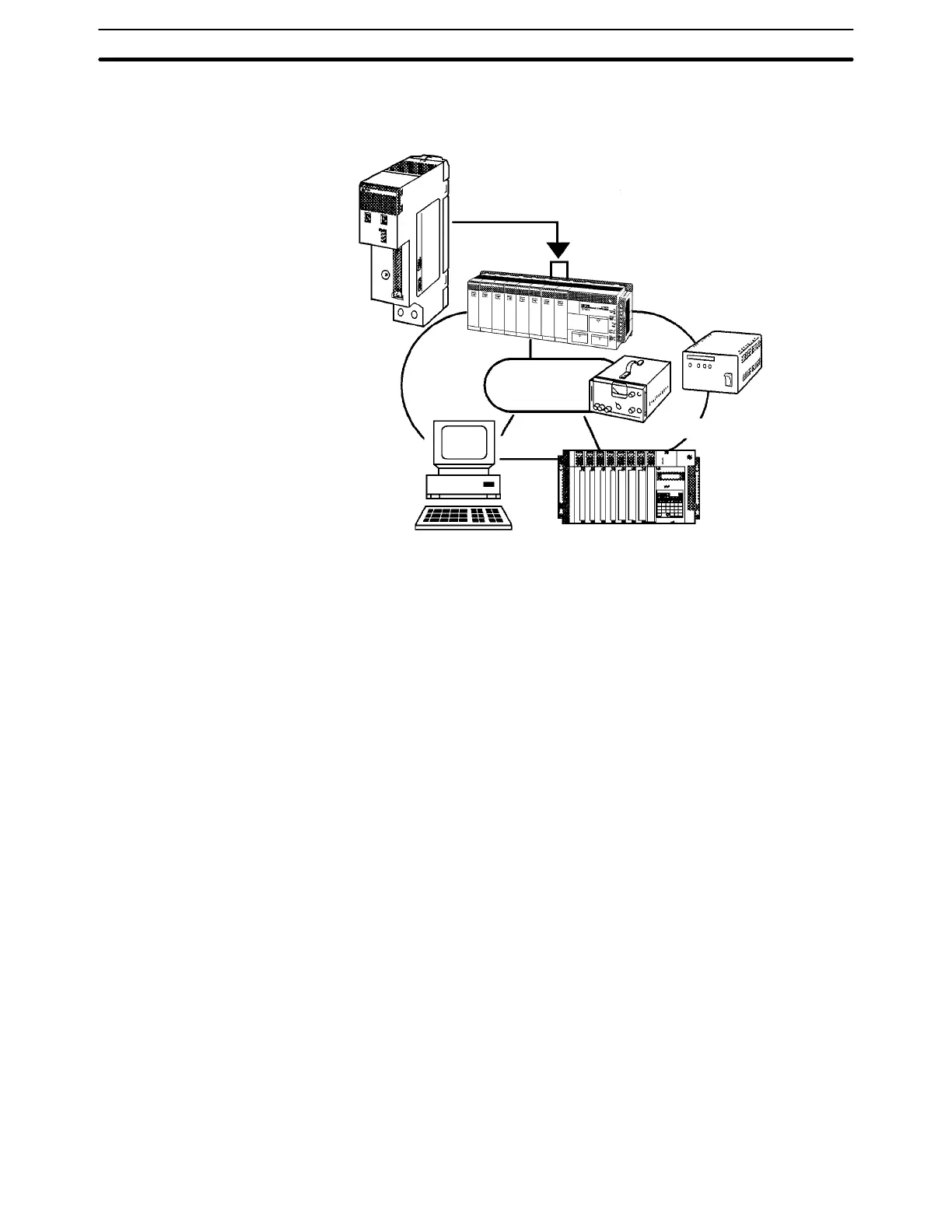

SYSMAC NET Link Unit
C200HS-SNT32
C200HS CPU
C200HS-CPU31-E or
C200HS-CPU33-E
SYSMAC-series PC
Line server
Central power supply
FA computer
PC Link System A PC Link System can be used to transfer data between PCs by means of LR
0000 through LR 6315. A maximum of two C200H-LK401 PC Link Units can be
mounted to slots in either the CPU Rack or an Expansion I/O Rack. For details,
refer to the PC Link System Manual (W135).
Remote I/O Systems A maximum of two Optical or Wired Remote I/O Master Units can be mounted to
slots in either the CPU Rack or an Expansion I/O Rack. A maximum total of five
Slave Racks, each with a single Slave Unit, can be connected. C500 Slave
Racks can be used, but each C500 Slave Rack must be counted as two Racks in
calculating the total. For details, refer to the SYSMAC C-series Rack PCs Wired
Remote I/O System Manual (W120) or SYSMAC C-series Optical Remote I/O
System Manual (W136).
Optical Systems
Optical and Wired Units cannot be mixed. A maximum total of 64 (32 words) Op-
tical I/O Units can be connected in an optical system.
Note 1. The number of Slave Racks is not related to the number of Master Units.
2. If the number of Optical I/O Units exceeds 32, a B500-RPT01(-P) Repeater
Unit is required.
Wired Systems
A maximum total of 32 I/O Interface Terminals and I/O Relay Terminals can be
connected in a wired system. The number is unrelated to the number of Master
Units mounted.
Special I/O Units All of the Special I/O Units usable with the C200H can be used in common with
the C200HS. A maximum of ten Special I/O Units (including PC Link Units) can
be mounted to slots in either the CPU Rack, Expansion I/O Racks, or Slave
Racks. For details, refer to the individual Special I/O Unit manuals and the fol-
lowing information.
Expanding the System Section 5-3
