112

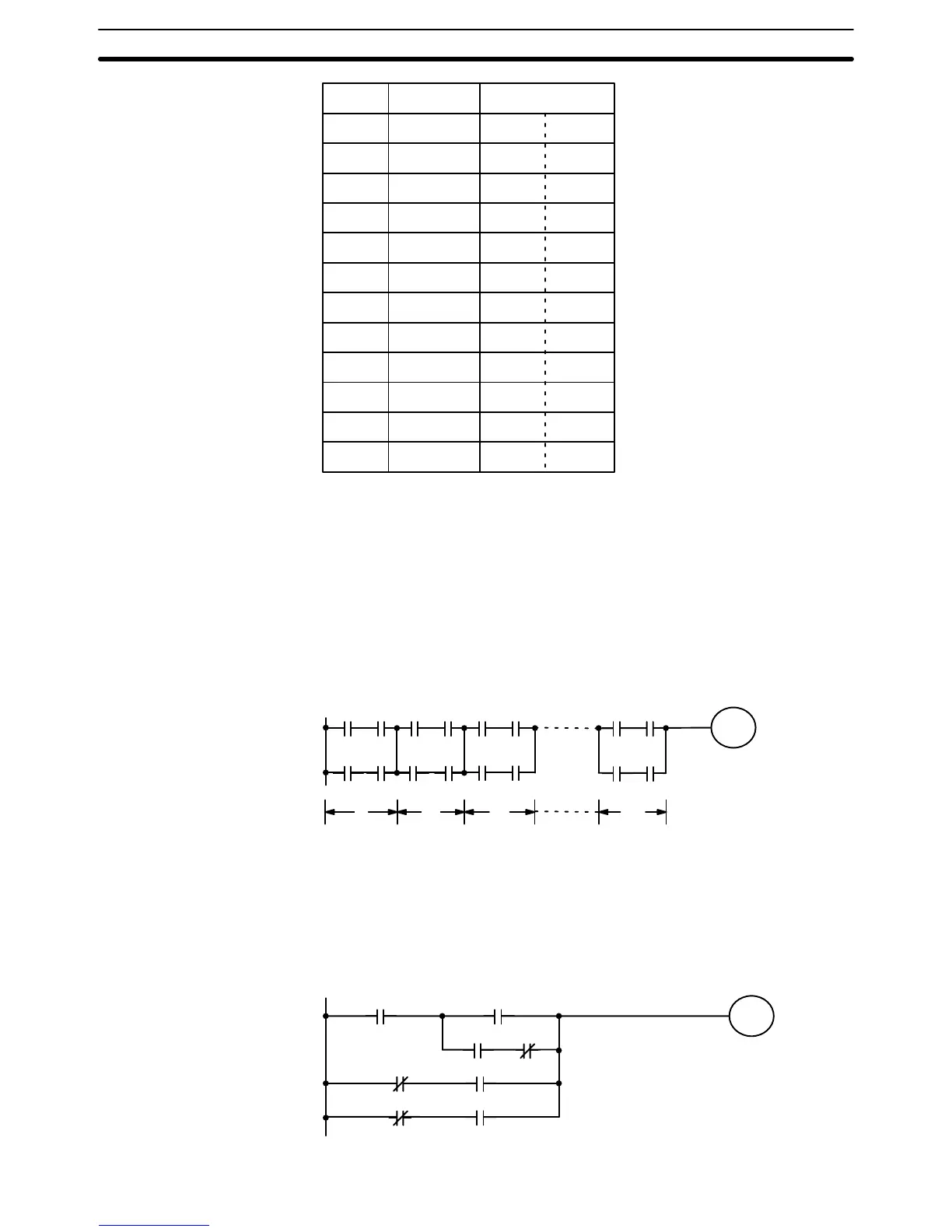

Address Instruction Data
0000 LD 0000
0001 AND NOT 0001
0002 LD NOT 0002
0003 AND 0003
0004 OR LD —
0005 LD 0004
0006 AND 0005
0007 LD 0006
0008 AND 0007
0009 OR LD —
0010 AND LD —
0011 OUT 0503
Blocks a1 and a2
Blocks b1 and b2
Blocks a and b
This type of diagram can be coded easily if each block is worked with in or-
der first top to bottom and then left to right. In the following diagram, blocks a
and b would be combined with AND LD as shown above, and then block c
would be coded and a second AND LD would be used to combine it with the
execution condition from the first AND LD, and so on through to block n.
Block
a
Block
b
00
Block
n
Block
c
The following diagram requires first an OR LD and an AND LD to code the
top of the three blocks, and then two more OR LDs to complete the mne-
monic code.
0002 0003
0505
0000
0001
0004 0005
0006 0007
Converting to Mnemonic Code Section 7–2
