Omron SYSMAC C20P

Programming Instructions Appendix B
166
Area IR SR HR TR TC DM #
Bits/Words 0000 to 1807 1808 to 1907 HR 000 to 915 TR 0 to 7 TC 00 to 47 DM 00 to DM 63 0000 to 9999
or 0000 to FFFF

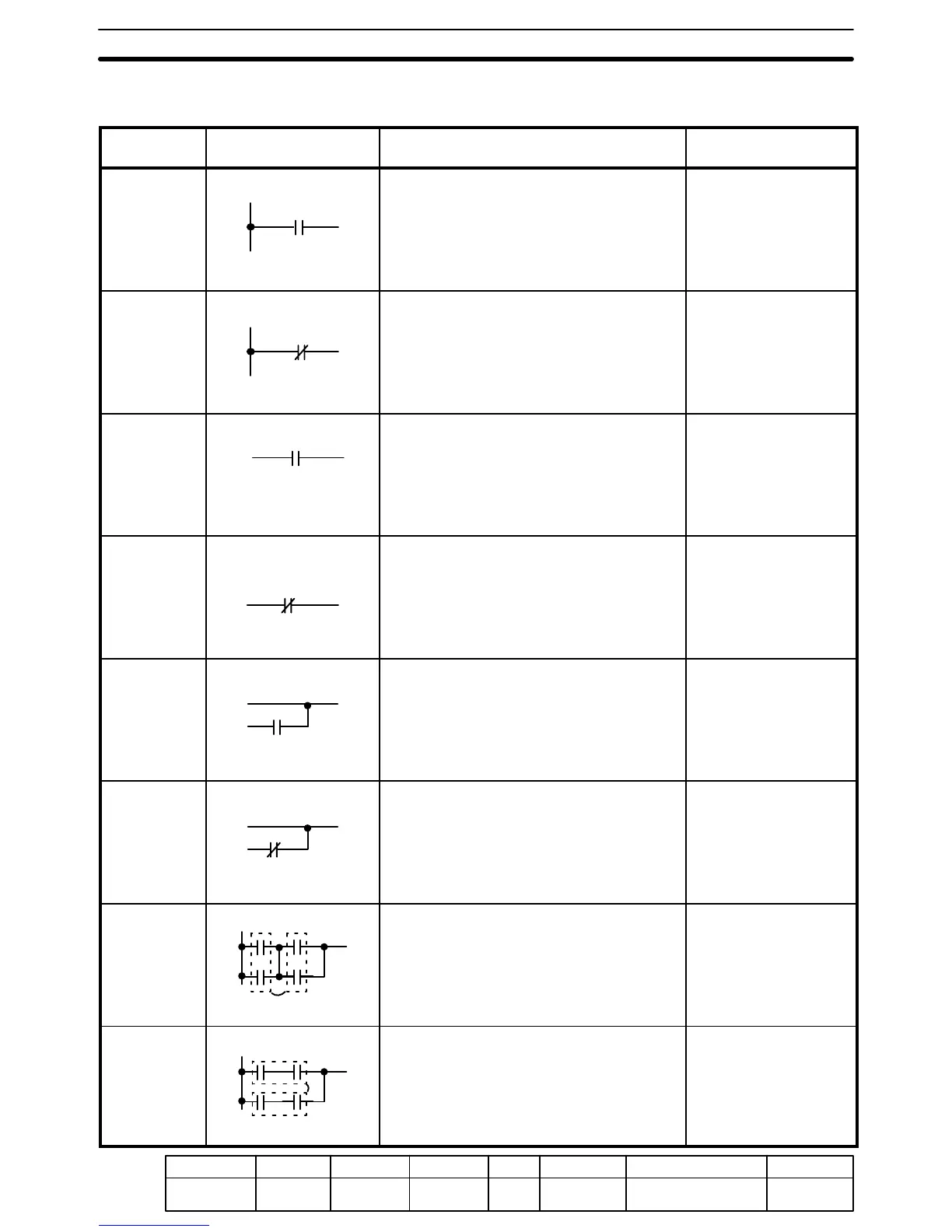

Basic Instructions
Name
Mnemonic
Symbol Function Operands
Load
LD
B
Used to start instruction line with status of des-
ignated bit.
B:
IR
SR
HR
AR
LR
TC
TR
Load NOT
LD NOT
B
Used to start instruction line with inverse of
designated bit.
B:
IR
SR
HR
AR
LR
TC
AND
AND
B
Logically ANDs status of designated bit with
execution condition.
B:
IR
SR
HR
AR
LR
TC
AND NOT
AND NOT
B
Logically ANDs inverse of designated bit with
execution condition.
B:
IR
SR
HR
AR
LR
TC
OR
OR
B
Logically ORs status of designated bit with ex-
ecution condition.
B:
IR
SR
HR
AR
LR
TC
OR NOT
OR NOT
B
Logically ORs inverse of designated bit with
execution condition.
B:
IR
SR
HR
AR
LR
TC
Block AND
AND LD
Logically ANDs results of preceding blocks. None
Block OR
OR LD
Logically ORs results of preceding blocks. None
