171
*Modes in which the given instruction is applicable: R = RUN, M = MONITOR, P = PROGRAM

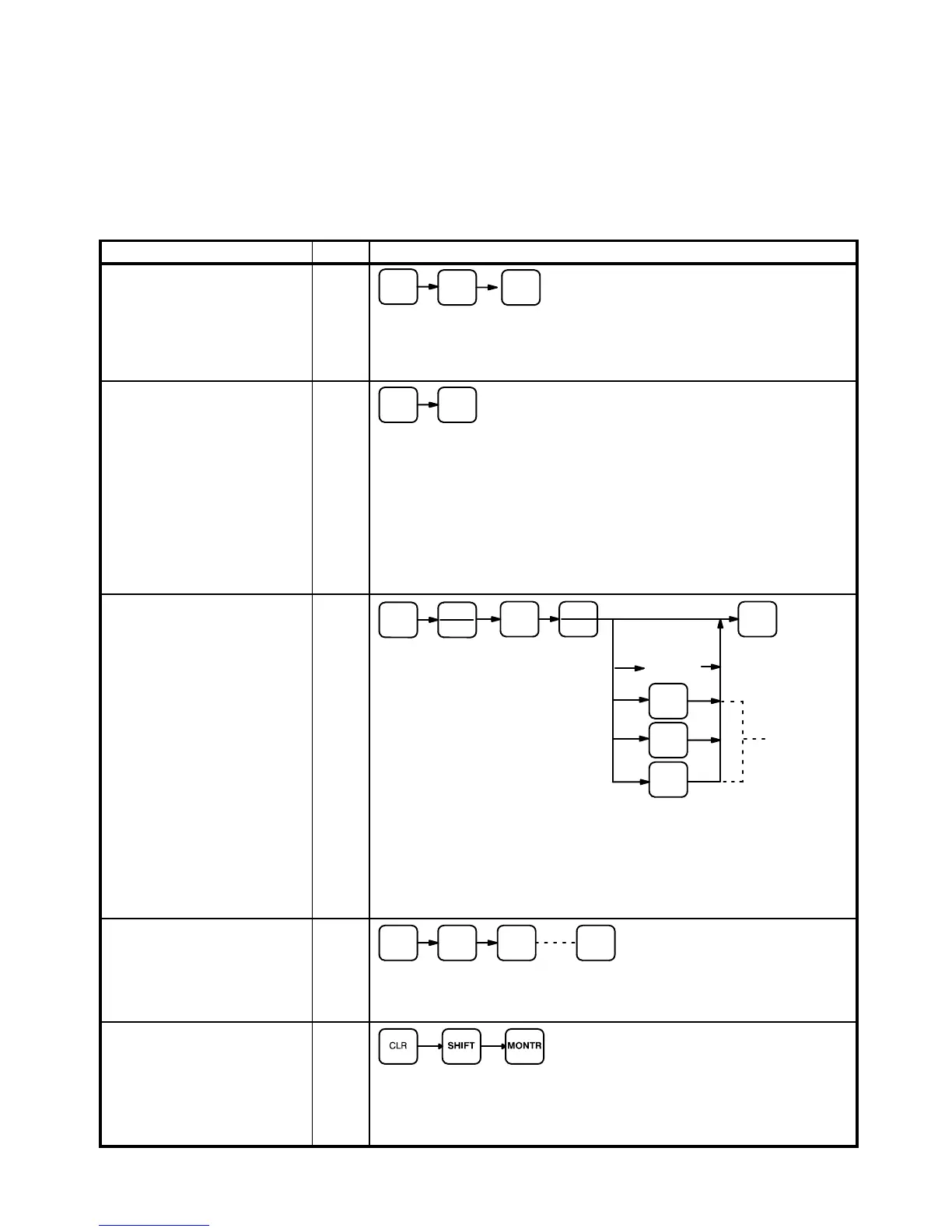

Appendix C
Programming Console Operations
System Operations
Operation/Description Modes* Key sequence
Password Input
Controls access to the PC’s
programming functions. To gain
access to the system once
“PASSWORD” has been
displayed, press CLR, MONTR,
and then CLR.
R M P
CLR
MONTR
CLR
Buzzer ON/OFF
The buzzer can be switched to
operate whenever
Programming Console keys are
pressed (as well as for the
normal error indication). BZ is
displayed in the upper right
corner when the buzzer is
operative. The buzzer can be
enabled by pressing SHIFT and
then 1 immediately after
entering the password or after
changing the mode.
R M P
SHIFT
B
1
Data Clear
Unless otherwise specified, this
operation will clear all erasable
memory in Program Memory
and IR, HR, DM, and TC areas.
To clear EEPROM memory the
write-enable switch must be
ON. The branch lines shown
are used only when performing
a partial memory clear, with
each of the memory areas
entered being retained.
Specifying an address will
result in the Program Memory
from that address on being
deleted. All memory up to that
address will be retained. When
installing a new program, all
memory areas should be
cleared.
P
CLR
PLAY
SET
NOT
REC
RESET
MONTR
HR
CNT
DM
[Address]
Partial
Clear
Retained
if
pressed
All Clear
Error Message Read
Displays error messages in
sequence with most severe
mes-sages displayed first.
Press monitor to access
remaining messages.
R P M
CLR
FUN MONTR MONTR
Program Header Display
Displays the name of the
program, along with the
version number and the time
it was last revised (given in
year, month, day, hour, and
minute).
R P M
To Next Page
