Omron SYSMAC C20P User Manual

Programming Console Operations Appendix C
172

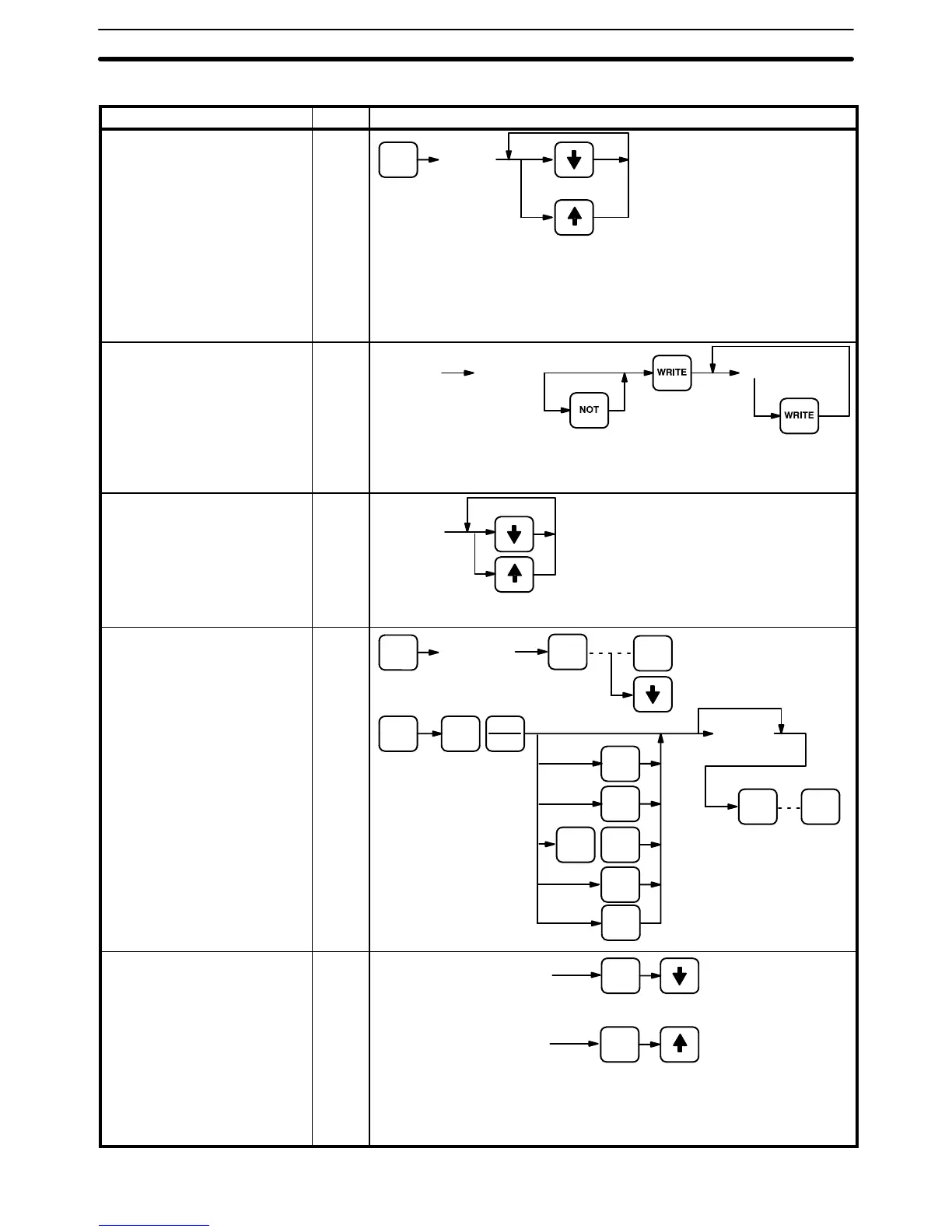

Programming Operations
Operation/Description Modes* Key sequence
Address Designation
Displays the specified address.
Can be used to start
programming from a non-zero
address or to access an
address for editing. Leading
zeros need not be entered. The
contents of the designated
address will not be dislayed
until the down key is pressed.
The up and down keys can then
be used to scroll through the
Program Memory.
R P M
CLR
[Address]
Program Input
Used to enter or edit program
instructions. This operation
overwrites the contents of the
memory at the displayed
address. Input NOT for
differentiated instructions. Input
any operands and press
WRITE after each.
P
[Address
displayed]
[Instruction
word]
[Operand]
Program Read
Allows the user to scroll through
the program
address-by-address. If the
Program Memory is read in
RUN or MONITOR mode, the
ON/OFF status of each
displayed bit is also shown.
R P M
Address
currently
dis-
played
Program Search
Allows the program to be
searched for occurrences of
any desiganted instruction or
data area address. To
designate a bit address, press
SHIFT, CONT/#, and then input
the address, including the data
area code if required. Finally,
press SRCH. Pressing SRCH
again will fnd the next
occurrence. For multiword
instructions, the up and down
keys can be used to scroll
through the words before
continuing the search. If the
Program Memory is in RUN or
MONITOR mode, the ON/OFF
status of each displayed bit will
also be displayed.
R P M
CLR
SRCH
SRCH
CLR
SHIFT
CONT
#
SRCH SRCH
LR
HR
HR
SHIFT
TIM
CNT
[Instruction]
[Address]
(AR)
Instruction Insert/Delete
The displayed instruction can
be deleted, or another
instruction can be inserted
before it. Care should be taken
to avoid inadvertant deletions
as there is no way of recovering
them. When an instruction is
deleted all subsequent
instruction addresses are
adjusted so that there are no
empty addresses.
P
INS
Locate
position in
program
then
enter
DEL
Instruction
currently
displayed
[Enter new
instruction]
