7–8–3 Hexadecimal/BCD Data Modification
When the Bit/Digit Monitor operation is being performed and a BCD or hexa-
decimal value is leftmost on the display, CHG can be input to change the
value. SR words cannot be changed.
If a timer or counter is leftmost on the display, the PV will be displayed and
will be the value changed. See
7–8–4 Changing Timer/Counter SV
for the
procedure to change SV. PV can be changed in MONITOR mode and only
when the timer or counter is operating.
To change contents of the leftmost word address, press CHG, input the de-
sired value, and press WRITE
Key Sequence

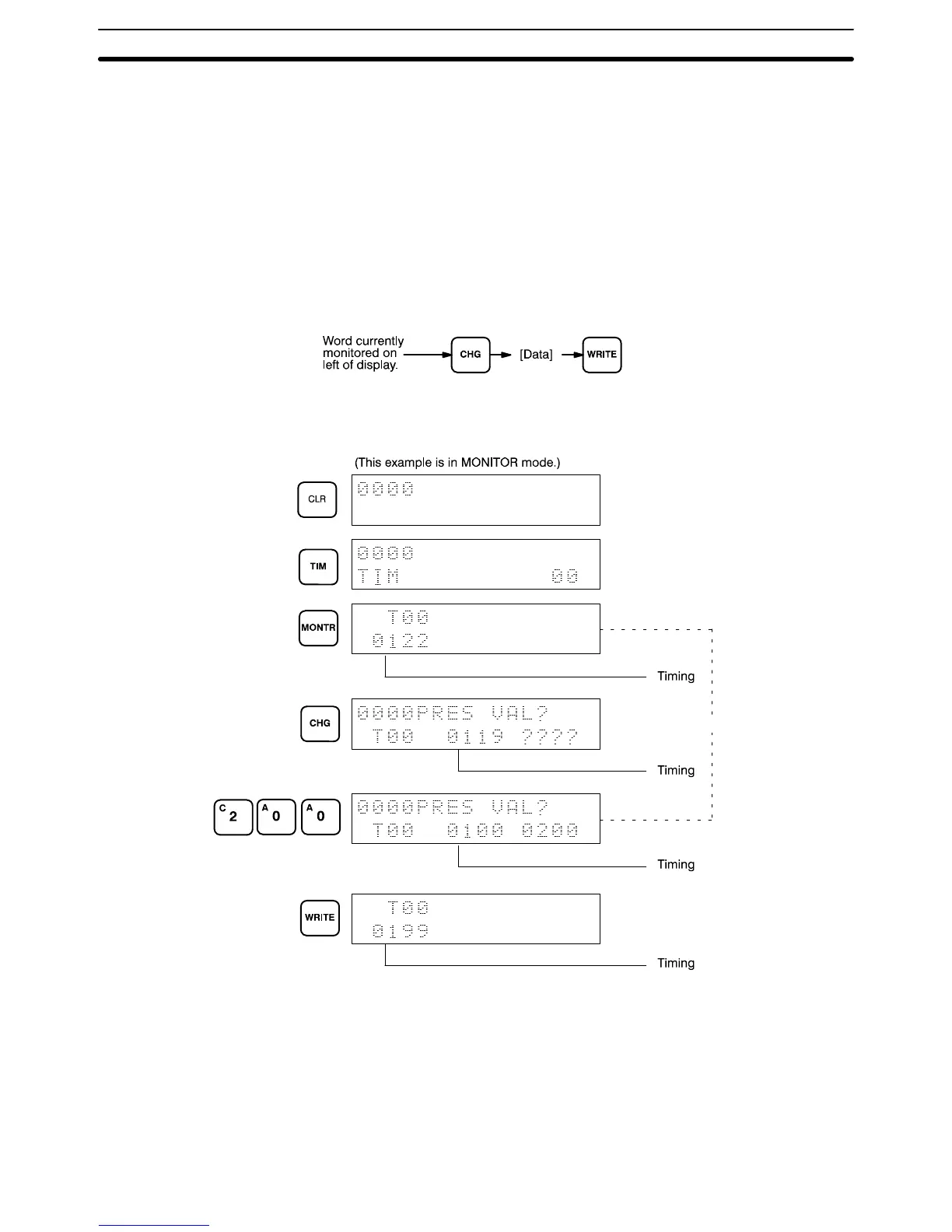

The following example shows the effects of changing the PV of a timer.
PV changed
7–8–4 Changing Timer/Counter SV
The SV of a timer or counter can be changed by inputting a new value nu-
merically when in MONITOR mode. The SV can be changed while the pro-
gram is being executed.
To change the SV, first display the address of the timer or counter whose SV
is to be changed, press the down key, and then press CHG. The new value
can then be input numerically and WRITE pressed to change the SV.
Example
Monitoring Operation and Modifying Data Section 7–7
