146
Exchanging Data with the CPU Unit Section 3-3
Operation Use the following procedure:
1,2,3... 1. Register the CPU Unit I/O memory address that will be read/written from
the Loop Controller in the User Link Table.
2-1.Paste the User Link Table function block, make a software connection for
the analog value just by specifying the tag name. Data can be exchanged
with the CPU Unit's I/O memory area just by making a software connec-
tion to the analog value.
2-2.Use a contact or an analog value in the sequence table.
Data in the CPU Unit's I/O memory area can be used in a condition
expression or action expression just by specifying the tag name in the
sequence table.

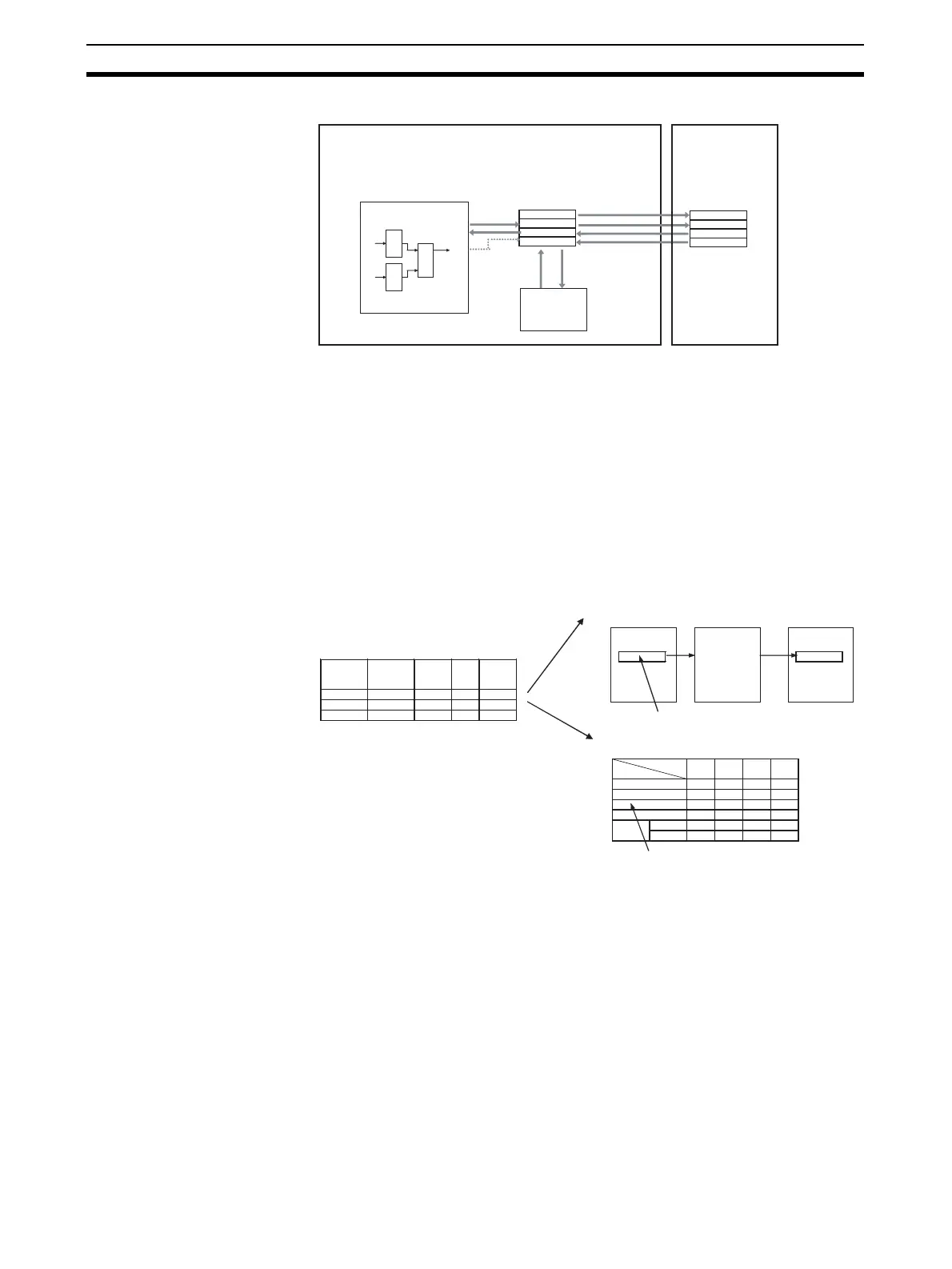

When creating block diagrams with the CX-Process Tool, the User Link Table
data can be created and specified automatically within the Loop Controller if a
connection is made by virtually pasting a Field Terminal Block such as DI, DO,
AI, or AO. This method also allows the data exchanged with the CPU Unit to
be managed by tag names.
CPU Unit Loop Controller
Sequence table
The following methods
can be specified for
each tag's read/write
timing.
A Always read/write
or
B Read/write when the
CPU Unit's data changes.
or
C Read/write when the
sync input goes ON.
Tag A
Tag B
Tag C
I/O memory
User Link Table
Data can be
read/written
to function
block ITEMs.
If timing method 3
(below) is selected,
the CPU Unit data
area read/write
timing can be
synchronized
with an ITEM.
Function Block data
A User Link Table registration
TagA D00100
0
3000
TagB D00200 500
TagC
User Link Table
Tag A
Function Block User Link Table
Tag B
B-1 Software Connection in Block Diagram
B-2 Specifying Tags in a Sequence Table
Rule
Signal
00 01 02
STEP 01
Tag A = 1200
THEN 02NEXT
STEP
ELSE
Specify tag name.
Read
Write
0
:
Y
Specify tag name.
Tag
name
CPU
Unit
address
Read/
Write
0%
range
100%
range
