Omron SYSMAC CS Series - Page 186

154
Exchanging Data with the CPU Unit Section 3-3

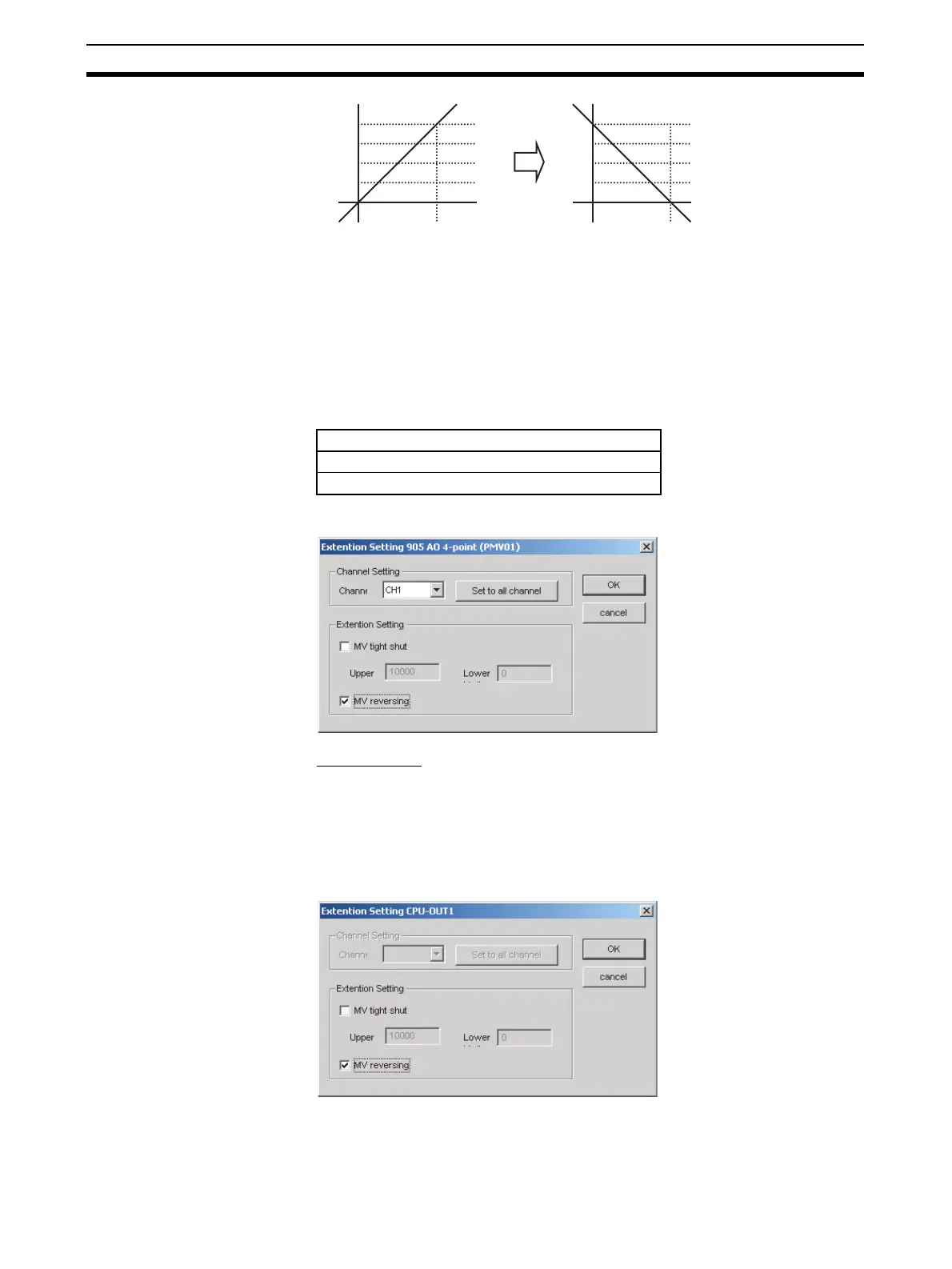

Setting Analog Output
Reversing from the CX-
Process Tool
Method 1: Setting from the ITEM Setting Window for the Field Terminal
(Analog Output Terminal) (See note.)
Right-click in the ITEM Setting Window for the Field Terminal (Analog Output
Terminal) and select Expansion Settings.
Note The following table shows the applicable Field Terminals (Analog Output Ter-
minals).
The following dialog box will be displayed.
MV Reversing
Output can be reversed so that when the output value is 100.00%, 0.00% is
output, and when the output value is 0.00%, 100.00% is output.
Method 2: Setting from the User Link Table
Right-click in the User Link Table and select Edit - Expansion.
The following dialog box will be displayed.
100%
0%
100%
0%
100%
100%
Output value
(
before reversin
g)
Output value
(after reversing)
Field Terminal name
AO 4-point Terminal (PMV01) (Block Model 563)
AO 4-point Terminal (PMV02) (Block Model 565)
