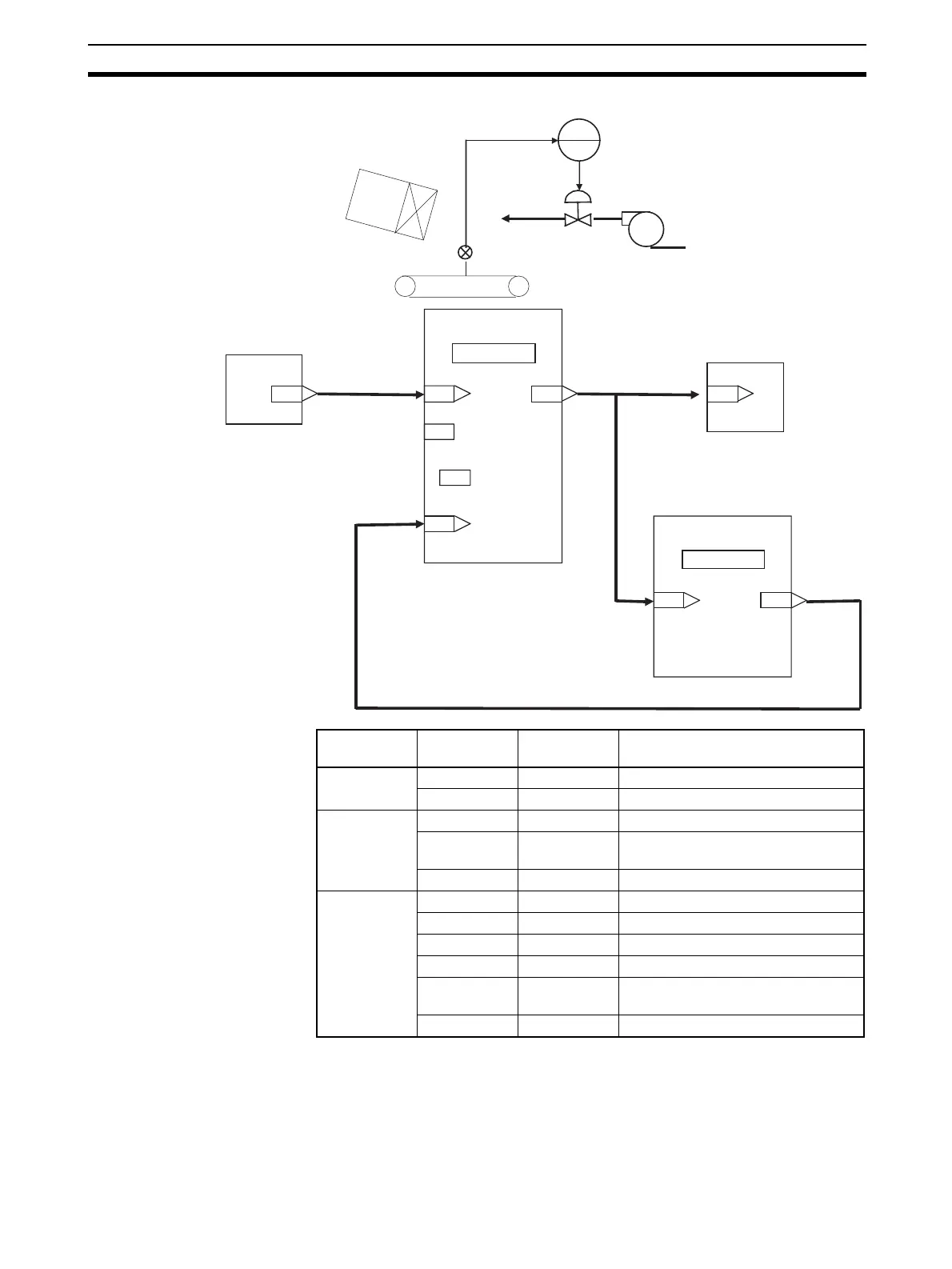

Examples of Applied Control Types Section 5-2
Example
PID
MV
PV
Air
Rotary drier
Moisture meter
Analog
output
Analog
input
021
007
Dead Time Compensation
<Block Model 149>
014
006
Advanced PID
<Block Model 012>
Address 001
087
MV
PV compensation switch
PV
021
046
047
045
PV compensation mode: "Add"
PV compensation input
Address 101
Block
address
ITEM No. Data Explanation
901 002 586 AI 4-point Terminal block
021 Y1 (analog input 1)
902 002 587 AO 4-point terminal block
021 001087 X1 (analog output 1) source designa-
tion
031 X1 (analog output 1)
001 002 012 Advanced PID block
006 901021 PV source designation
045 1 PV compensation system (add)
046 PV compensation switch
047 100014 PV compensation input source des-
ignation
087 MV
