How to Use the Sequence Table Block Appendix B

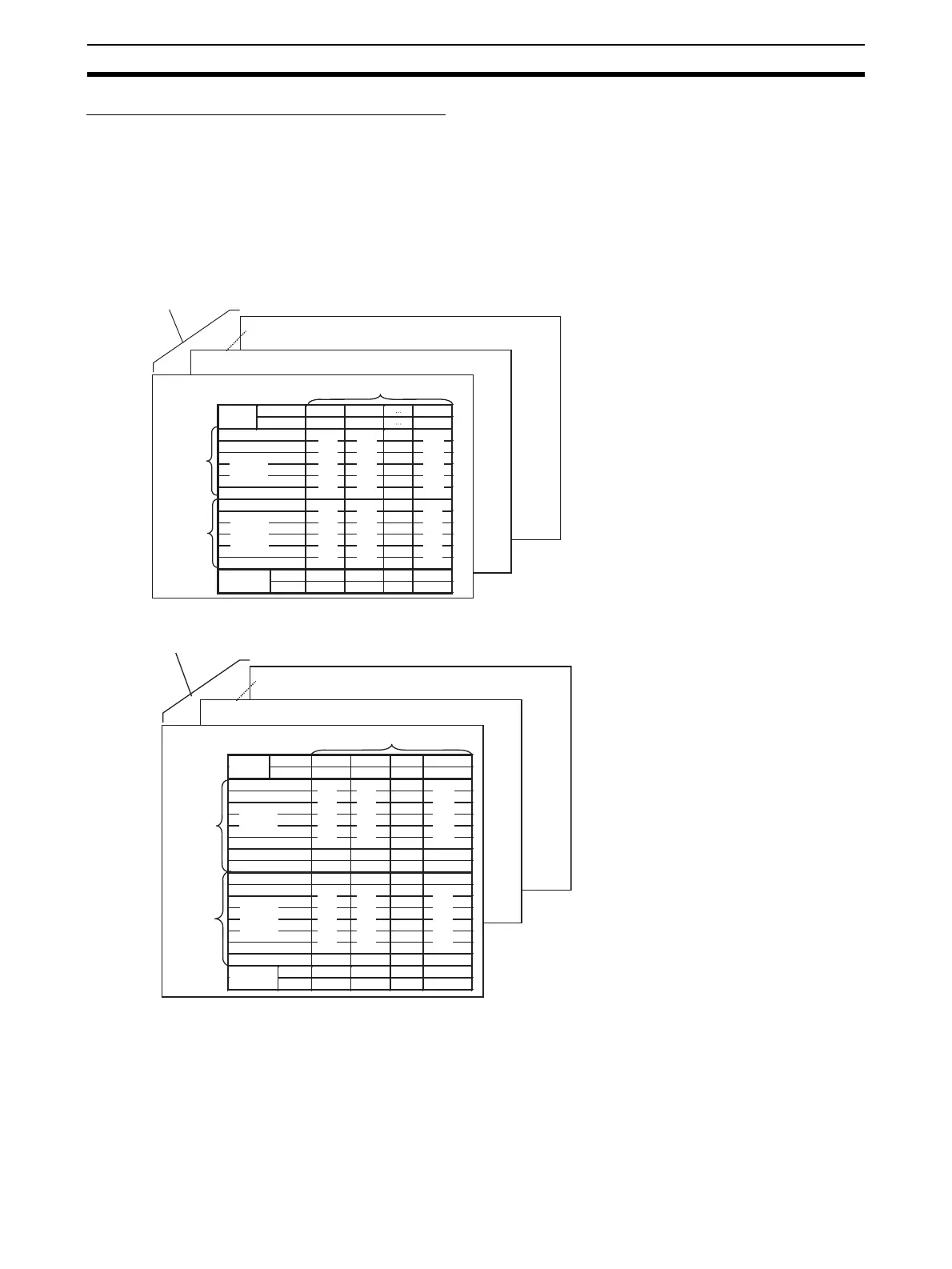

Basic Structure of the Sequence Tables
Only the LCB05/05D supports sequence tables. With the standard table settings, up to 200 tables combining
main tables and reference tables can be used and each table can have up to 32 rules (with up to 32 conditions
and 32 actions).
It is also possible to specify expanded settings for up to 64 rules (and up to 64 conditions/actions) in each table.
If expanded settings are used, the maximum number of tables is reduced. If just the rules column or conditions/
actions column is expanded, the expanded table occupies two standard tables. If both just the rules column
and conditions/actions column are expanded, the expanded table occupies four standard tables.
Standard
Only Conditions/Actions Columns Expanded
Note To expand the number of conditions and actions in a table, use the CX-Process Tool and select Expand
- Vertical from the Operation Menu.
Table number
LCB05/05D: 200 tables max.
Rule 1 2 N
Symbol
Step 00
64 max.
THEN To M
NEXT STEP
ELSE
Condition rule 2 Condition rule 1
Condition
signals
32 actions
max.
32 rules max. and 32 steps max.
32 conditions
max.
Table number
Action rule 2 Action rule 1
Condition rule
32
Action rule
32
Table number
Action
signals
Table number
LCB05/05D: 100 tables max.
Rule 1 2 - - - 32
Symbol
Step 00 - - - 32 max.
THEN To M
NEXT STEP
ELSE
64 actions
max.
32 rules max. and 32 steps max.
64 conditions
max.
Table number
Table number
Condition rule 2 Condition rule 1
Condition
signals
Action rule 2 Action rule 1
Condition rule
32
Action rule
32
Action
signals
