How to Use the Sequence Table Block Appendix B
Conditions Section
Inputs
Enter input conditions with either of the following formats.
IN (designation)
TBL (block address)
Note Any of the following parameters can be specified as the designation.
• Function block address.ITEM number
• CSV tag name.Tag ITEM
• User Link Table tag name
• Element numbers that have been set in Element Mode and the following status bits

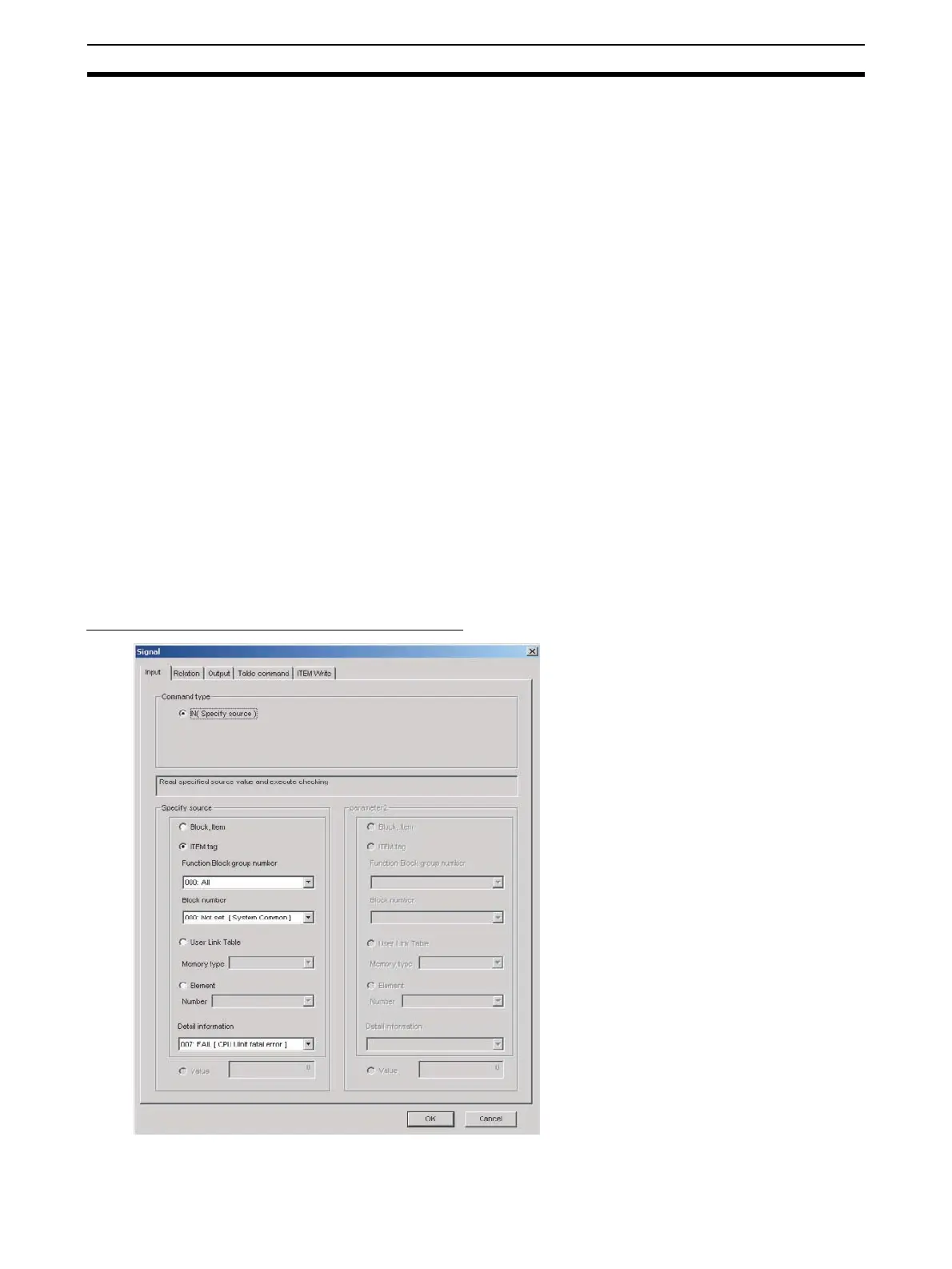

The CX-Process Tool's Input Tab Settings
Timer HI: Timer completion flag
LO: Pre-alarm occurring
NR: Timing
IO: Stopped
PS: Paused
Counter HI: Counter completion flag
LO: Pre-alarm occurring
NR: Counting
IO: Stopped
