7-6SectionPulse Outputs
102
One-shot Pulse Outputs
Item Specification
Number of pulse
outputs
2 outputs (Port 1 = pulse output 1, port 2 = pulse output 2)
External power
supply
24 VDC +10%/–15%, 30 mA max.
Max. switching
capacity
NPN open-collector, 80 mA at 5 to 24 VDC ±10%
Min. switching
capacity
NPN open-collector, 7 mA at 5 to 24 VDC ±10%
Leakage current 0.1 mA max.
Residual voltage 0.4 V max.
Output pulse
width
Set time ± (1 µs or 0.1% of set time, whichever is larger)

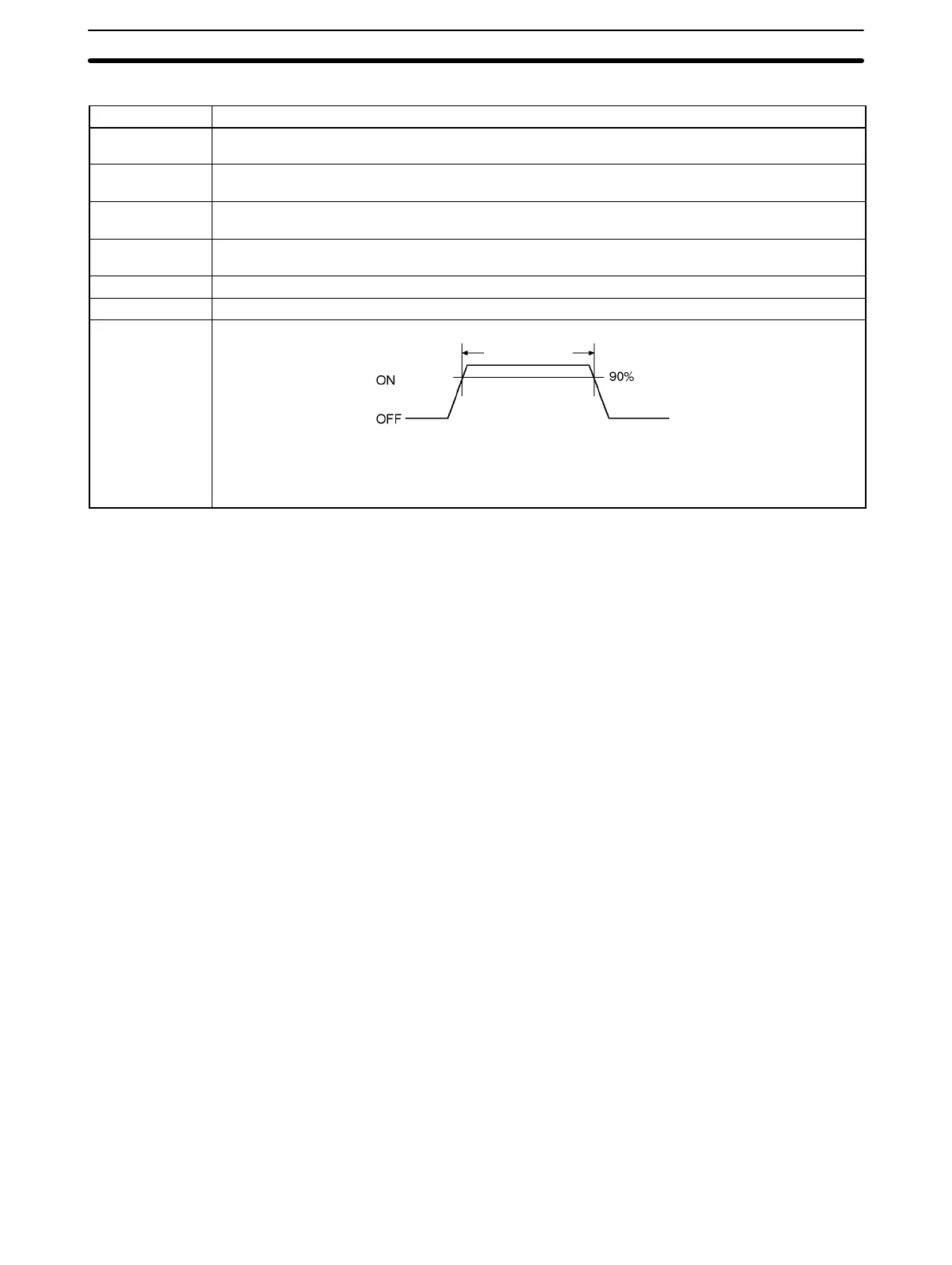

Output pulse width
Note 1. The above loads are assumed to be simple resistive loads and the impedance of the cable
connecting the load is not considered.
2. The actual pulse widths may be smaller than those specified above due to pulse form distor-
tion caused by connection cable impedance.
