B-5
Appendices
V430-F Series Autofocus Multicode Reader User Manual for Communication Settings

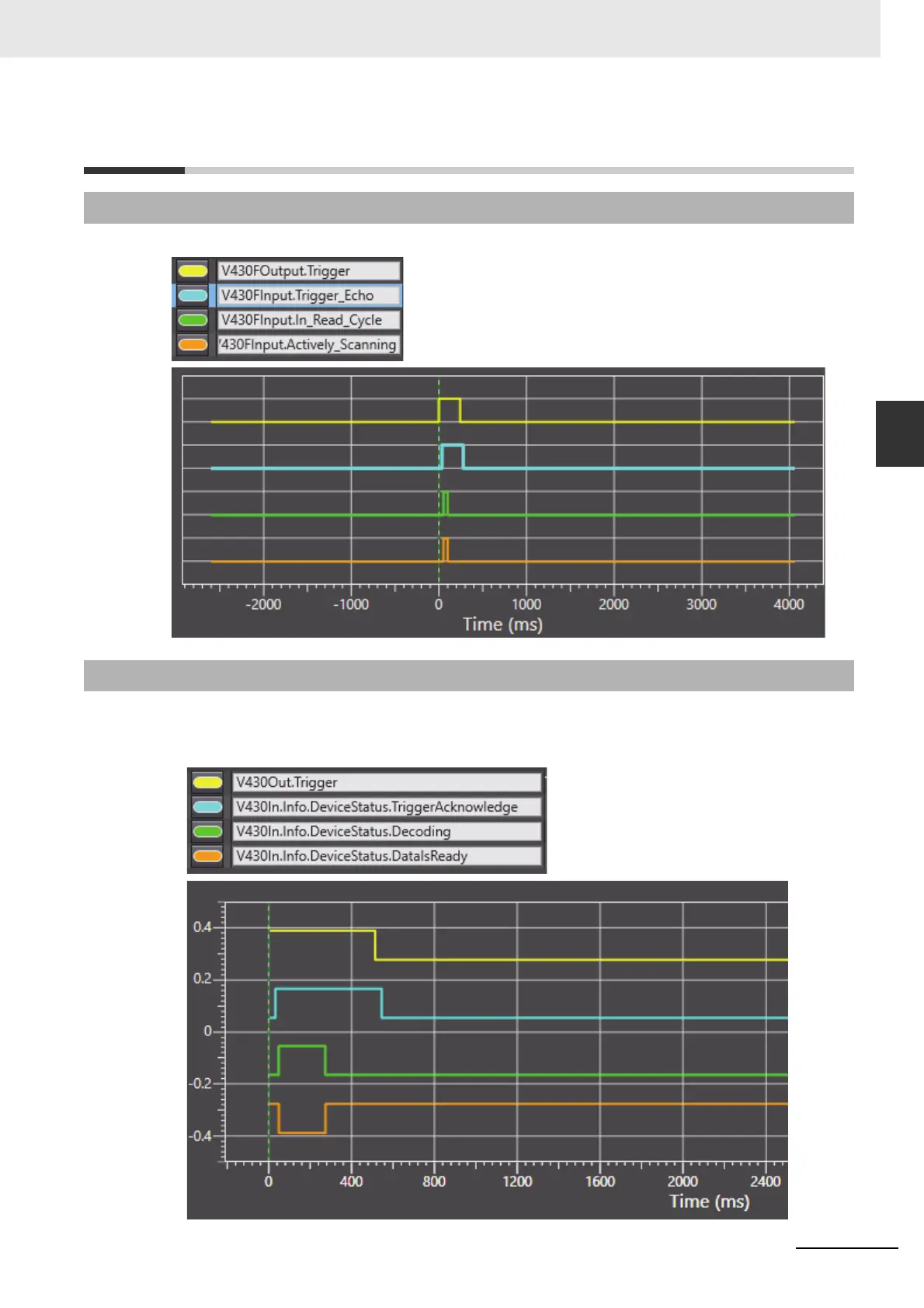

B-4 Timing Diagrams
B
B-4-1 Input Big Legacy Timing
B-4 Timing Diagrams
As the Legacy Input modules have very little user feedback, timing is limited.
B-4-1 Big Legacy Input Module
B-4-2 Omron Decode Input Module
• In this example, the trigger is set high for 513 ms.
• The trigger was acknowledged 35 ms after trigger high and stays high 35 ms after trigger low.
• Dec
oding is completed and data is ready 277 ms after trigger start.
