ON for 500ms at 2000ms intervals.
PV PV PV PV
1. Output1
Diagnostic
Warning
Use as Ext.Illumination Strobe - (Output 3 Signal Only)
Outputs the signal used to illuminate with external lighting. After enabling Output 3 as Ext.
Illumination Strobe, by default, this output will be ON during the camera exposure time. In this mode,
changing the exposure time also changes the ON time for Output 3.
For advanced applications where more control over Output 3 is required, the Illumination brightness
can be set to Extreme, which will enable the Fixed Light On and Delay Times.
The illumination time length is dependent on the setting for Fixed Light On Time and its timing is
dependent on the setting for Fixed Light Delay Time.
The setting selected for Output Mode is disabled.
• WebLink - Setup - Gear Icon - Advanced Settings - Camera Setup - Lighting
Setting Item Setting Value Description
Light Source External Strobe Service Message is not used.
Fixed Light On Time 1 to 100000μs The signal is ON during imaging only for the time set.
Fixed Light Delay
Time
1 to 100000μs The signal turns ON during imaging only after the time set.
Below is an Output assignment example and Timing chart.
[Example assignment of OUTPUT signals]
• Output 1: In Read Cycle
• Output 2: On Match (or On Good Read) Output Mode: Pulse (500ms)
• Output 3: Use as Ext. Illumination Strobe Fixed Light On Time: 100000μs
Fixed Light Delay
Time: 5000μs
For how to set up the Output signal assignments, please refer to How to Assign the Output Signals on
page 2 - 10

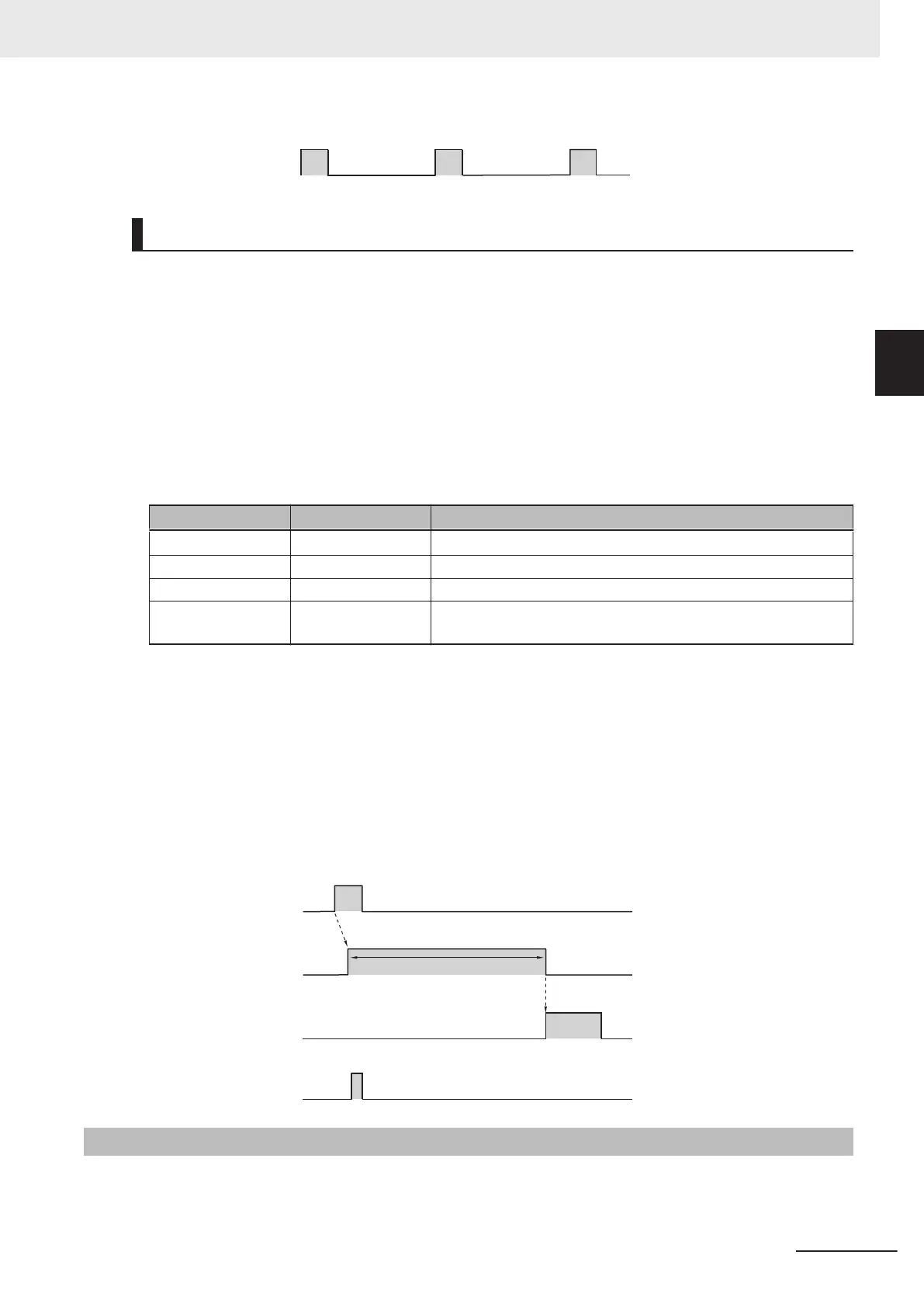

<Timing Chart>
1. Trigger input
(TRIG signal)
2. Output1
In Read Cycle
3. Output2
Match
(or Good Read)
OFF
ON
OFF
ON
OFF
ON
In Read Cycle
Turns ON on Good Read.
Read executed by Trigger Input.
OFF
ON
4. Output3
Use as Ext.
Illumination Strobe
From 5ms after start of Read Cycle, ON for 100ms.
2-1-8
Change the ON/OFF timing of the Output Signal (Output 1 to 3)
Set/Change the length of time the signals assigned to Outputs 1 to 3 are in an ON state and the timing
of when they turn OFF.
2 Controlling Operation and Data Output with Parallel
2 - 17
V430-F Series Autofocus Multicode Reader User Manual for Communication Settings
2-1 Controlling Operation and Data Output
with Parallel
2
2-1-8 Change the ON/OFF timing of the Output Signal (Output 1 to 3)
Illumination Brightness Extreme Provides ability to set a fixed light-on time and fixed light delay time.
