Omron V430-F Series User Manual For Communication Settings

2-1-2
Wiring and Electrical Specifications for Parallel I/O

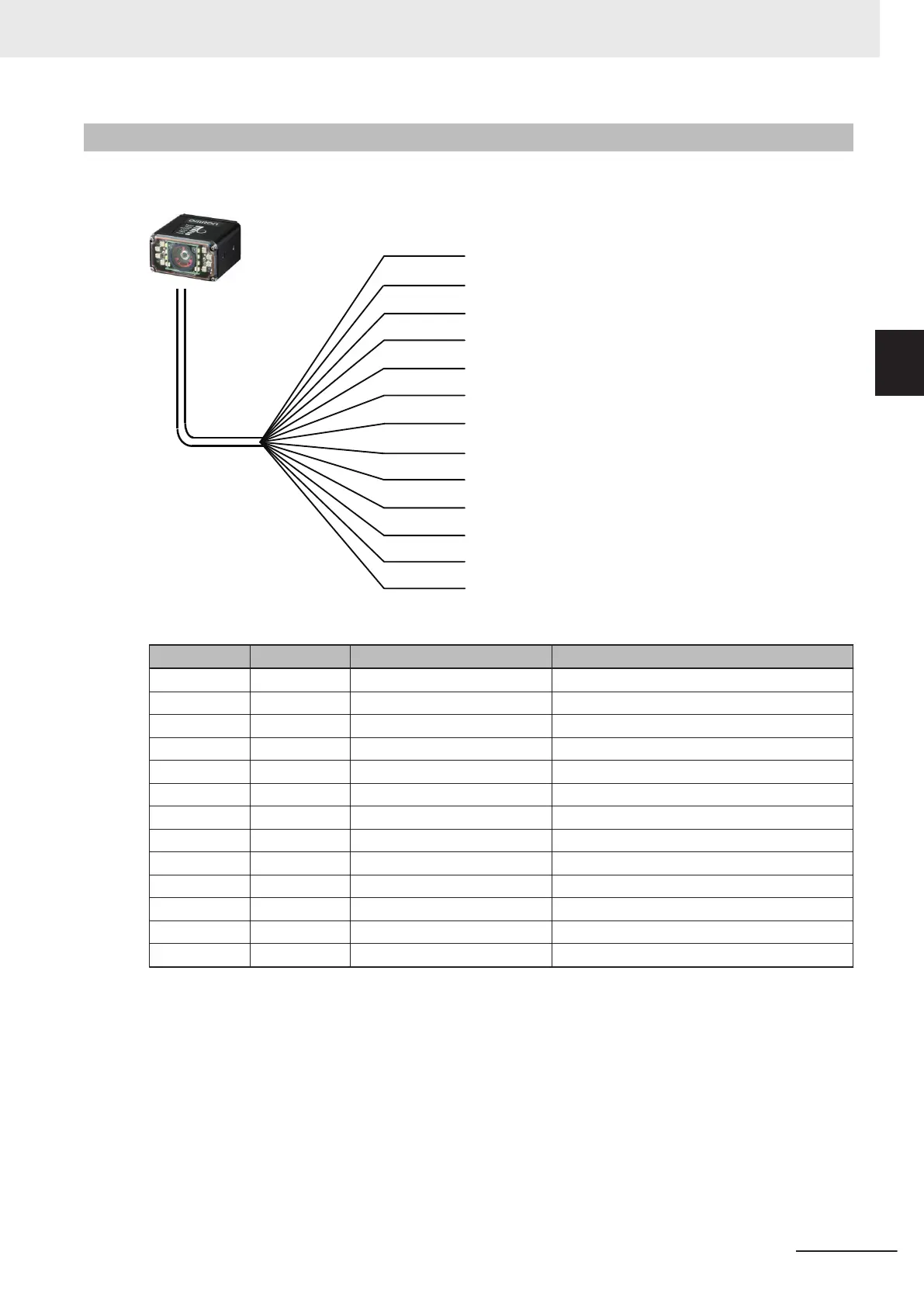

The following is the wiring diagram of the power cable to connect to the code reader (All V430-W8).
Code Reader
Brown 24V
Blue 0V
Red COM_IN
Red / Black COM_OUT
White TRIG
Black HOST_RxD
Purple HOST_TxD
Gray OUTPUT1
Gray / Red OUTPUT2
Pink OUTPUT3
Green DEFAULT
Yellow NEW MASTER
None (Shield)
Colors for each wire
Wire color Pin No. Signal Name Function
Brown 2 24V Power supply
Blue 7 0V GND
Red 8 COM_IN Common Input Signals (Input Common)
Red / Black 12 COM_OUT Common Output Signals (Output Common)
White 1 TRIG Read Trigger Input (Trigger)
Black 9 HOST_RxD Receive Data (RS-232(Host) RxD)
Purple 10 HOST_TxD Transmit Data (RS-232(Host) TxD)
Gray 5 OUTPUT 1 (Output 1)
Gray / Red 11 OUTPUT 2 (Output 2)
Pink 6 OUTPUT 3 (Output 3)
Green 3 DEFAULT (Default)
Yellow 4 NEW MASTER (New Master)
None ‐ ‐ (Shield)
2 Controlling Operation and Data Output with Parallel
2 - 3
V430-F Series Autofocus Multicode Reader User Manual for Communication Settings
2-1 Controlling Operation and Data Output
with Parallel
2
2-1-2 Wiring and Electrical Specifications for Parallel I/O
