Omron V430-F Series User Manual For Communication Settings

1-1
Confirming the System Configuration
This product is a multi-code reader that captures images of 1D symbols (barcodes) and 2D Symbols
and reads and processes their embedded data.
In a system configuration in which it is connected to a PLC, PC, or other external device, serial com-
mands can be received from, and code reading results can be output to the external device.
1-1-1

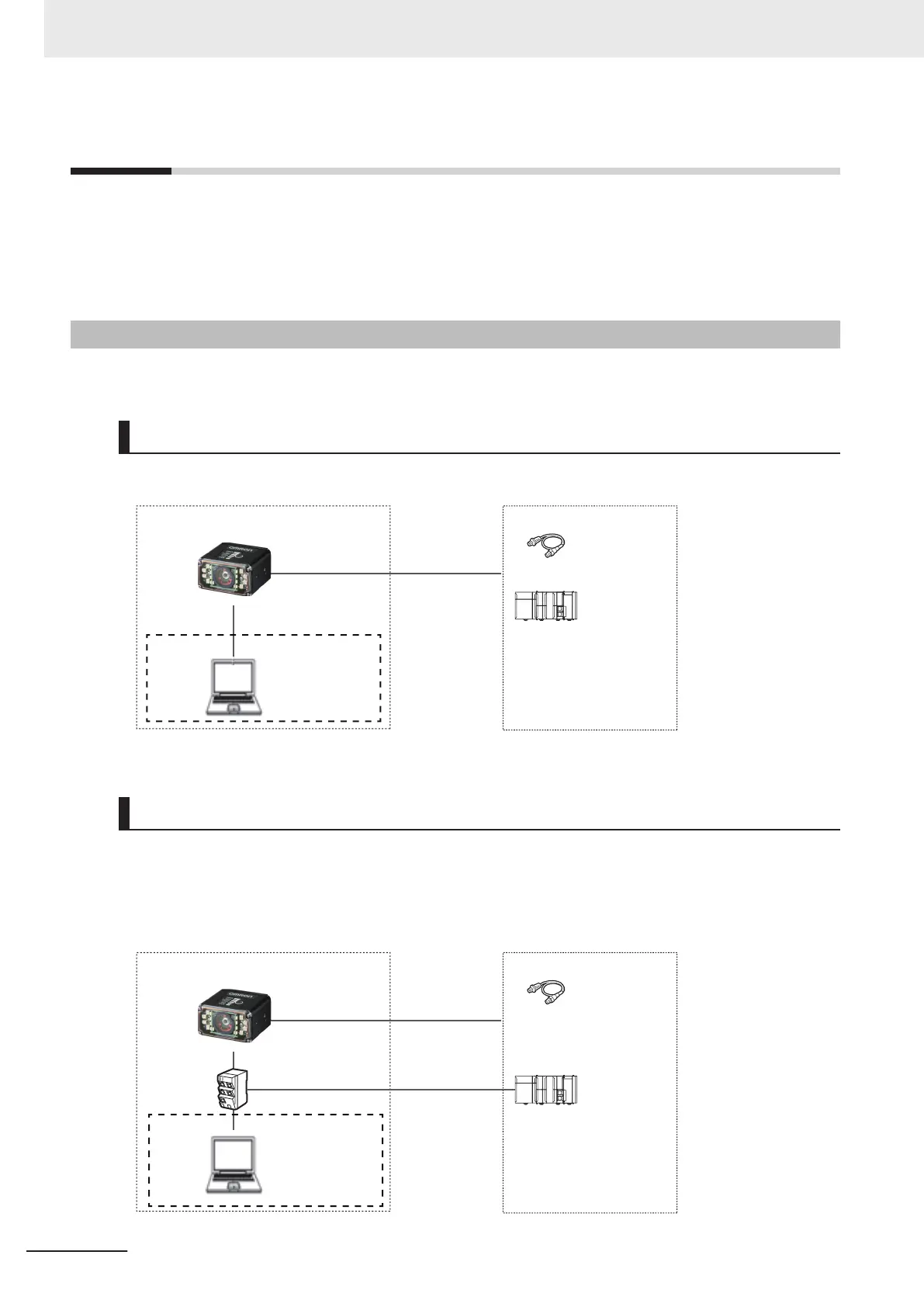

V430-F Series System Configuration
The V430-F can be used in the following types of system configurations.
Connection using Parallel I/O Interface
Trigger inputs and OK/NG Judgement result outputs are received and sent over I/O cable.
I/O control PLC
I/O cable
Basic configuration
Code Reader
External devices
Trigger sensor
WebLink or ESP
*1
Computer
Special Ethernet cable
*1 If monitor display is not required, it is not necessary to connect with a PC during operation.
Connecting over Ethernet (EtherNet/IP, Serial (TCP), PROFINET)
Establish network connections via an Ethernet cable to input triggers and communication commands
and to output reading results (Judgment results and decoded content). Triggers can also be input over
parallel I/O. Using the data link function for each network (excluding Serial), data transfer can be done
periodically between the code reader and the external device.
Switching hub
for EtherNet/IP
(industrial
Ethernet)
*1
Basic configuration
Code Reader
I/O control PLC
I/O cable
Trigger sensor
Special Ethernet cable
General-purpose
Ethernet cable
General-purpose
Ethernet cable
WebLink or ESP
Computer
External devices
1 Communication Specifications Overview
1 - 2
V430-F Series Autofocus Multicode Reader User Manual for Communication Settings
