Omron V430-F Series User Manual For Communication Settings

Using WebLink to Set Up EtherNet/IP Communication
• WebLink - Setup - Gear Icon - Advanced Settings
- Communications - Ethernet
Setting Item Setting Value Description
EtherNet/IP
• Enabled
• Disabled
• Enabled: EtherNet/IP connectivity is enabled on the code read-
er.
• Disabled: EtherNet/IP connectivity is disabled on the code
reader.
Ethernet/IP Byte
Swapping
• Enabled
• Disabled
• Enabled:
Byte Swapping is enabled for the Read data.
The Read data is stored in Decode Data in Little endian format.
This is used when the Endian of the CPU architecture is difer-
ent from that of the Read data.
• Disabled:
Byte Swapping is disabled for the Read data.
The Read data is stored in Decode Data in Big endian format.

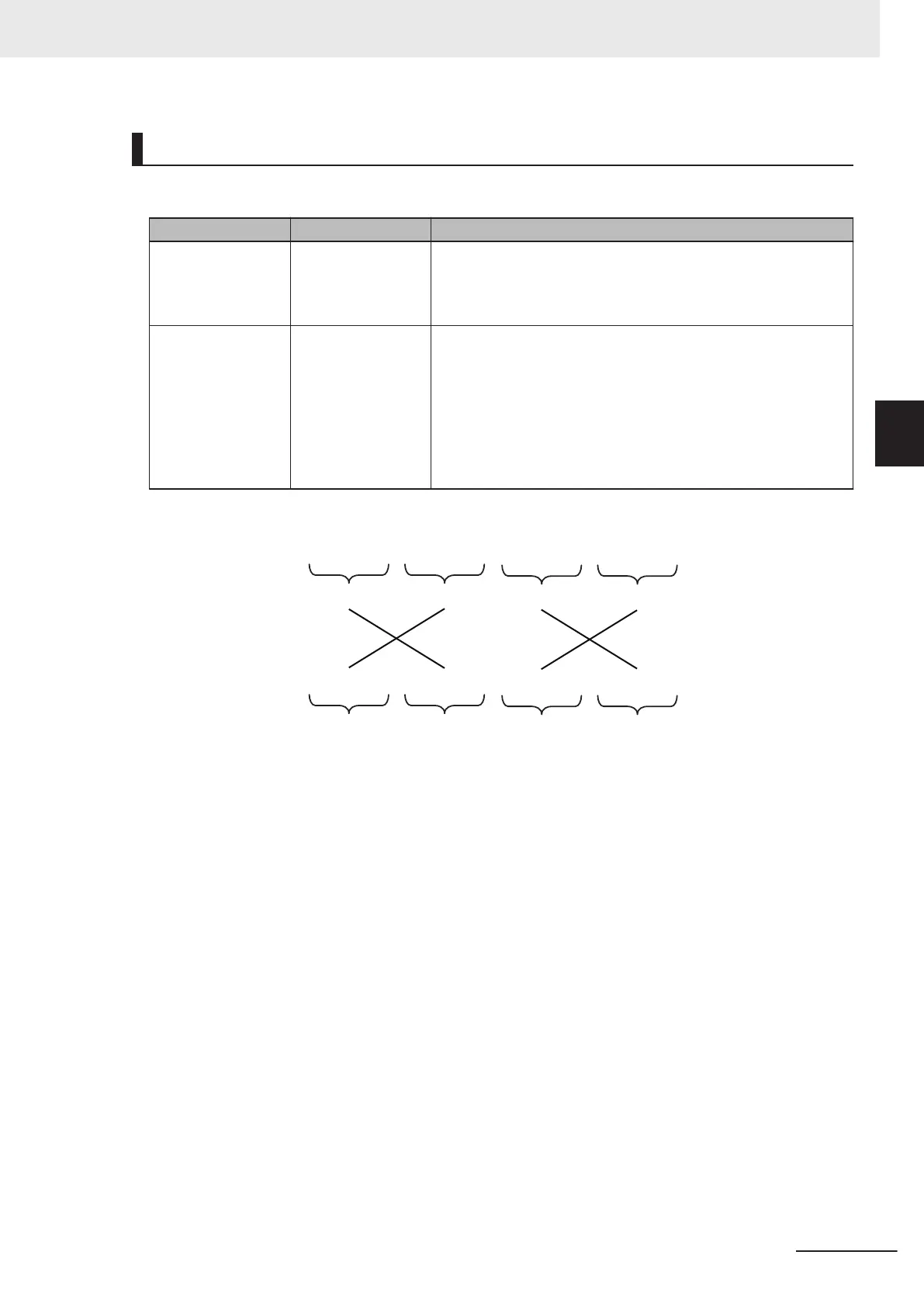

When Byte Swapping is used, the output changes as follows.
Example: Where the character string of the read code is 0123
00110010001100010011010000110011Byte Swapping: Enabled
1302
00110001001100100011001100110100Byte Swapping: Disabled
0213
