Omron V430-F Series User Manual For Communication Settings

 MXL/SLC Input Assembly (102) through N Decode Input Assembly (105)

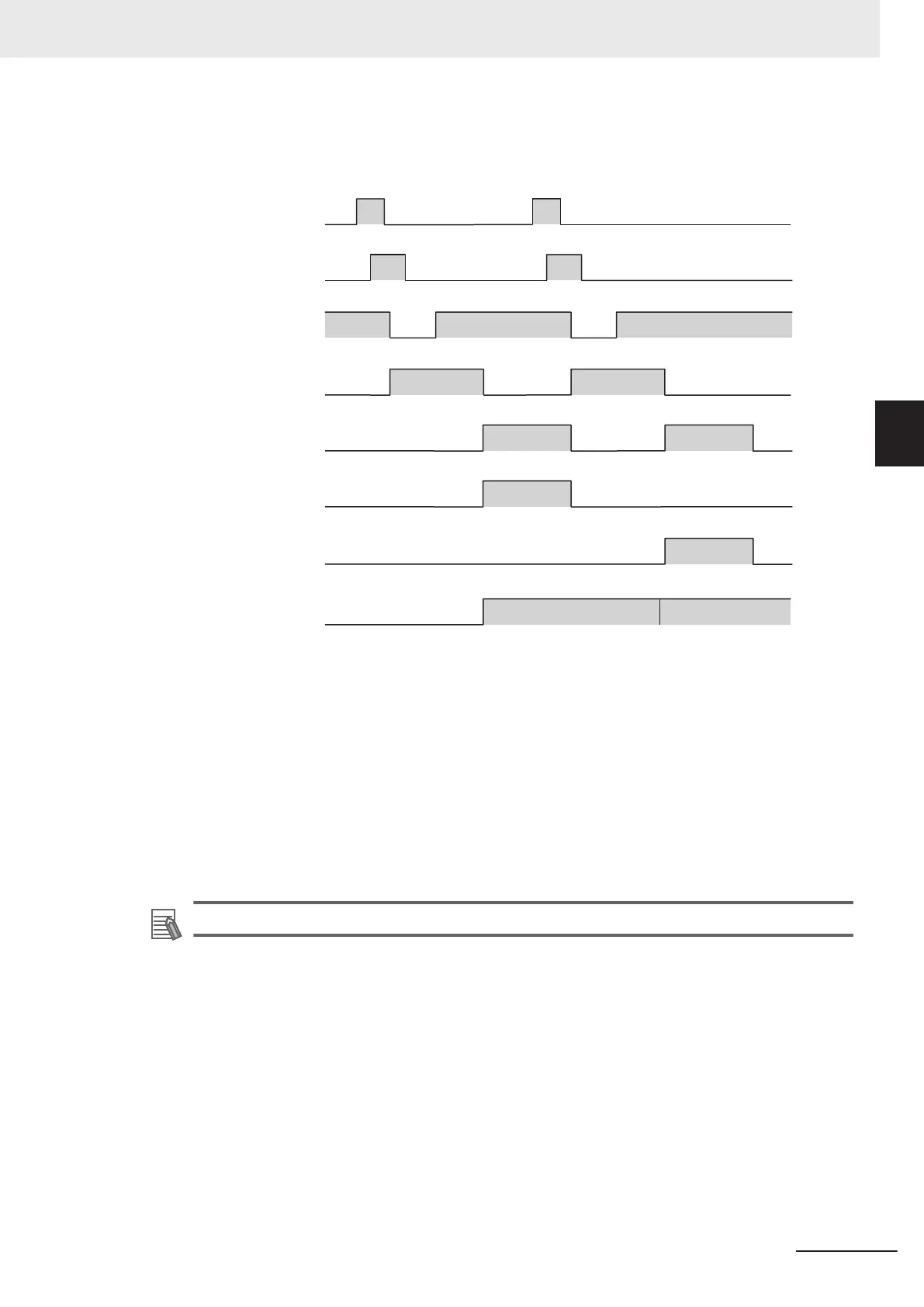

It is output at the timing of the Device Status - InReadCycle bit turning from ON → OFF.
Trigger
OFF
ON
Decode Date
Executes Read
Read data
Read data
Decoding
OFF
ON
Turns ON during Decode process (including Exposure).
Trigger
A
cknowledged
OFF
ON
Turns ON if Trigger ON is detected and OFF if OFF is detected.
Exposure Done
OFF
ON
Turns OFF during Exposure and ON after Exposure Complete.
Data is Ready
OFF
ON
Turns ON at same time Read Cycle Pass/Read Cycle Fail/Decode Data are confirmed.
Read Cycle Pass
OFF
ON
Turns ON on Good Read.
Read Cycle Fail
OFF
ON
Turns ON on No Read.
(1) Reading starts at the rising edge of the Trigger.
(2) Trigger Acknowledged turns ON when Trigger ON is detected and turns OFF when Trigger
OFF is detected.
(3) ExposureDone turns OFF when exposure starts and turns ON when exposure completes.
(4) Decoding is ON during decoding processing. The Decoding process overlaps the Exposure
process.
(5) Data is Ready turns ON at the same time Decode Data / Read Cycle Pass or Read Cycle is
confirmed.
(6) Read Cycle Pass turns ON when there is a Good Read and Read Cycle Fail turns ON when
there is a NoRead. The Read data is stored in Decode Data.
Additional Information
There can be up to a 10ms delay in the Output timing of the Symbol data.
(7) When the next Trigger is detected, Data is Ready turns OFF.
3 Controlling Operation and Data Output with Ethernet
3 - 13
V430-F Series Autofocus Multicode Reader User Manual for Communication Settings
3-1 Controlling Operation and Data Output with Ether-
Net/IP
3
3-1-7 Timing Charts by Assembly Type
