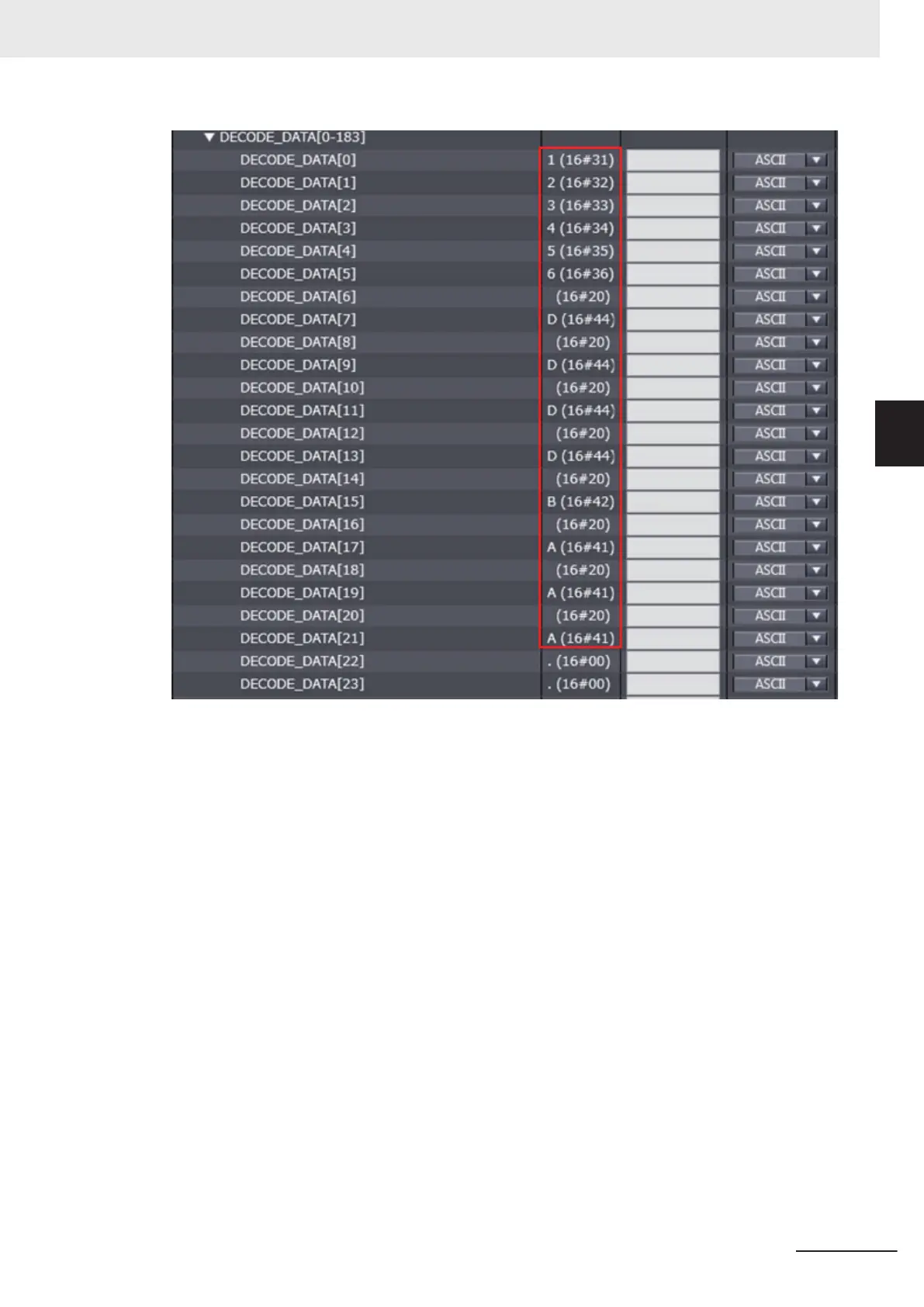

Read 4 Codes and Store the Read String Output on the PLC
<Example of Tag Sets and Connection Settings>
• Input Assembly: 4 Decode Input Assembly (104)
•
Output Assembly: Output Assembly (197)
3 Controlling Operation and Data Output with Ethernet
3 - 21
V430-F Series Autofocus Multicode Reader User Manual for Communication Settings
3-1 Controlling Operation and Data Output with Ether-
Net/IP
3
3-1-9 Accessing the NJ-series Controller Communication Areas using Variables
