Section 7
Cannot Display th
e Web Browser Operation Wind
ow
(3)

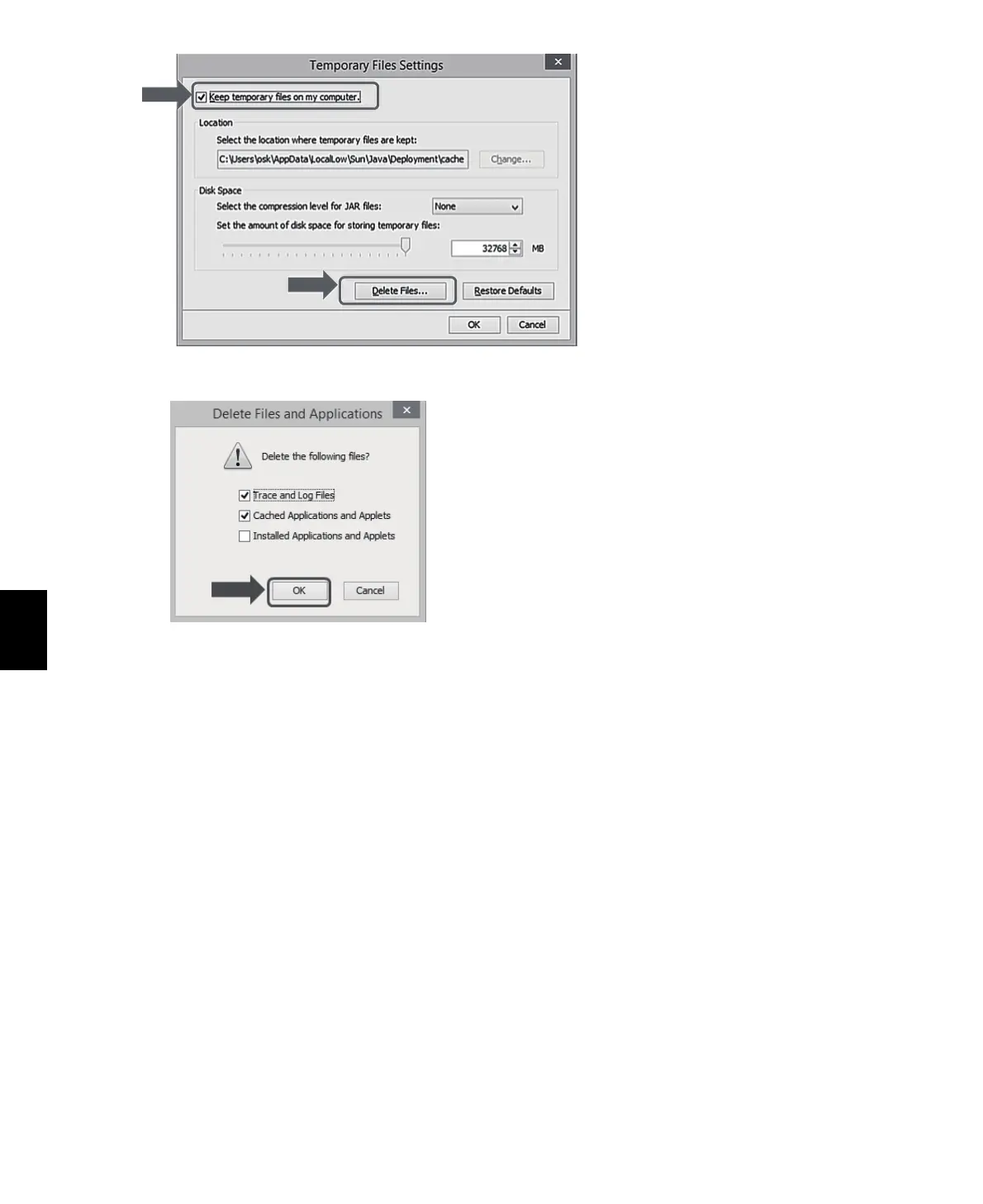

Select the
K
eep temp
orar
y files on my computer
Check Bo
x and click the
Dele
te Files
Butt
on.
(4)
Click the
OK
Button.
(5)
When the files ha
ve be
en deleted, click the
OK
Button and close
all windows. Then, restar
t the
W
eb browser and conne
ct to the Reader/Writer again.
191
193
Table of Contents
Introduction
3
Terms and Conditions Agreement
4
Precautions for Safe Use
6
Precautions for Correct Use
7
Meanings of Symbols
8
Table of Contents
9
Section 1 Product Overview
11
Features
12
System Configuration
16
Application Flowchart
20
Section 2 Names and Functions of Components
27
Component Names
28
Functions
34
Using Communication Diagnostic and the RF Analyzer
56
Using Multi-Reader/Writer Operation
62
Section 3 Installation and Connections
81
Installation
82
Connections and Wiring
94
Section 4 Preparations for Communications
97
Starting the Reader/Writer
98
Setting IP Addresses
99
Setting Tag Data Links
105
Section 5 Host Communications Specifications
107
Ethernet/Ip Communications Protocol
108
Data Exchange with Ethernet/Ip
108
Ethernet/Ip Communications with the Reader/Writer
109
Tag Data Link Setting Methods
110
Memory Assignments
112
V680S Commands
114
V680S Command Details
117
Read ID
117
Read Data
118
Write Data
119
Lock
120
Data Fill
121
Rf Tag Overwrite Count Control
122
Restore Data
123
Copy Data
124
Initialize
126
Set Rf Tag Communications
127
Get Rf Tag Communications Settings
128
Set Multi-Reader/Writer Operation
129
Get Multi-Reader/Writer Settings
131
Get Model Information
133
Get Firmware Version
134
Get Operating Time
135
Measure Noise
136
Get Command Error Log
137
Get Restore Information
139
Get Multi-Reader/Writer Status
141
Reset
142
Time Charts
143
Section 6 Browser Interface
147
Browser Operation Window
148
Operation Interface
149
Section 7 Troubleshooting
169
Error Descriptions
170
Errors and Indicator Status
172
Errors and Countermeasures
175
Maintenance and Inspection
180
Troubleshooting Flowcharts
181
IF the Ethernet Connection between the Reader/Writer Is Abnormal
186
Cannot Display the Web Browser Operation Window
187
Safe Mode
193
Section 8 Appendices
195
Product Specifications
196
Data Characteristics
215
Reader/Writer Installation Precautions
234
RF Tag Installation Precautions
239
RF Tag Memory Capacities and Memory Types
285
RF Tag Memory Map
286
Chemical Resistance of the Reader/Writers and RF Tags
290
Degree of Protection
295
Differences in Address and Size Specifications between V680 and V680S Reader/Writers
297
Revision History
298
