Section 1 System Configuration
System Configuration

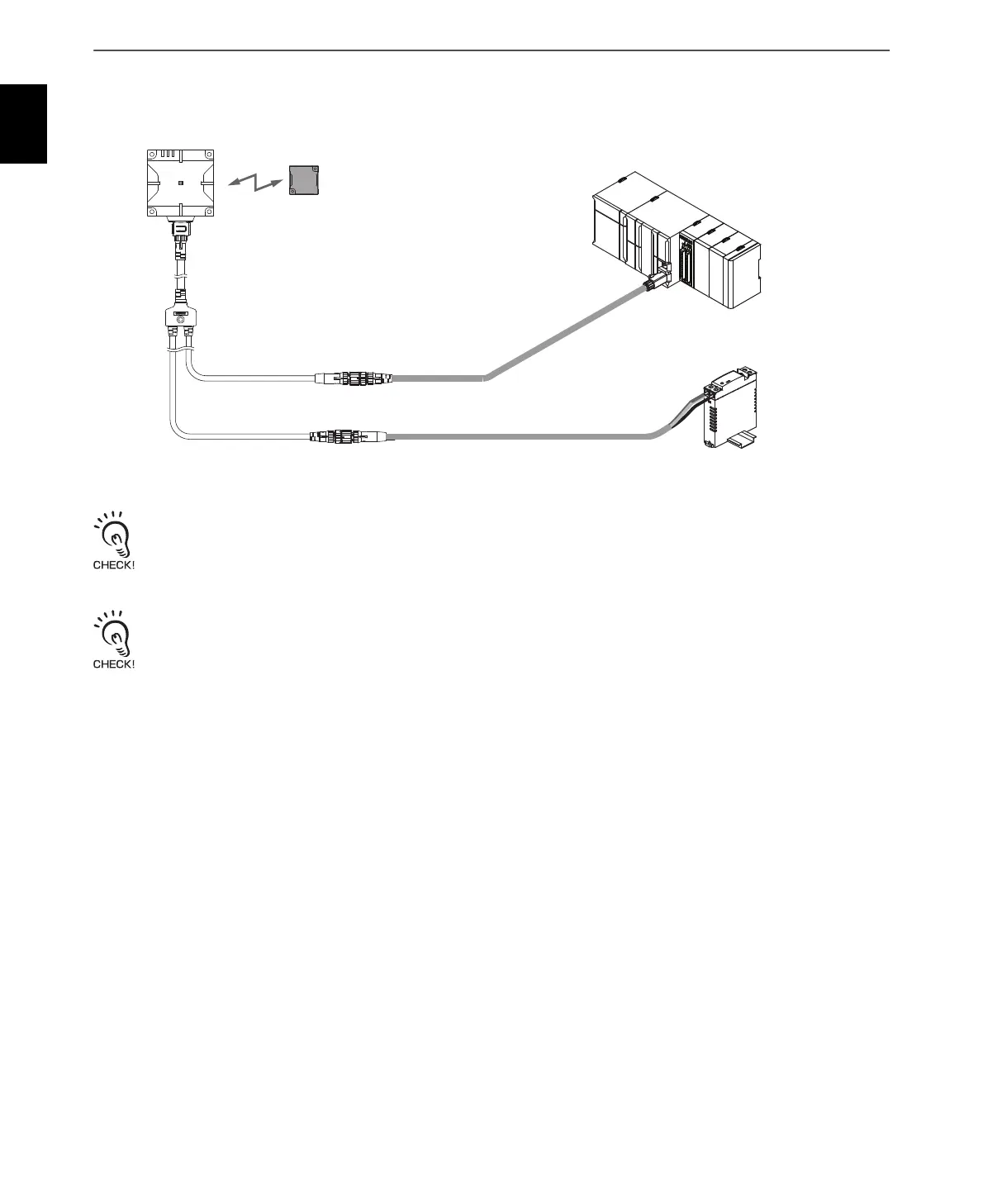

One Reader/Writer is connected to the Host device (e.g., PLC)
Connect the Ethernet Cable to a host device (e.g., Switching Hub or PLC) that supports STP and ground the host device to
100 or less.
Use a host device (PLC) that can set connections as the originator (i.e., the side that requests opening a communications line for
tag data links).
Reader/Writer
(V680S-HMD6
-EIP)
Power Cable
(Recommended: XS5F-D42
-
80-F from OMRON)
Host device
(e.g., PLC)
24-VDC power supply
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42
-
MC-K from OMRON)
RF Tag
(V680 Series and V680S Series)
To Next Page
