Section 1 System Configuration
The plural Reader/Writer’s are connected to the Host device (e.g., PLC)
Connect the Ethernet Cable to a host device (e.g., Switching Hub or PLC) that supports STP and ground the host device to
100 or less.
Always use a Switching Hub on any network where tag data links are used.
If you use a repeater hub on a network on which EtherNet/IP tag data links (cyclic communications) are used, the network
communications load will increase causing frequent collisions and unstable communications.
Use a host device (PLC) that can set connections as the originator (i.e., the side that requests opening a communications line for
tag data links).

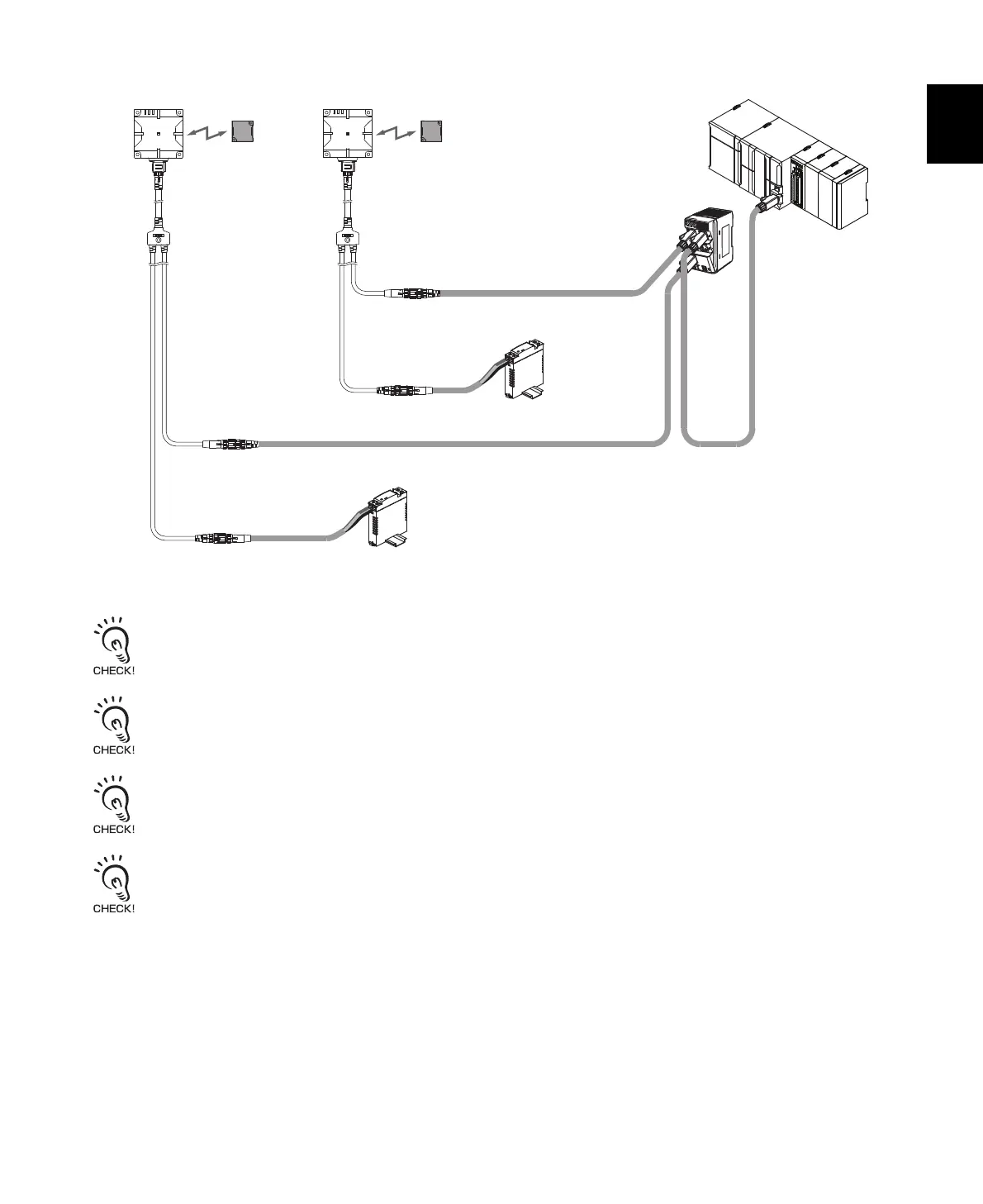

Reader/Writer
(V680S-HMD6
-EIP)
Power Cable
(Recommended: XS5F-D42
-
80-F from OMRON)
Ethernet Cable
24-VDC power supply
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42
-
MC-K from OMRON)
RF Tag
(V680 Series and V680S Series)
Reader/Writer
(V680S-HMD6
-EIP)
RF Tag
(V680 Series and V680S Series)
Power Cable
(Recommended: XS5F-D42
-
80-F from OMRON)
24-VDC power supply
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42
-
MC-K from OMRON)
Host device
(e.g., PLC)
To Next Page
