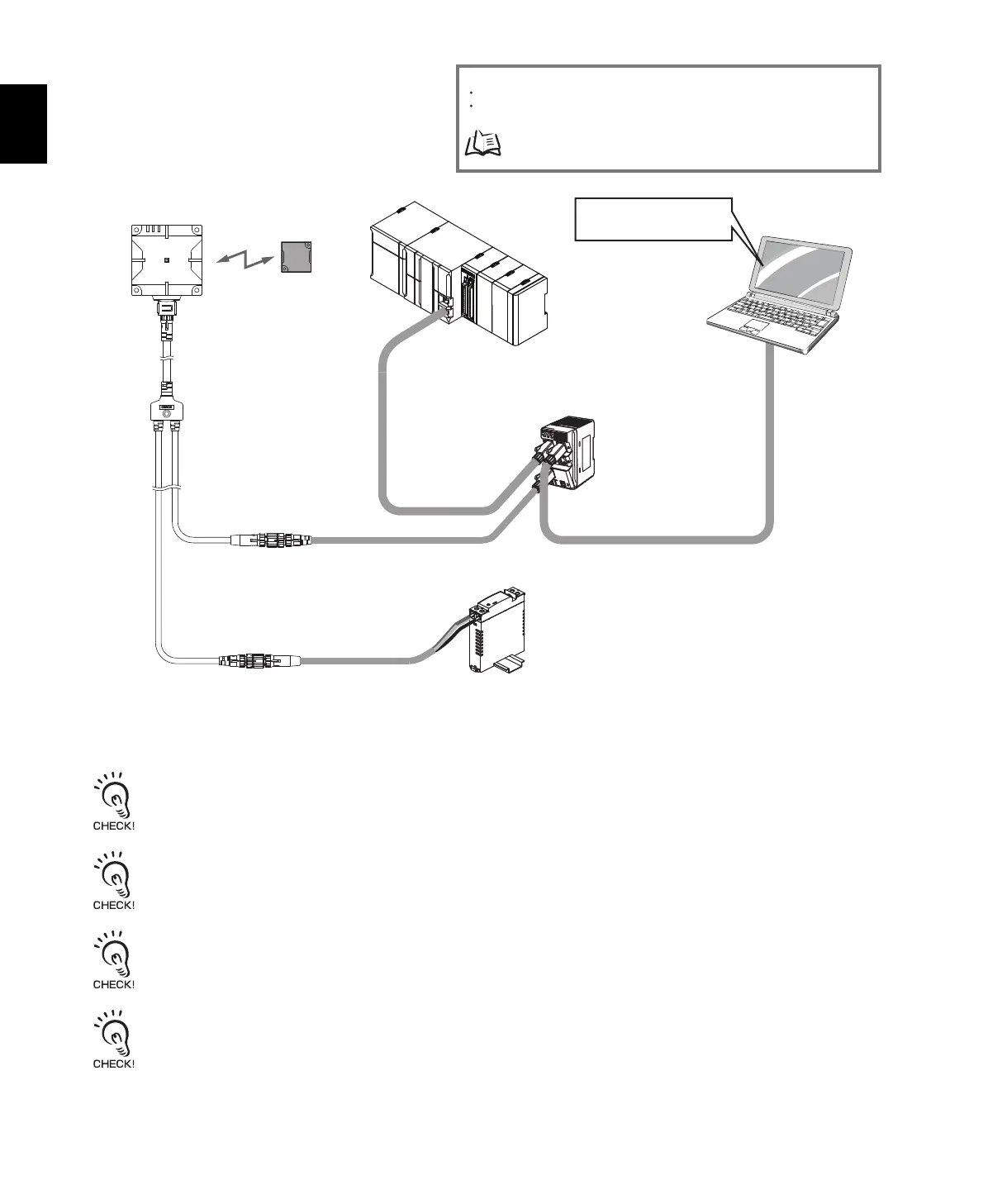

Section 1 System Configuration
The computer is connected to monitor the results of communications diagnostics
Connect the Ethernet Cable to a host device (e.g., Switching Hub or PLC) that supports STP and ground the host device to
100 or less.
Always use a Switching Hub on any network where tag data links are used.
If you use a repeater hub on a network on which EtherNet/IP tag data links (cyclic communications) are used, the network
communications load will increase causing frequent collisions and unstable communications.
Use a host device (PLC) that can set connections as the originator (i.e., the side that requests opening a communications line for
tag data links).
Reader/Writer
(V680S-HMD6
-EIP)
Power Cable
(Recommended: XS5F-D42
-
80-F from OMRON)
Host device
(e.g., PLC)
Ethernet Cable
Switching Hub
(Recommended: W4S1-05C Switching Hub
from OMRON)
24-VDC power supply
Computer
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42
-
MC-K from OMRON)
RF Tag
(V680 Series and V680S Series)
The system requirements to use the Web browser are as follows:
䚷㻌Internet Explorer 7 or higher running on Windows XP or Windows 7
䚷㻌JRE Version 8.0 or higher
Computer to monitor the
results of communications
diagnostics
For details, refer to Section 6 Browser Interface.
p.145
