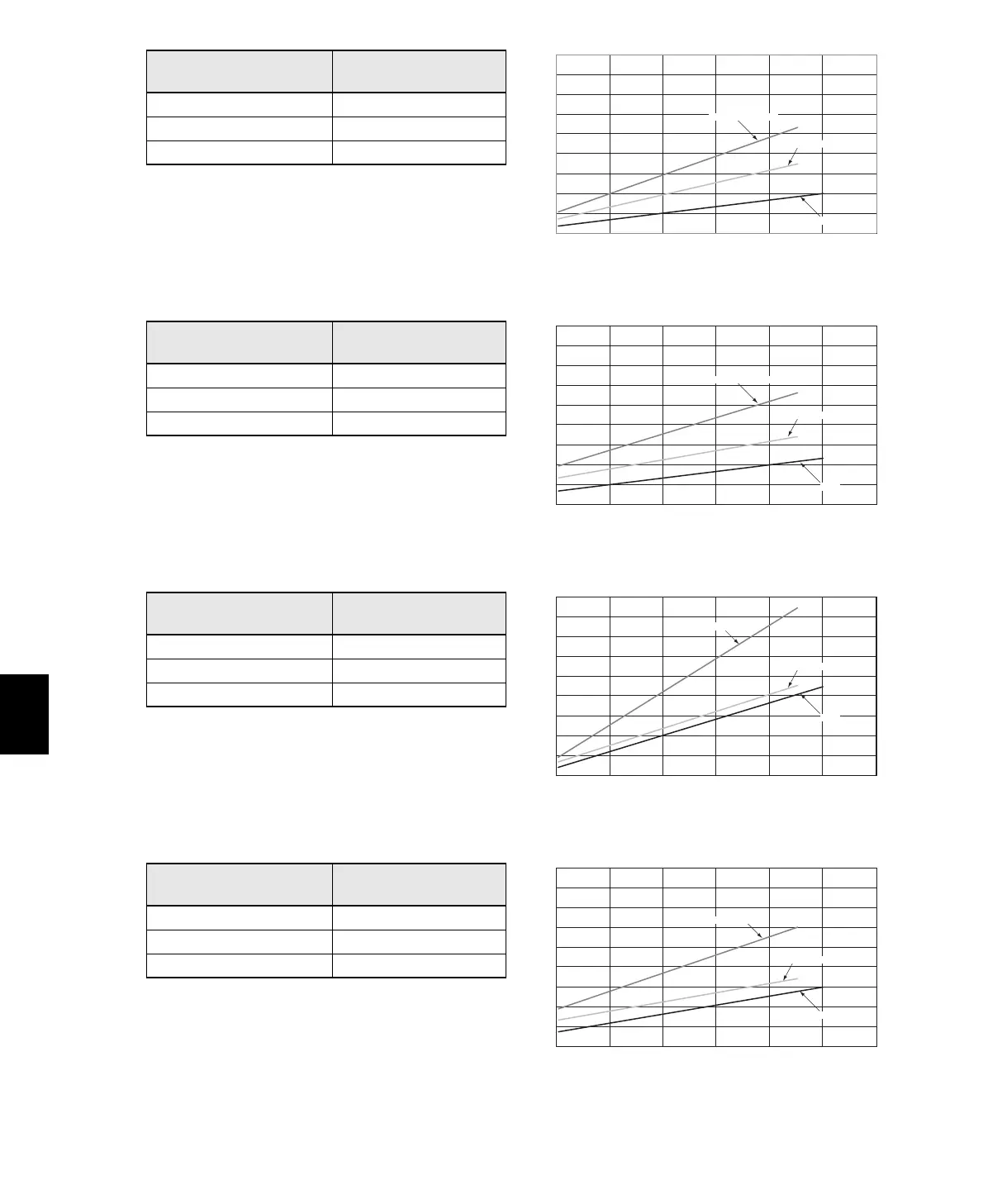

Section 8 Data Characteristics
V680S-HMD6-EIP and V680S-D2KF6
(Communications speed setting: High speed)
V680S-HMD6-EIP and V680S-D8KF6
(Communications speed setting: High speed)
V680S-HMD6-EIP and V680S-D2KF6
(Communications speed setting: Normal speed)
V680S-HMD6-EIP and V680S-D8KF6
(Communications speed setting: Normal speed)
Command Communications time (ms)
N: No. of bytes processed
Read T= 0.4N + 17.4
Write (with verification) T= 1.0N + 51.9
Write (without verification) T= 0.7N + 35.2
Command Communications time (ms)
N: No. of bytes processed
Read T= 0.4N + 33.0
Write (with verification) T= 0.9N + 95.1
Write (without verification) T= 0.5N + 65.8
Command Communications time (ms)
N: No. of bytes processed
Read T= 0.9N + 18.7
Write (with verification) T= 1.7N + 42.1
Write (without verification) T= 0.9N + 32.0
Command Communications time (ms)
N: No. of bytes processed
Read T= 0.5N + 36.1
Write (with verification) T= 1.0N + 93.0
Write (without verification) T= 0.5N + 65.8
0
0 50 100 150 200 250 300
No. of bytes (byte)
Communications time (ms)
50
100
150
200
250
300
350
450
400
Write (with verification)
Write (without verification)
Read
0
0 50 100 150 200 250 300
No. of bytes (byte)
Communications time (ms)
50
100
150
200
250
300
350
450
400
Write (with verification)
Write (without verification)
Read
Write (with verification)
Write (without verification)
Read
0
0 50 100 150 200 250 300
No. of bytes (byte)
Communications time (ms)
50
100
150
200
250
300
350
450
400
Write (with verification)
Write (without verification)
Read
0
0 50 100 150 200 250 300
No. of bytes (byte)
Communications time (ms)
50
100
150
200
250
300
350
450
400
